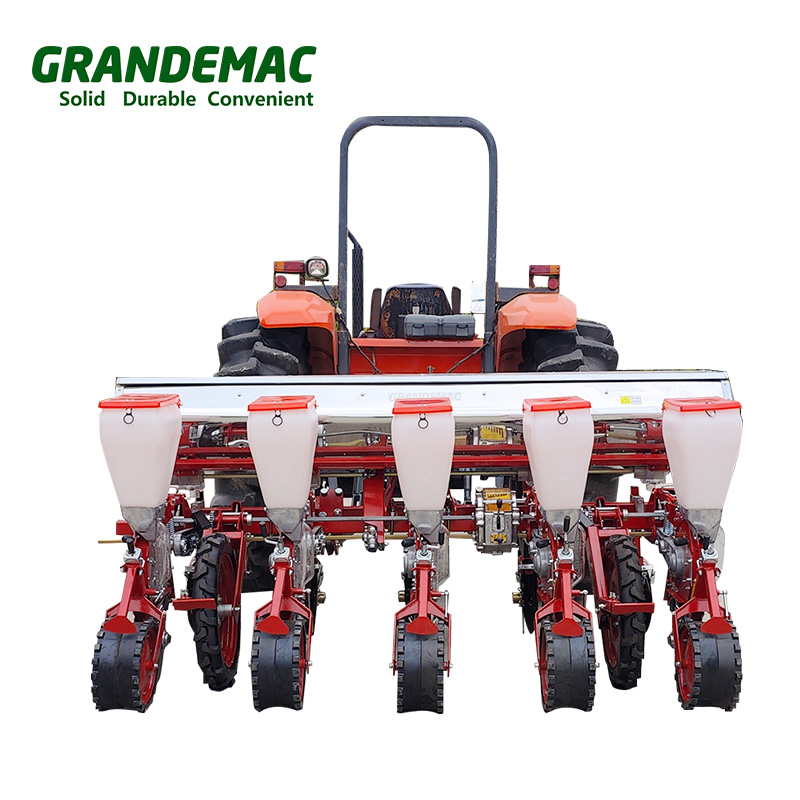

GLD profiling corn planter is matched with tractor,mainly used for planting precise single seed corn on the tilled farmland.
And it can finish opening,fertilizing,sowing,furrowing and pressing during one operation.
We manufacture 2-6 rowas this type machine.
| Type | gld-3 | gld-4 | gld-5 | gld-6 | gld-8 |
| structural style | Mechanical, suspended | ||||
| Supporting power (kw) | 18.3～36.7 | 22.1～55.8 | 36.8～110.3 | 44.1～110.3 | 73.5～133 |
| outline dimension (mm) | 1595×1590×1200 | 1560×2120×1210 | 1650×2750×1220 | 1680×3600×1230 | 1700×4800×1165 |
| Operating speed range (m/s) | 0.56～1.39 | 0.56～1.39 | 0.56～1.39 | 0.56～1.39 | 0.56～1.39 |
| Productivity (hm2/h) | 0.3～0.45 | 0.4～0.6 | 0.5～0.75 | 0.6～0.88 | 0.8～1.15 |
| Line spacing (cm) | 50～62 | 50～62 | 50～62 | 50～62 | 50～62 |
| Number of working rows (rows) | 3 | 4 | 5 | 6 | 8 |
| Working width (Cm) | 150～126 | 200～248 | 250～310 | 300～372 | 400～496 |
| Seed metering device type | Spoon wheel type, metal material | ||||
| Number of seeders | 3 | 4 | 5 | 6 | 8 |
| Type of fertilizer discharger | Outer groove wheel type, non-metallic material | ||||
| Number of fertilizer dischargers | 3 | 4 | 5 | 6 | 8 |
| Type of planting trencher | Core share type | ||||
| Number of planting trenchers | 3 | 4 | 5 | 6 | 8 |
| Depth adjustment range (mm) | 30～50 | 30～50 | 30～50 | 30～50 | 30～50 |
| Type of fertilizer drainage ditch opener | Core share type | ||||
| Number of fertilizer discharge furrows | 3 | 4 | 5 | 6 | 8 |
| Depth adjustment range (mm) | 50-80 | 50-80 | 50-80 | 50-80 | 50-80 |
| Seed/fertilizer box volume (L) | 8.5 × 3/195 | 8.5×4/260 | 18×5/325 | 18×6/390 | 18×8/520 |
| Displacement adjustment method | seed: gearbox/fertilizer: threaded type | ||||
| Transmission mode of sowing part | Shaft+chain drive | ||||
| Ground wheel type | Rubber wheel | ||||
| Ground wheel diameter (mm) | 600 | 600 | 600 | 660 | 660 |
| Adjustment range of ground wheel height | 0～100 | 0～100 | 0～100 | 0～120 | 0～120 |
| Ballast type | Rubber wheel | ||||
