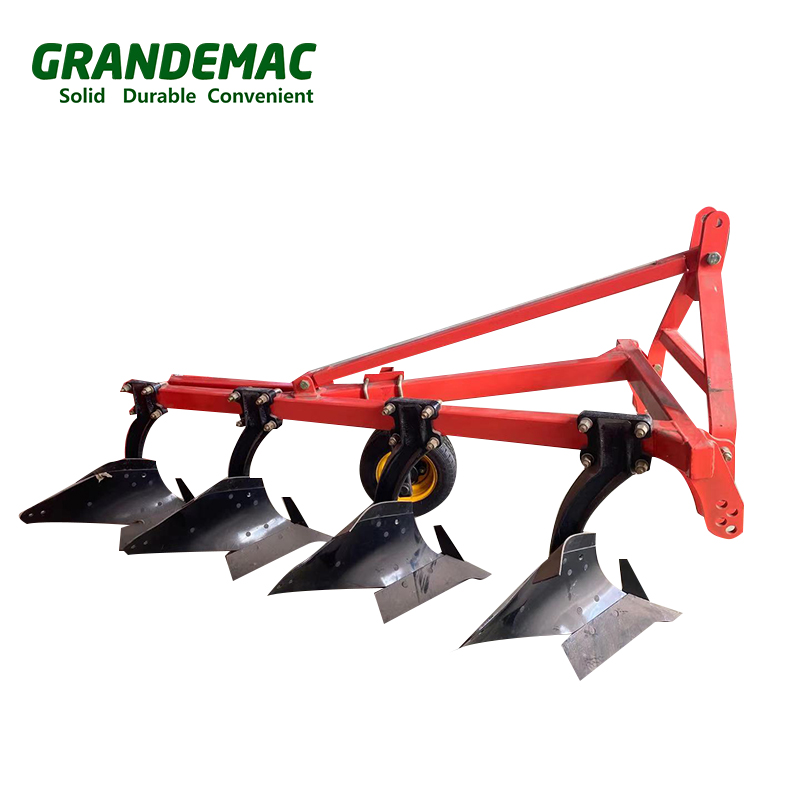

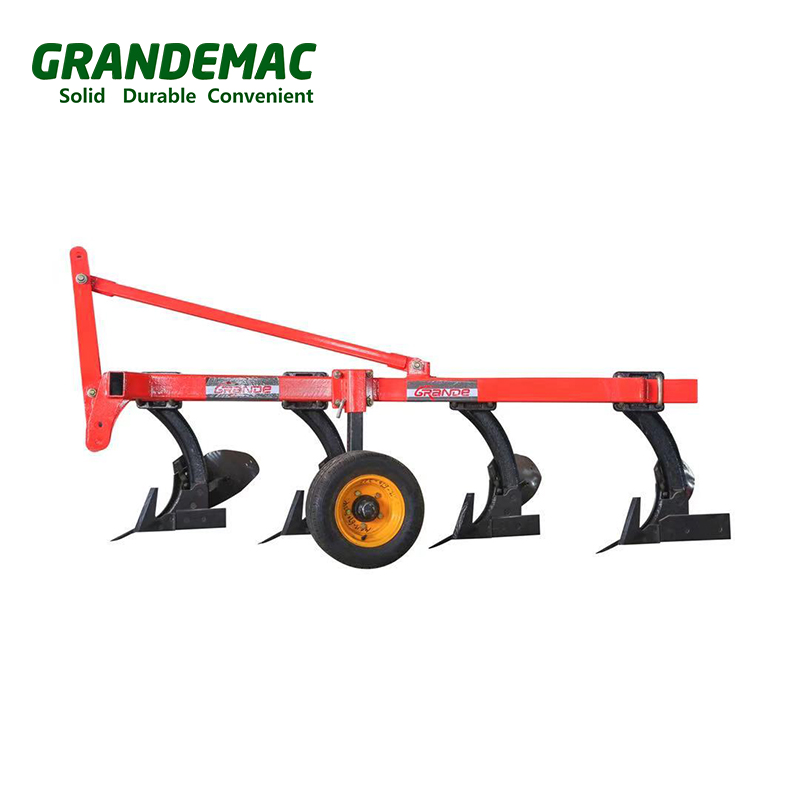

The water field stubble eradicator plow is mainly used for deep cultivation and stubble eradication in both waterfields and dry fields after harvesting. This machinery adopts a three-point suspended traction operation mode and features a specially designed angle for the plowshare, which reduces the cultivation resistance, consumes less power, and achieves significant plowing and covering effects. The high-strength material of the plowshare has excellent resistance to wear and tear, ensuring durability and a long service life. With hydraulic operation and convenient adjustment, it is an ideal tool for burying and eradicating stubble.
| Model | KJ340 | KJ440 |
| No.of bottom | 3 | 4（3+1） |
| Working width per bottom | 40cm | 40cm |
| Plough beam high | 75cm | 75cm |
| Bottom to bottom size | 86cm | 86cm |
| Tillage depth | 20-30cm | 20-30cm |
| Plough beam specification | 100*100*10mm | 100*100*8mm（Depth limiting wheel） |
| Machine working width | 120cm | 160cm |
| N.weight | 468kg | 620kg |
| Power required | 70-90hp | 90-120hp |
The water field stubble eradicator plow is mainly used for deep cultivation and stubble eradication in both waterfields and dry fields after harvesting. This machinery adopts a three-point suspended traction operation mode and features a specially designed angle for the plowshare, which reduces the cultivation resistance, consumes less power, and achieves significant plowing and covering effects. The high-strength material of the plowshare has excellent resistance to wear and tear, ensuring durability and a long service life. With hydraulic operation and convenient adjustment, it is an ideal tool for burying and eradicating stubble.
| Model | KJ340 | KJ440 |
| No.of bottom | 3 | 4（3+1） |
| Working width per bottom | 40cm | 40cm |
| Plough beam high | 75cm | 75cm |
| Bottom to bottom size | 86cm | 86cm |
| Tillage depth | 20-30cm | 20-30cm |
| Plough beam specification | 100*100*10mm | 100*100*8mm（Depth limiting wheel） |
| Machine working width | 120cm | 160cm |
| N.weight | 468kg | 620kg |
| Power required | 70-90hp | 90-120hp |
