Product Advantage
High efficiency rotary tillage: Adopting Kubota's advanced rotary tillage technology, it can effectively crush and loosen soil, improve tillage quality, and is suitable for various soil types.
Durable and sturdy: The body structure has been optimized, and the blade shaft and blade materials are excellent, wear-resistant, and extend the service life.
Fine homework: equipped with rotary tillage and ridge raising functions, suitable for the planting needs of different crops, improving the accuracy of homework.
Strong power: can be matched with tractors of different horsepower, stable power transmission, and improve work efficiency.
Easy to operate: Designed ergonomically, easy to adjust and maintain, reduces operational difficulty, and improves job comfort.
Strong adaptability: Suitable for various agricultural environments such as paddy fields, dry land, orchards, etc., meeting diverse farming needs.
Technical Parameters

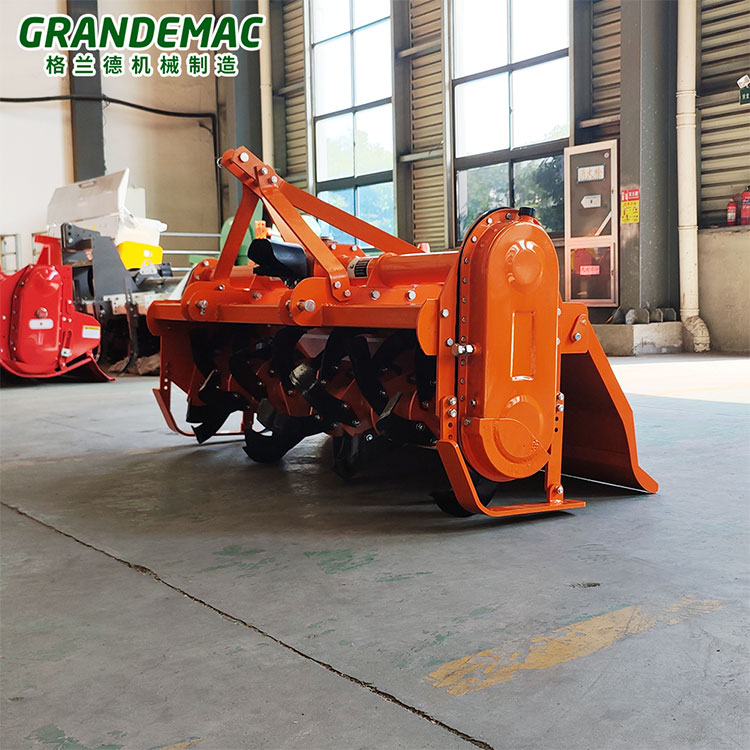

| Model | RX165 | RX175 | RX183 | RX193 | RX220 | |
| Gear type | Spiral bevel gear | Spiral bevel gear | Spiral bevel gear | Spiral bevel gear | Spiral bevel gear | |
| Dimension | Total length (mm) | 1730 | 1850 | 1930 | 2150 | 2350 |
| Total width (mm) | 690 | 800 | 870 | 870 | 904 | |
| Total height(mm) | 1000 | 1050 | 1060 | 1060 | 1191 | |
| Weight | KG | 260 | 298 | 335 | 370 | 443 |
| Width of Tilling | mm | 1570 | 1670 | 1750 | 1870 | 2130 |
| Number of blades | lefr and right | 24+24 | 26+26 | 27+27 | 30+30 | 33+33 |
| PTO shaft | RPM | 540 | 540 | 540 | 540 | 540 |
Product Operate Guide
1. Connect the tractor
Ensure that the power output shaft (PTO) of the tractor matches the transmission shaft of the rotary tiller, and install and secure the universal joint.
Connect the three-point suspension device, adjust the suspension height to maintain an appropriate angle between the rotary tiller and the ground.
Check if the hydraulic system is functioning properly to ensure smooth lifting and lowering of the rotary tiller.
2. Pre operation inspection
Ensure that the blade shaft and blades are not damaged or loose, and replace or tighten them if necessary.
Add lubricating oil, check the lubrication condition of each component, and ensure that the oil level in the gearbox is appropriate.
Ensure that the rotary tiller is securely connected to the tractor and that the safety cover is intact.
3. Homework operations
Start the tractor, run the power output shaft (PTO) at low speed, and test whether the rotary tiller is running normally.
Gradually lower the rotary tiller so that its blades touch the ground, then slowly advance and begin rotary tillage operation.
Maintain a uniform forward speed and avoid sudden acceleration or sharp turns to prevent overloading or damage to the blade shaft.
Adjust the depth of work according to soil conditions, usually between 12-20 cm.
4. Post homework maintenance
Turn off the PTO and lift the rotary tiller, ensuring that the blades are off the ground before moving.
Clean up the soil and weeds on the equipment to prevent them from affecting the next use.
Check the wear of the blade and replace it if necessary.
Regularly check the lubricating oil condition of the gearbox and transmission shaft, and add or replace it in a timely manner.
