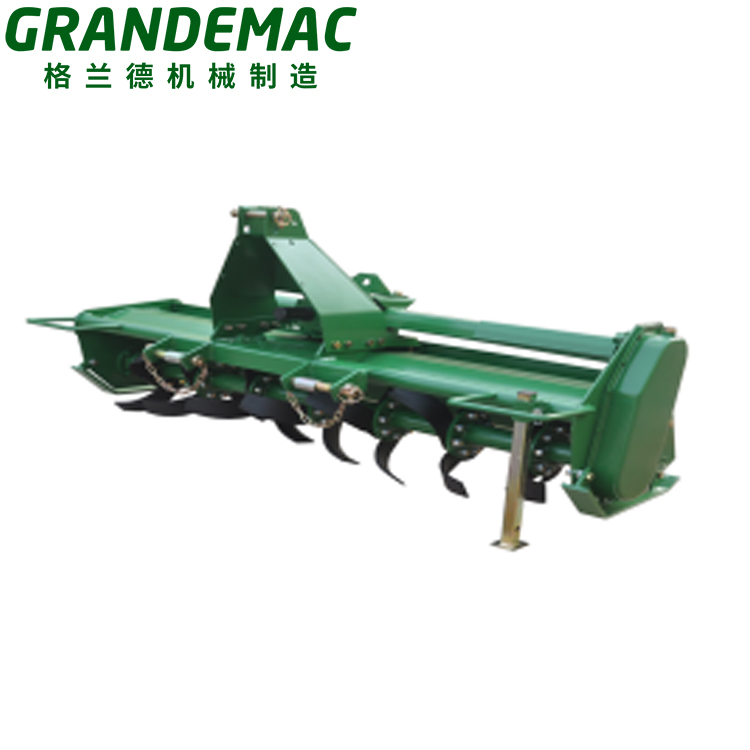

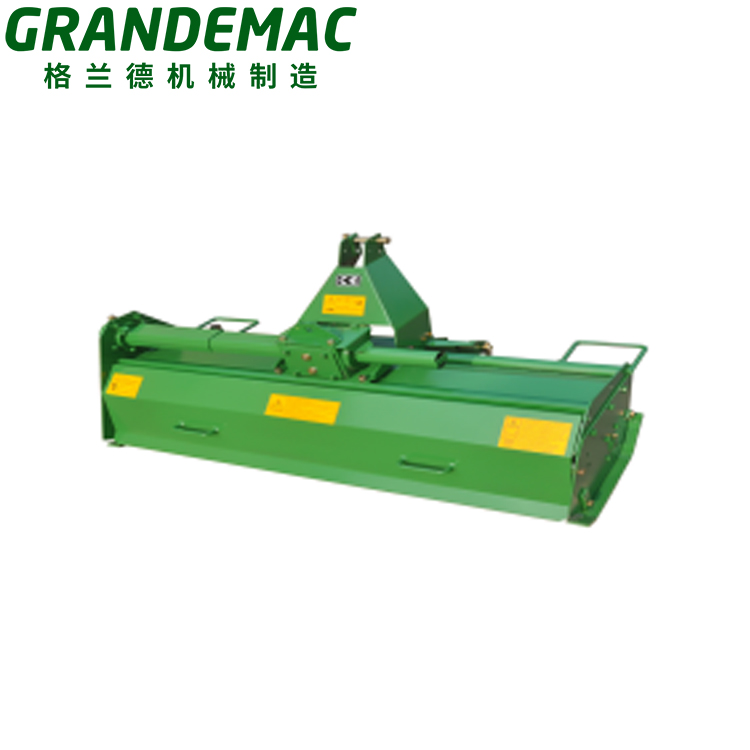

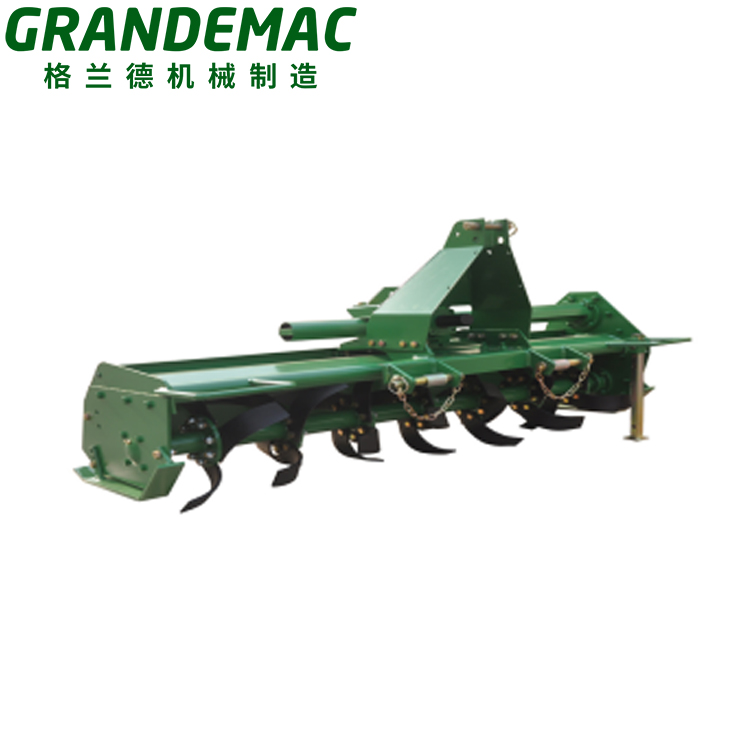

TLM105
GRANDEMAC
| Quantity: | |
|---|---|
Product Advantage
Basic farming function
1. Soil fragmentation and mixing
The rotary tiller uses high-speed rotating blades to chop, flip, and mix the soil, achieving the ideal fine state of the cultivated layer soil
2. Clearing of the plow layer
Rotary tiller can effectively level the soil surface, eliminate unevenness in the field, and form a uniform tillage layer
Soil improvement effect
Break the plow bottom layer
The cultivation blade of the rotary tiller can break through the deep soil layer of 10-15cm, effectively alleviating the soil compaction problem caused by long-term cultivation. Continuous use for 3 years can increase soil organic matter content by 0.8% -1.2%, significantly improving soil structure.
Straw returning treatment
Modern rotary tillers are equipped with a special spiral blade arrangement, which can effectively handle residual crop straw in the field. In plots with 30% corn straw residue, the amount of straw residue can be controlled below 5%, achieving a dual effect of straw returning and soil improvement.
Technical Parameters
| Model | Working | Blades shaft speed | Number of blades | Tilling depth | Fitted power | Net weight | Gross weight |
| width | (rpm) | (cm) | (hp) | (kg) | (kg) | ||
| (cm) | |||||||
| TLM105 | 105 | 210 | 20 | 8-12 | 22 | 148 | 182 |
| TLM115 | 115 | 210 | 24 | 8-12 | 22-25 | 158 | 192 |
| TLM125 | 125 | 210 | 28 | 8-12 | 25-30 | 168 | 202 |
| TLM135 | 135 | 210 | 28 | 8-12 | 30-35 | 178 | 212 |
Product Uses
1.Wheat field homework
2.corn field cultivation
3.rice field preparation
4.Cotton field cultivation
5.peanut field preparation
6.vegetable planting
Product Operate Guide
1.Preparation and adjustment before homework:
Horizontal adjustment: Lower the rotary tiller to bring the blade tip close to the ground, and check if the height of the blade tips on both sides above the ground is consistent. Correct the horizontal state by adjusting the right suspension rod to ensure consistent plowing depth on both sides
Front and rear adjustment: when the rotary tiller is lowered to the required tillage depth, observe whether the transmission shaft is horizontal. If necessary, use the top link to adjust to ensure that the transmission shaft is in good working condition
Safety inspection: Confirm that the blade installation direction is correct, the fixing bolts and universal joint locking pins are secure, and lubricating oil has been added to each lubrication point. Check the work environment to ensure there are no bricks, stones, or other debris
2. Starting and homework operations:
Engage the power output shaft in the raised state of the rotary tiller and shift into working gear
Slowly release the clutch pedal and gradually increase the throttle
After the rotational speed reaches the standard, slowly lower the rotary tiller through the hydraulic lifting handle
After the blade enters the soil, further increase the throttle to the normal plowing depth
It is strictly prohibited to combine the power or sharply lower the rotary tiller after the blade enters the soil, in order to avoid bending or breaking the blade
