TOP MOWER--TM SERIES
GRANDEMAC
| Quantity: | |
|---|---|

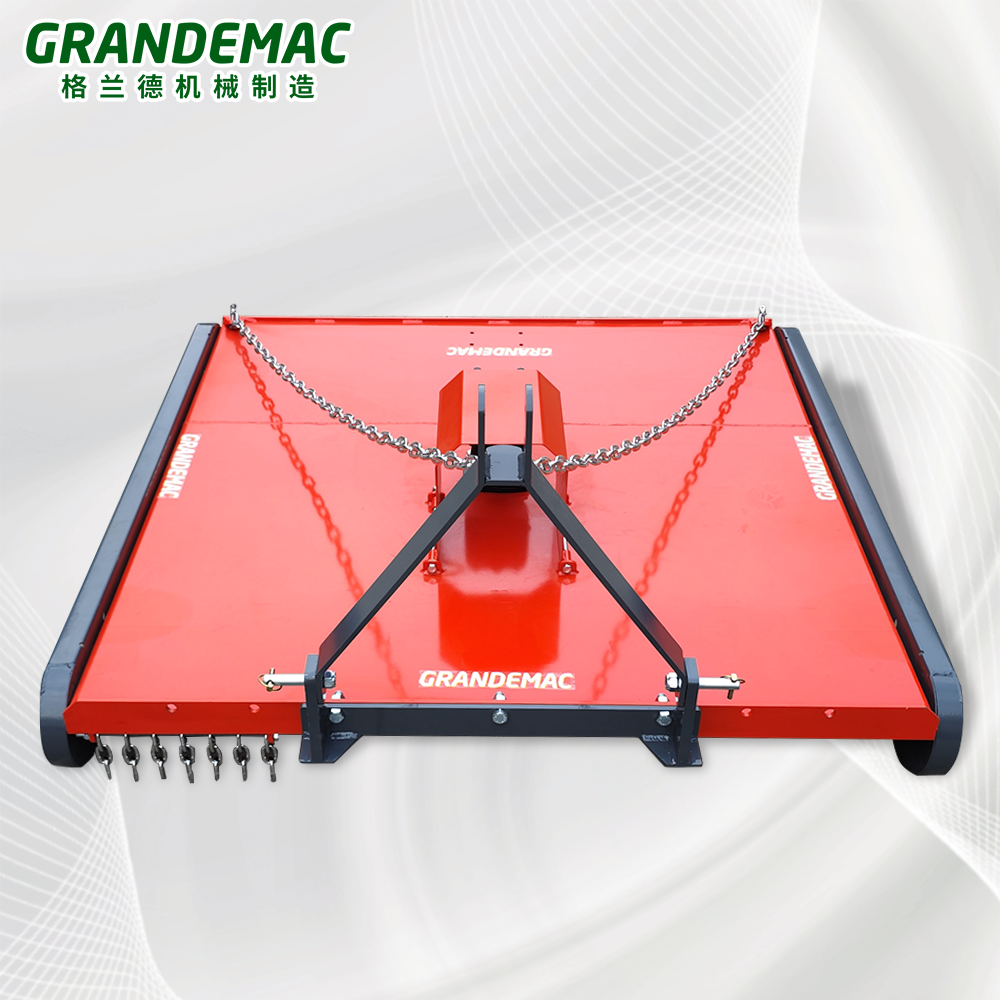

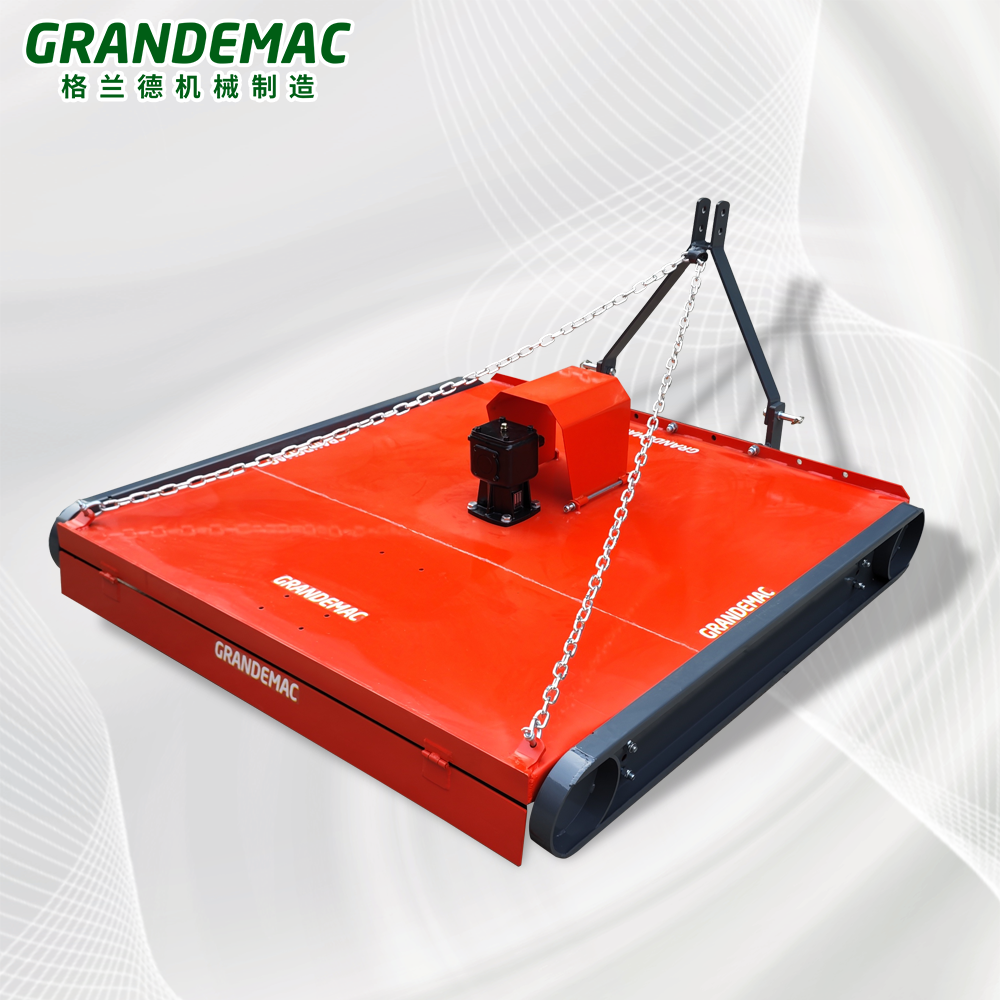

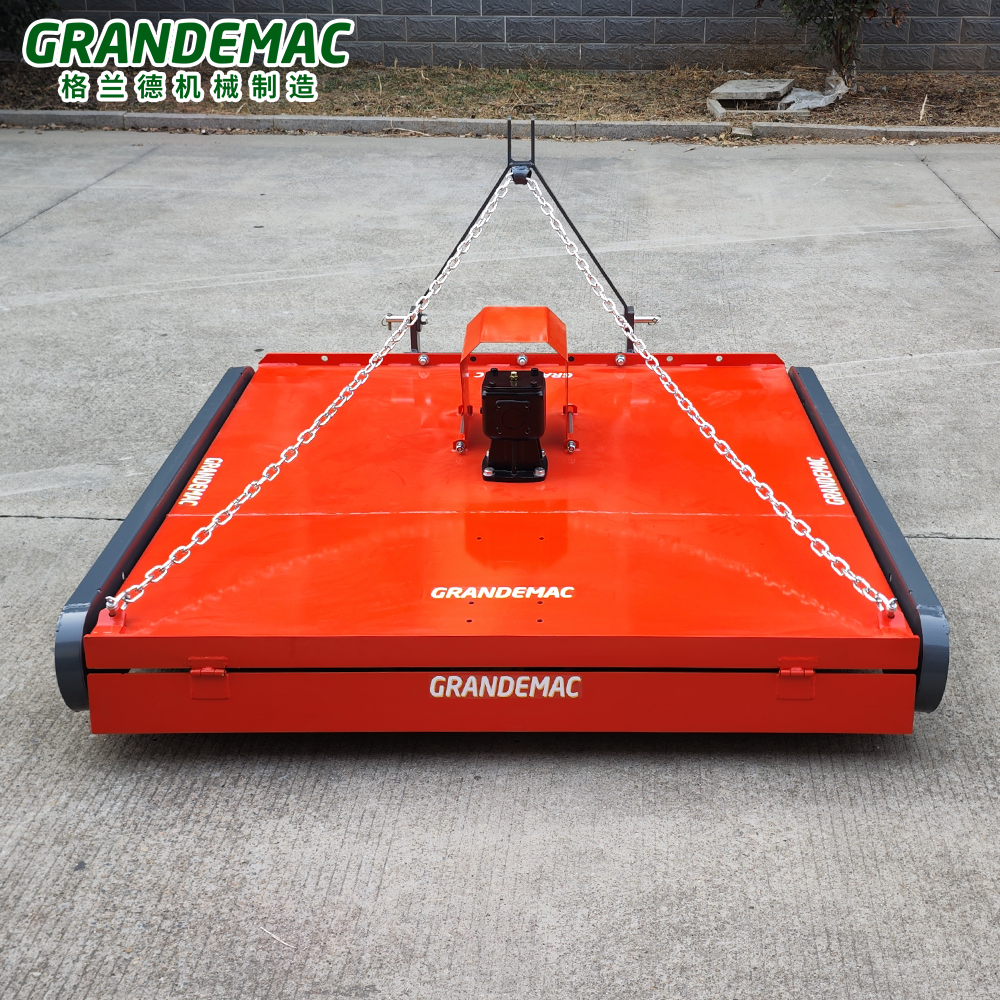

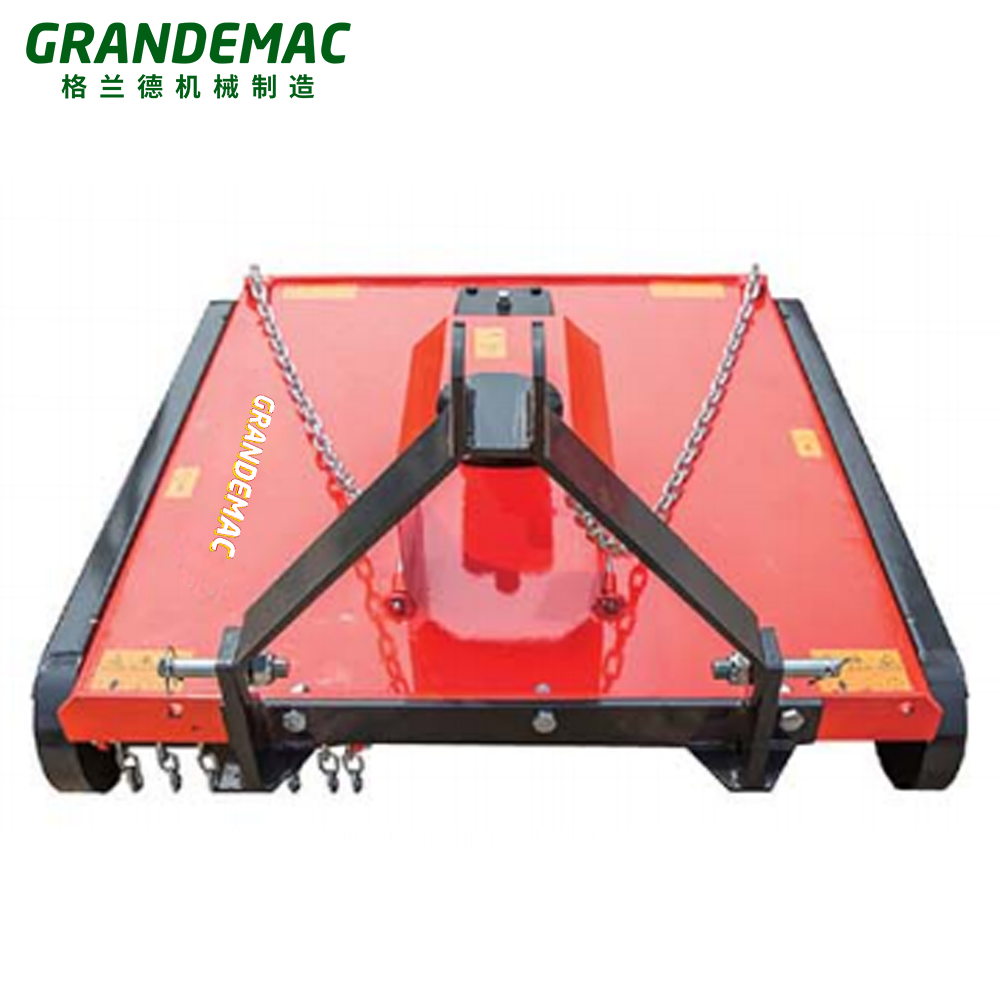

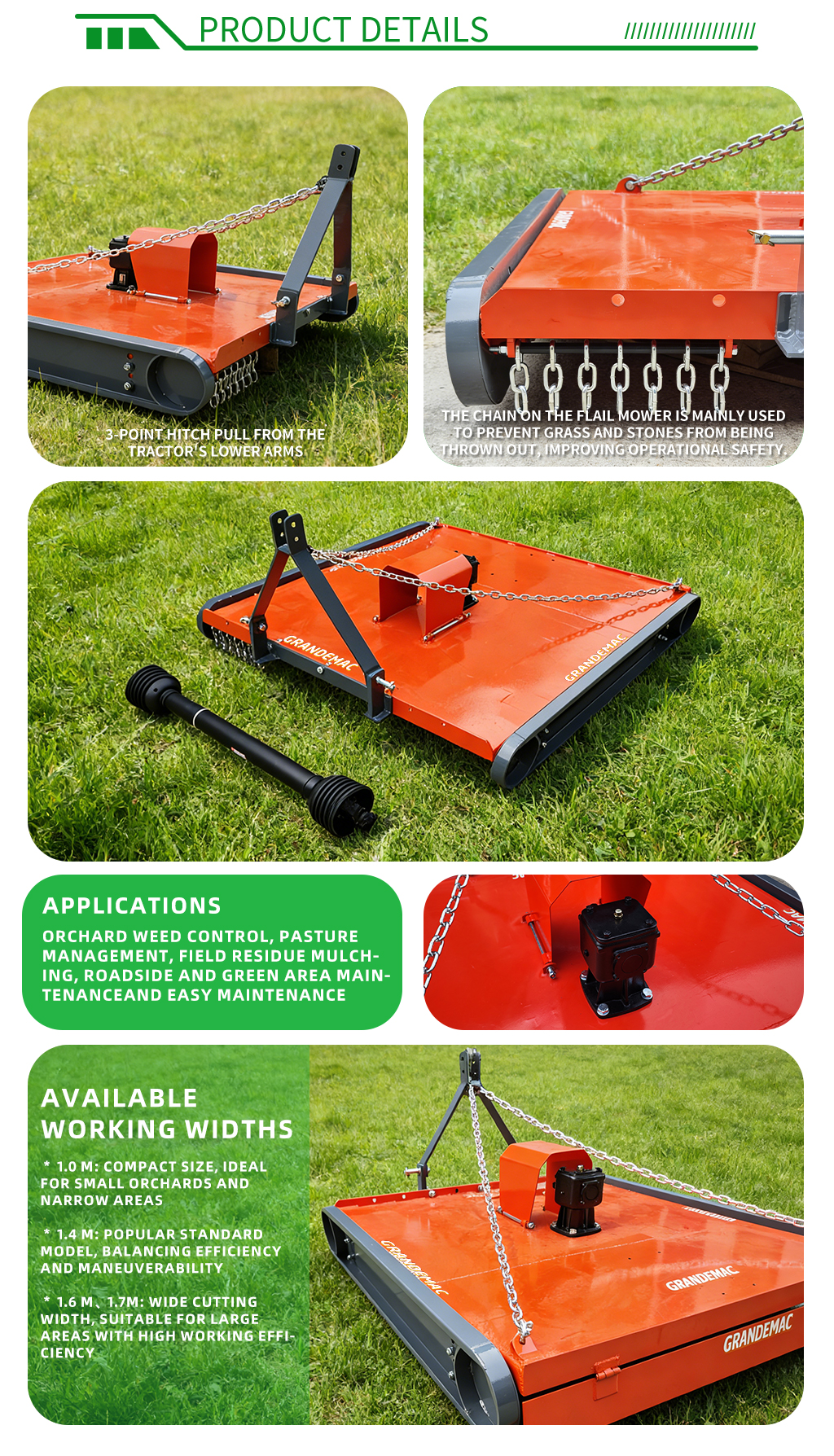

TOP MOWER – TM SeriesThe TM Series Rotary Mower is a durable and cost-effective rear-mounted grass cutter, designed for pasture maintenance, farmland cleaning, and general grass cutting operations. Powered by a tractor PTO, it delivers stable performance with low maintenance requirements.
Key Features

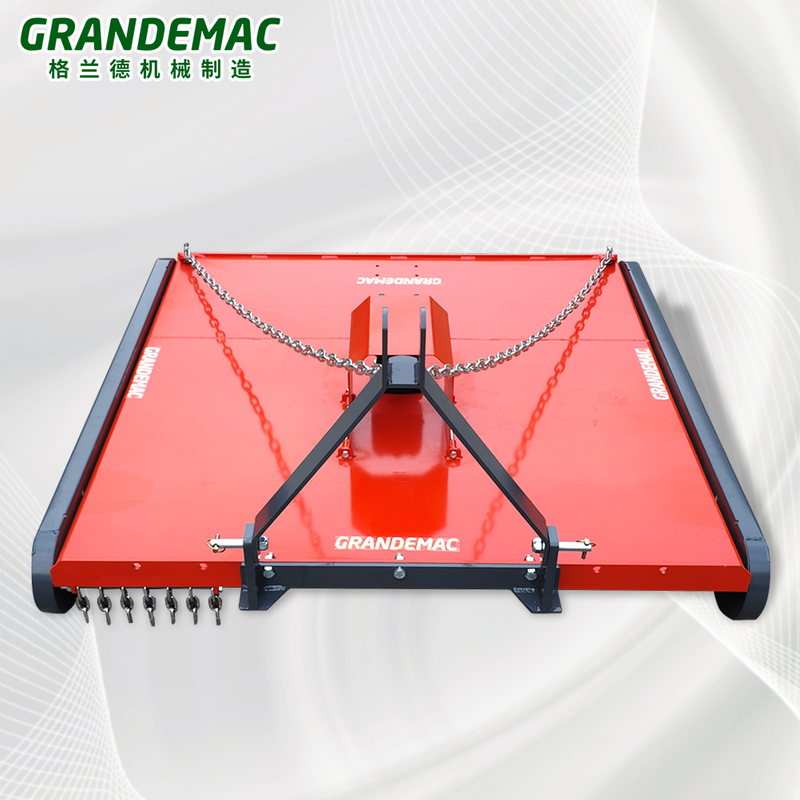

3-Point Hitch (Category I)
Easy attachment to most compact and utility tractors.

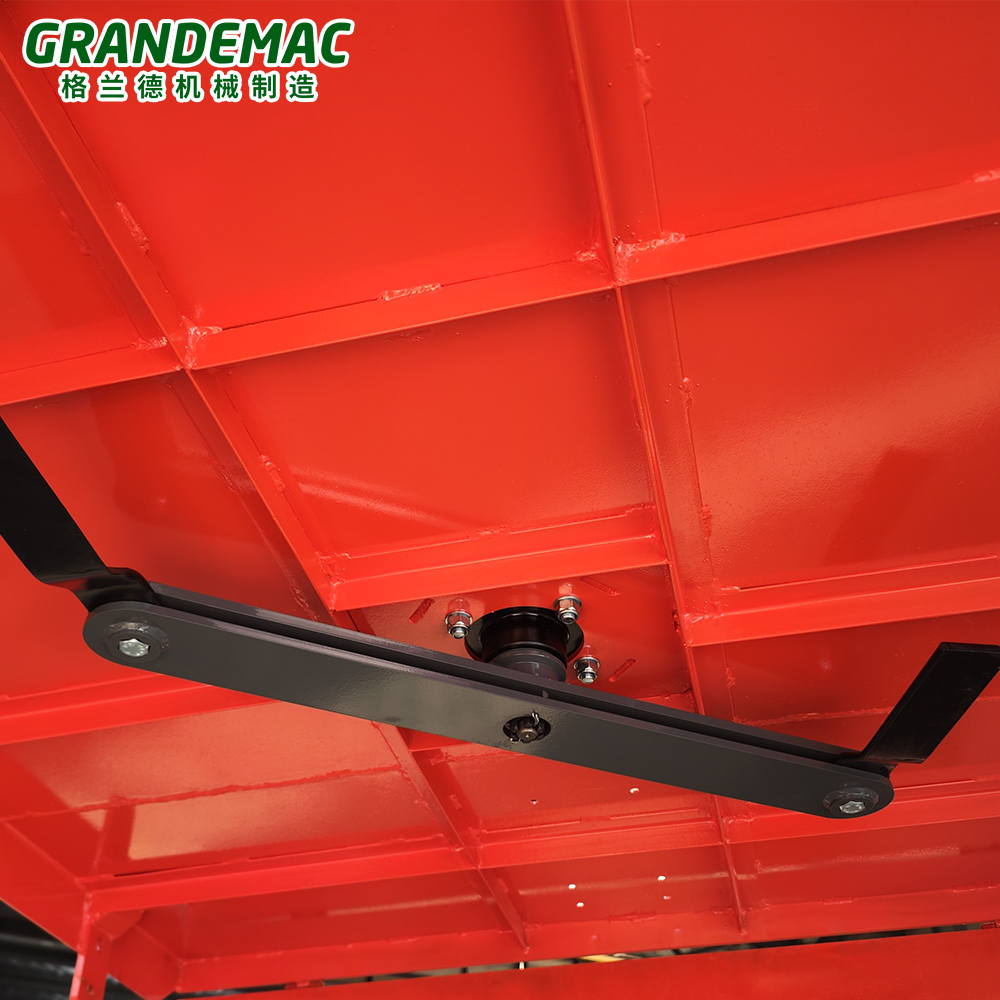

Dual Blade Cutting System
Equipped with 2 heavy-duty rotary blades for smooth and efficient cutting.
Standard 540 RPM PTO Drive
Compatible with international tractor standards.
Heavy-Duty Steel Deck
Reinforced steel housing ensures durability and long service life.

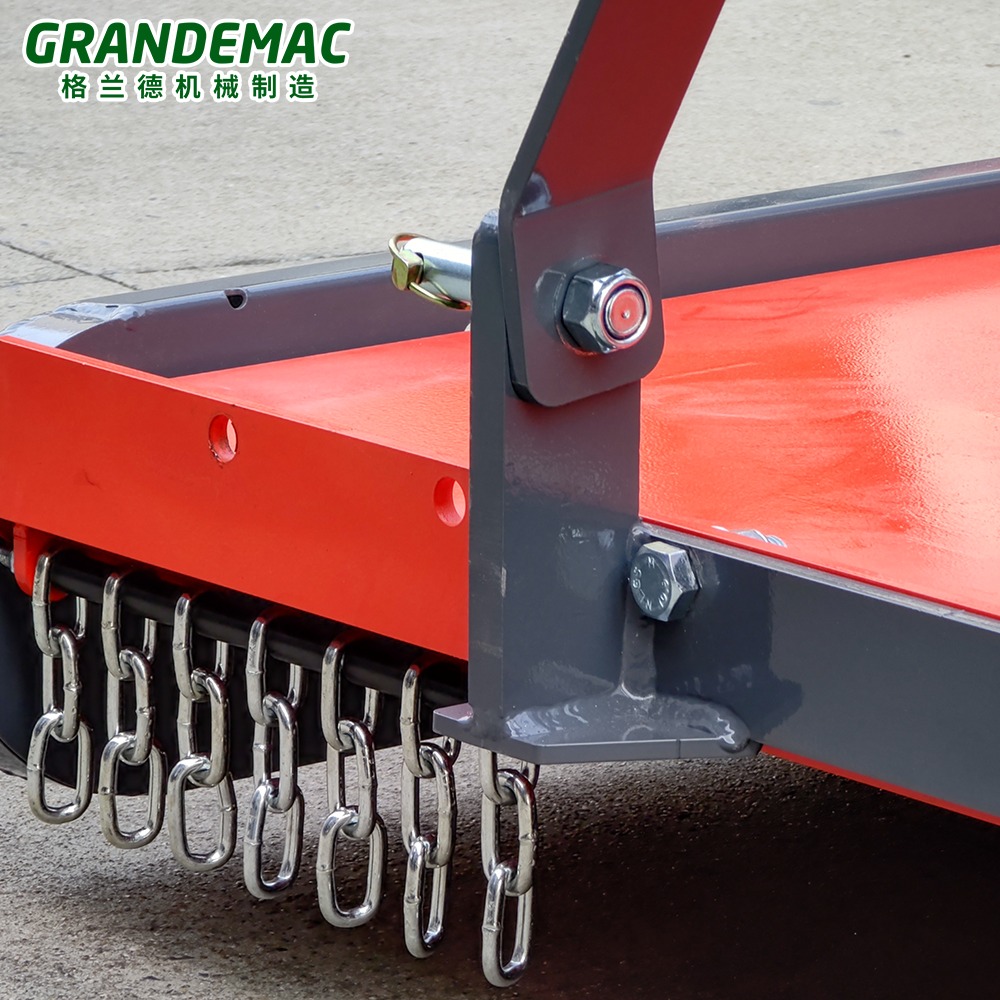

Safety Chain Protection
Front and rear chains reduce debris throw, improving operator safety.
Simple Structure, Low Maintenance
Ideal for farms requiring reliable, long-term operation.
Technical Parameters
| Model | sx145 |
| For tractor power | 50hp |
| Blade rotation speed | 900 |
| PTO | 540 |
| Gear ratio | 1:1:7 |
| Dimension | 144.5*155.5*89.5cm |
| Weight | 310kg |
Pasture and grassland maintenance
Farm and field edge cleaning
Orchard and light brush cutting
Rural roadsides and open land
Wide model range for 18–50 HP tractors
Strong structure, reliable performance
Competitive price for bulk export
Suitable for Europe, South America, Middle East, and Africa
CE certified, meeting EU machinery safety standards
Product Operate Guide
1. Connect tractor
Connect the lawn mower to the rear power output shaft (PTO) of the tractor through a three-point suspension
system, ensuring a secure connection and safety pin insertion.
2. CHECK DEVICE STATUS
Check if the blade is loose or worn.

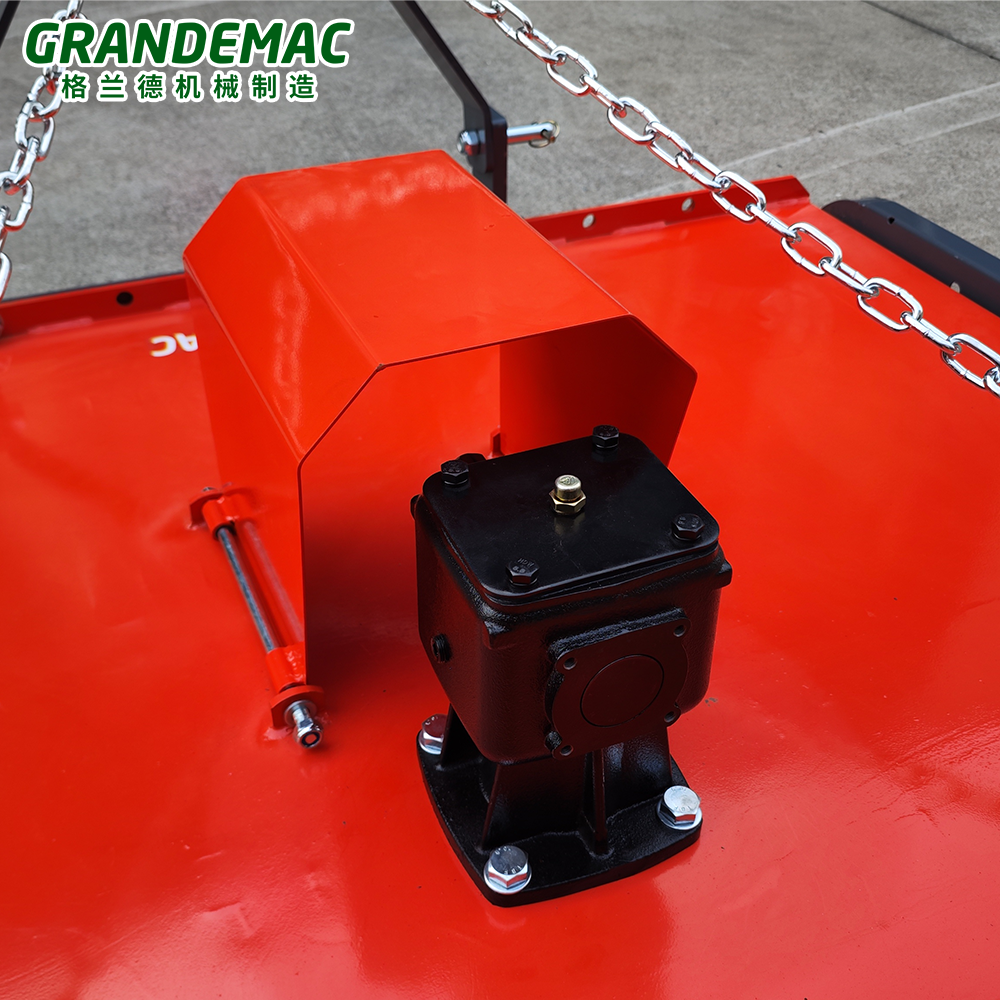

Check if lubricating oil has been added to the transmission shaft and gearbox.
Ensure that safety shields and barriers are fully installed.
Adjust the homework height to the appropriate position.
3. Start tractor&PTO
Start the tractor at low speed with no load.
Slowly engage the power output shaft to start the swing blade rotating.
Preheat the equipment for a few seconds before starting the task to ensure a stable rotational speed.
4. Start Jobs
Keep moving forward at a steady speed and avoid sudden turns or stops.
When mowing, keep the blade at an appropriate distance from the ground (usually 5-15cm) to prevent the blade from being damaged by hard objects on the ground.
Slow down appropriately when encountering high grass or complex terrain.
5. End homework
Before stopping, turn off the PTO power output.
After lowering the equipment to the ground, turn off the tractor.
Clean the weeds on the swinging knife and check for any loose or damaged parts.
Product Video
