B5050
GRANDEMAC
| Quantity: | |
|---|---|
Product Introduction

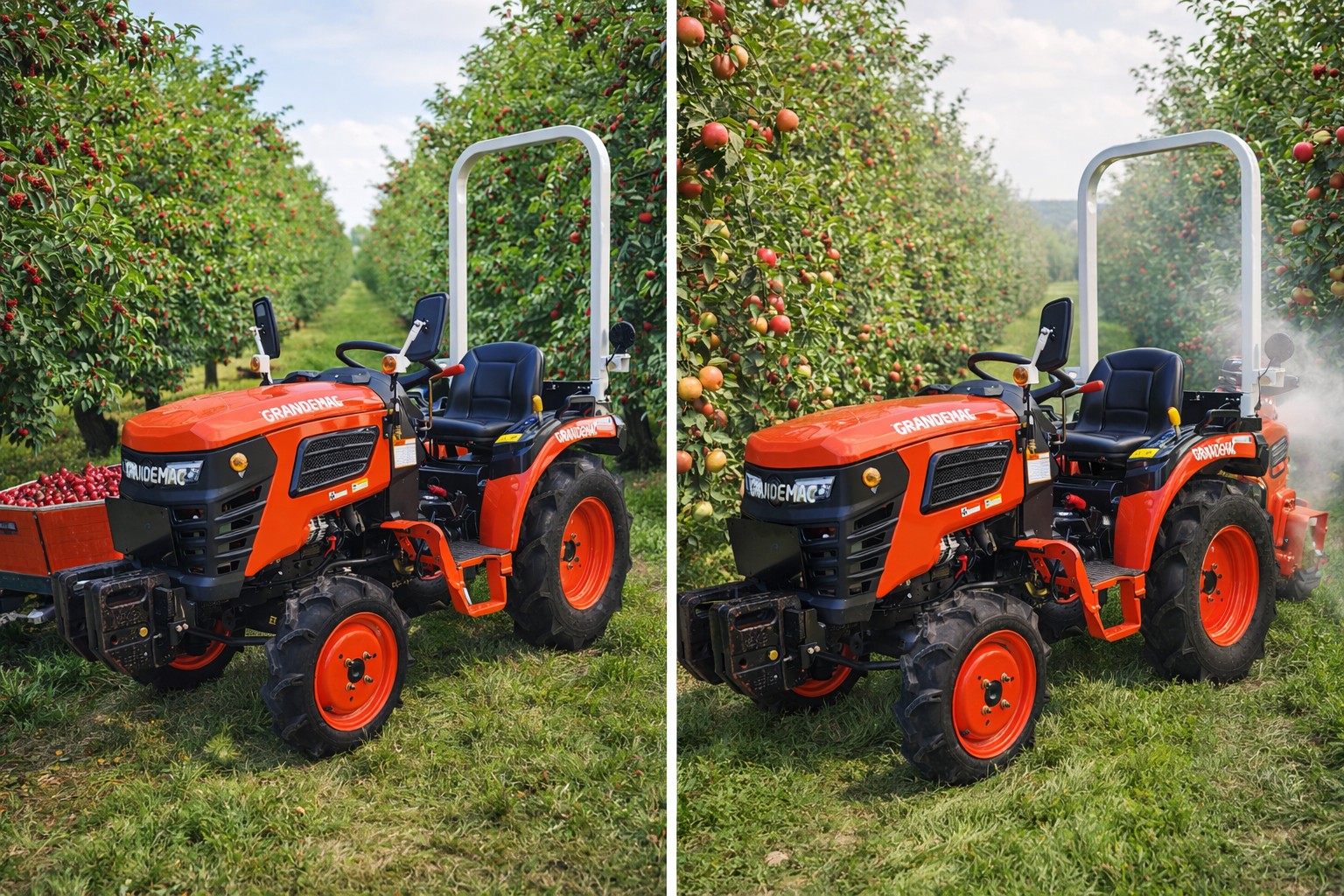

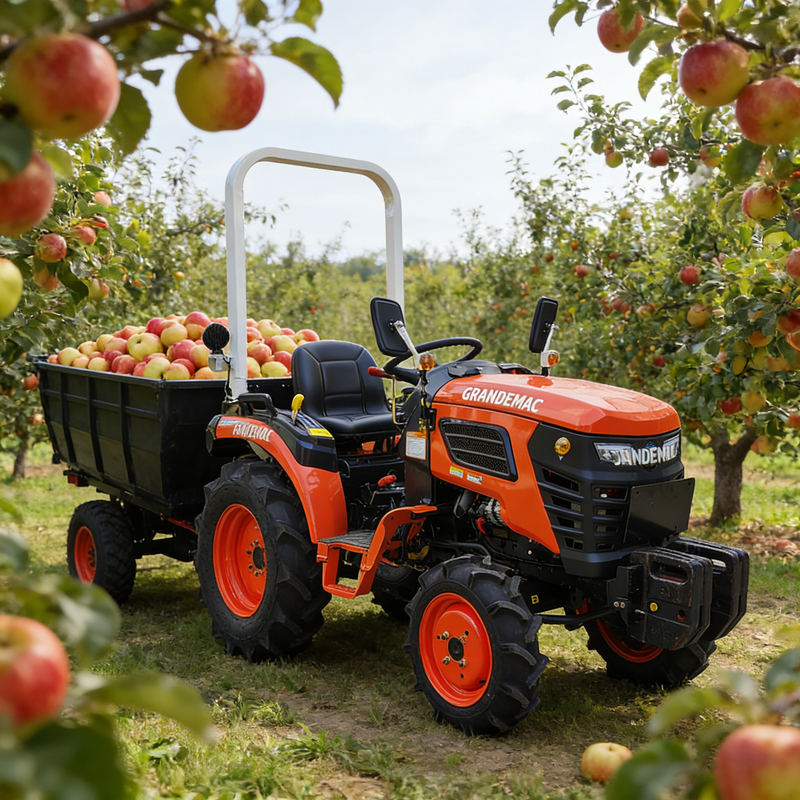

The TC504-A8 orchard tractor is a high-performance, compact agricultural machine designed specifically for orchard and narrow-field operations. Powered by a reliable 4-cylinder XY484 engine with 36.8kW output, it delivers strong, stable performance for demanding daily tasks.
With a compact structure and a tight turning radius of just 2500mm, this tractor is ideal for working in orchards such as apples, cherries, and vineyards where maneuverability is critical. The 330mm ground clearance ensures smooth operation even on uneven terrain.
Built with a reinforced full cast-iron chassis, the TC504-A8 offers exceptional durability and long service life. Its flexible 2WD/4WD switching system, combined with hydraulic lifting and rear PTO, allows seamless operation with a wide range of implements, making it a versatile all-in-one solution for modern orchard management.
Key Features
Powerful 4-Cylinder Engine
Equipped with XY484 engine (36.8kW), providing strong and reliable power
Compact & Agile Design
Narrow body and 2500mm turning radius, perfect for tight orchard rows
2WD / 4WD Switching
Adapt easily to different terrains and working conditions
Heavy-Duty Construction
Reinforced full cast-iron chassis for enhanced durability and stability
Multi-Function Capability
PTO (680/890 r/min) and standard 3-point hitch support various attachments
Technical Parameters
| model | B5050 4-cylinder engine |
| Specifications: | 2920*1337*2010mm |
| Ground clearance: | 330mm |
| Quality: | 684kg |
| Supporting engine: | XY484 |
| Rated power | 36.8kw |
| Emission standards: | Phase Four |
| Front wheels: | 7-16； There are inner tubes, steel hubs, and dry wheels; Track width 1020mm |
| Rear wheels: | 11.2-24； Tubeless, steel hub, dry wheel; Track width 1060mm |
| wheelbase: | 1610mm |
| Turning radius: | 2500mm |
| Function: | Two/four-wheel drive conversion, all cast iron reinforced chassis, hydraulic lifting, PTO rear output, three-point standard suspension (Class 1N, standard GB/T 1593-2015) |
| speed: | Backward 1, Backward 2, Backward 3, Backward 4, Forward 1, Forward 2, Forward 3, Forward 4 |
| PTO shaft speed: | 680/890r/min |
| optional | Multi way valve+USD120, without rear counterweight, sunshade+USD135 |
Applications
Orchard operations (apple, cherry, citrus, vineyard)
Grass cutting and mulching
Soil tilling and cultivation
Fertilizing and spraying
Light transport tasks
Product Operate Guide
Before starting the tractor, ensure the following:
Check engine oil, coolant, and fuel levels
Inspect tire pressure and overall tire condition
Ensure all bolts and connections are secure
Check hydraulic oil level
Make sure PTO and attachments are properly connected
Verify no oil leakage or abnormal parts
Place gear lever in neutral
Engage parking brake
Turn ignition key to start the engine
Let engine idle for 3–5 minutes (especially in cold conditions)
Check instrument panel for any warning lights
Select appropriate gear (4 forward / 4 reverse) based on task
Start in low gear for heavy load or rough terrain
Avoid sudden acceleration or sharp turns
Use low speed when operating in orchards or narrow spaces
Use 2WD for flat जमीन or light-duty work (fuel saving)
Use 4WD for muddy, uneven, or sloped terrain
Always switch modes when the tractor is stopped or at low speed
Ensure PTO shaft is securely connected
Select PTO speed: 680 / 890 r/min depending on implement
Engage PTO at low engine speed, then gradually increase throttle
Never stand near rotating PTO shaft during operation
Use hydraulic lever to lift/lower implements
Ensure 3-point hitch is properly secured (Category 1N)
Adjust working depth according to task (tilling, mowing, etc.)
Stop engine before installing or removing attachments
Minimum turning radius: 2500 mm
Reduce speed before turning
Avoid sharp turns at high speed to prevent rollover
Be extra cautious in narrow orchard rows
Do not overload the tractor
Keep hands and clothing away from moving parts
Do not allow passengers unless seat is designed
Always turn off engine before maintenance
Use proper lighting if working at night
Clean tractor after each use (especially dust and grass)
Check and refill fluids regularly
Lubricate key joints and moving parts
Inspect air filter and clean if necessary
Store in a dry, ventilated place
Keep away from direct sunlight and rain
Disconnect battery if stored long-term
Cover tractor to prevent dust accumulation
TC504-A8 Orchard Tractor – FAQ
1. What is it used for?
Orchard work like mowing, tilling, spraying, and transport.
2. Is it suitable for narrow spaces?
Yes, compact size with 2500mm turning radius.
3. What attachments can it use?
Mower, tiller, sprayer, fertilizer spreader, trailer.
4. Does it have 4WD?
Yes, 2WD / 4WD switchable.
5. PTO speed?
680 / 890 r/min.
6. Engine power?
4-cylinder XY484, 36.8kW.
7. Easy to operate?
Yes, simple controls, beginner-friendly.
8. What terrain can it handle?
Flat, uneven, and muddy الأرض (with 4WD).
9. Maintenance?
Easy daily maintenance, low cost.
10. Shipping method?
Wooden crate or container shipment.
