Product Advantage
Hybrid design:
combining oil and electricity, extending battery life, improving operational efficiency, energy-saving and environmentally friendly.
Intelligent remote control operation:
equipped with a wireless remote control system, it can remotely control actions such as forward, backward, steering, and tool lifting, making operations safer.

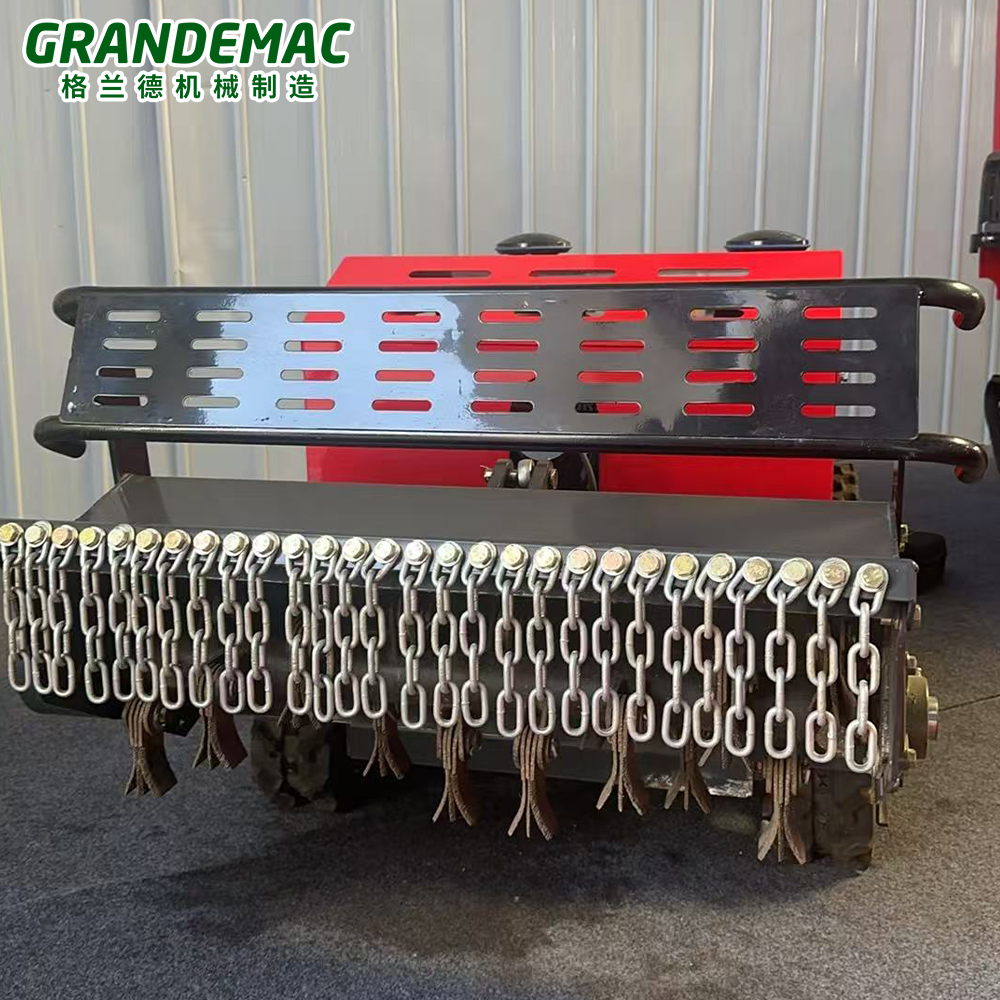

Efficient grass crushing system:
using multiple high hardness blades or swinging blade structures, the grass crushing effect is good, and the grass can be crushed into small particles, which is beneficial for returning to the field.
All terrain adaptability:
With a tracked chassis design, it has excellent off-road performance and can easily handle complex terrains such as slopes, wetlands, and muddy terrain.
Intelligent security protection:
equipped with functions such as power detection, fault alarm, emergency stop, etc., to ensure the safety of
operators and equipment.
Technical Parameters
| project | Unit | Parameters |
| Main engine model | / | 192F/P |
| Engine power rating | kw | 8.8 |
| Rated engine speed | r/min | 3600 |
| Main transmission mode | / | belt |
| Main clutch form | / | Tightening type |
| Walking style | / | track |
| Walking power | / | motor drive |
| Drive motor model | / | 24V650W*2 |
| Motor power | / | 24V45ABattery+extended range |
| Extended range generator | / | 28V80A DC generator |
| control mode | / | remote control |
| Dimensions (length * width * height) | mm | 1560*920*686 |
| structural quality | kg | 360 |
| Knife shaft speed | r/min | 2600 |
| Number of blades | pcs | 48 (2 curved knives and 1 straight knife) |
| Blade connection method | / | pin shaft |
| stubble height | mm | 30-60 |
| Work width | mm | 800 |
| Hourly productivity of homework | m/h | ≥1840 |
| operating speed | m/min | 38-45 |
| Fuel consumption | Kg/h㎡ | ≤12 |
Product Uses
Clearing grass and removing impurities in the orchard
Weeding in mountainous areas and under forests
River slope management
Landscape greening maintenance
Product Operate Guide
1、 Pre startup inspection
Check fuel and battery levels
Confirm that the gasoline tank has sufficient fuel;
Check if the lithium battery is fully charged and charge it if necessary.
Check the blades and tracks
Check if the blade is loose or damaged;
Check the tension of the track and whether there is any jamming phenomenon.
Confirm the status of the remote control
Turn on the remote control power and confirm that the signal light is normal;
Ensure successful pairing with the host.
2、 Operation steps
starting the machine
Short press the power switch and wait for the display screen or indicator light to turn on;
Start the engine (some models require one key start, while others require pulling a rope);
The electric system is automatically linked to standby mode.
Remote control driving
Use the remote control to control forward, backward, left turn, and right turn;
Adjust the height of the cutterhead using the "lift button" to adapt to different grassland conditions;
Adjust the speed gear, low speed is suitable for areas with dense grass crushing, and high speed is suitable for large-scale cleaning.
Grass breaking homework
Confirm that the cutterhead is activated and slowly advance to the work area;
Maintain a stable propulsion speed and avoid sharp turns or sudden stops;
In case of high grass density areas, slow down or work in sections appropriately.
3、 Closing after homework
Shutdown operation
Stop the rotation of the cutterhead;
Turn off the engine and power;
Long press the remote control to disconnect the link.
Cleaning and maintenance
Remove the blade and bottom grass debris;
Check whether the blade is damaged or worn;
Add lubricating oil to key components such as bearings and transmission chains.
Charging and Storage
Charge the battery (to avoid long-term storage due to battery depletion);
Store in a well ventilated and dry place, avoiding direct sunlight and rain.
