If you manage an orchard, vineyard, or fruit grove, choosing between a side shift rotary tiller and a standard rotary tiller directly impacts tree health, labor costs, and your bottom line:
Standard Rotary Tillers are centered directly behind the tractor. They are ideal for open-field tilling, preparing open plots, and general ground maintenance in wide alleys where clearance isn't an issue.
Side Shift Rotary Tillers (Mechanical or Hydraulic) allow the implement to slide laterally beyond the tractor's wheel track. This lets the operator till right up to tree trunks, vine posts, and under low-hanging branches while keeping the tractor safely in the center of the row aisle.
Below is an in-depth breakdown of how both tillers perform in orchard environments, their mechanical requirements, and how to decide which one fits your operation.
Orchard floor management is fundamentally different from open-field farming. Commercial fruit, nut, and citrus growers must navigate specific operational constraints:
Low-Hanging Canopies & Fragile Bark: Driving a tractor too close to trees risks tearing branches, knocking off ripening fruit, and damaging bark with tires or exhaust pipes, creating entry points for disease and fungal infections.
Dense Tree-Line Weed Competition: Weeds and grass growing immediately around tree bases compete aggressively for water and nutrients. Chemical weed control (herbicides) faces increasing regulatory bans, consumer resistance, and risks of soil compaction or root injury.
Tight Row Spacing: Modern high-density dwarf and semi-dwarf orchards often feature row widths of only 2.5 to 3.5 meters (8 to 11 feet), leaving minimal margin for tractor error.
Shallow Feeder Roots: Tillage near fruit trees must be precise and depth-controlled to avoid severing shallow feeder roots.
Understanding these challenges highlights why implement geometry matters just as much as horsepower.

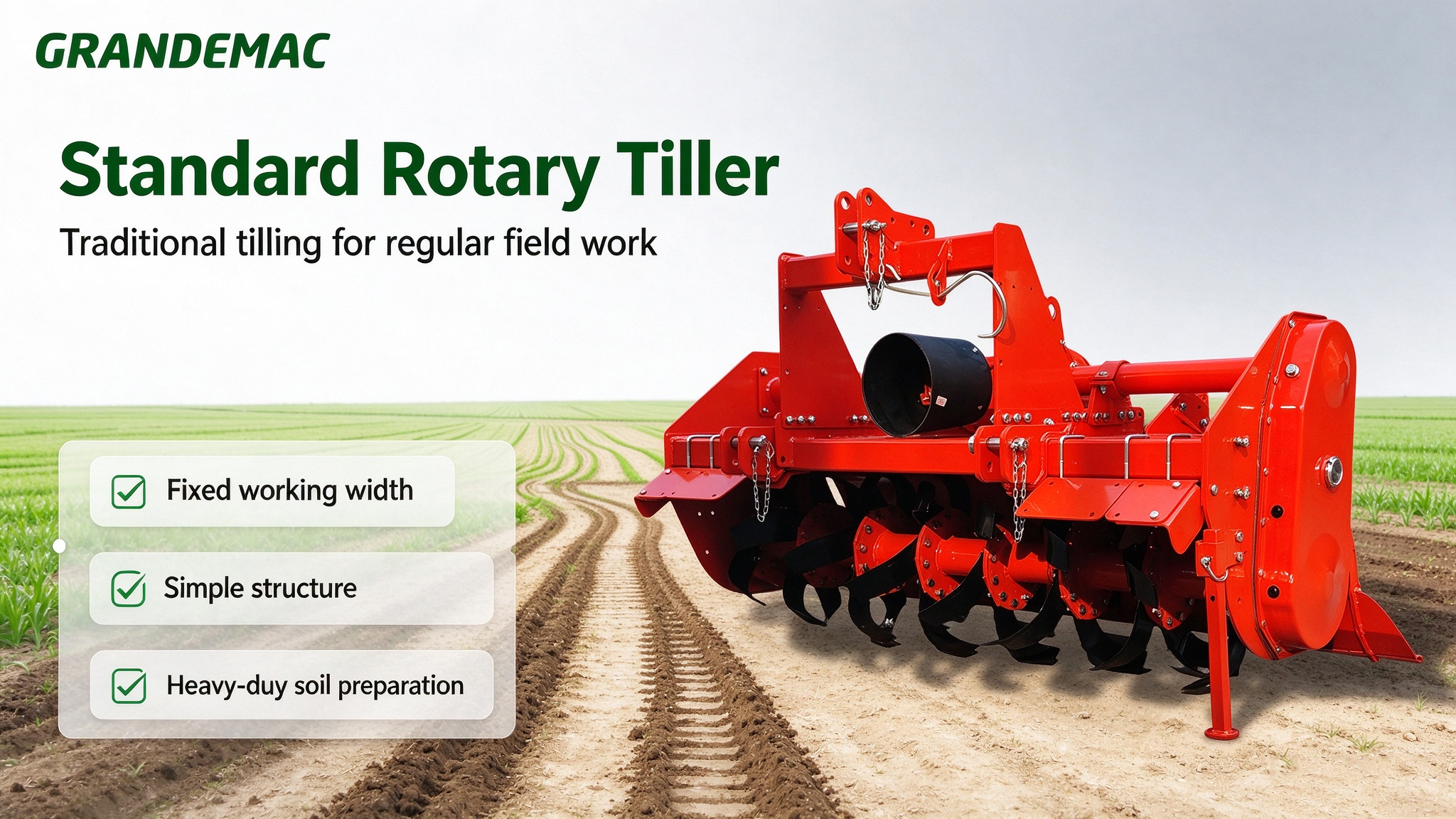

A standard rotary tiller (also known as a center-mount rotary cultivator) mounts squarely on the tractor’s 3-point hitch. The PTO-driven rotor spins blades (C-type or L-type) directly behind the tractor's track width.
Symmetrical Alignment: The working width is centered behind the tractor rear wheels.
Simple Drive Mechanism: Straightforward PTO driveline alignment with minimal angle variation, typically using side gear or chain drive.
Lower Initial Cost: Simpler frame design with fewer moving parts.
General field preparation and vegetable row pre-planting.
Cultivating the open center alley (inter-row middles) in wide orchards (e.g., traditional walnut or pecan orchards with 6–8 meter spacing).
Incorporating cover crops and organic amendments across wide, unobstructed spans.
The "Strip" Problem: A standard tiller leaves an uncultivated strip of 30–60 cm (12–24 inches) on either side beneath the tree line.
Tractor Proximity Hazards: Forcing the tractor closer to the tree line to reach weeds exposes mirrors, ROPS/cab glass, and tires to tree limbs and irrigation risers.
Secondary Labor Needed: Farmers must follow up with manual hoeing, string trimmers, or chemical sprays around the trunks.

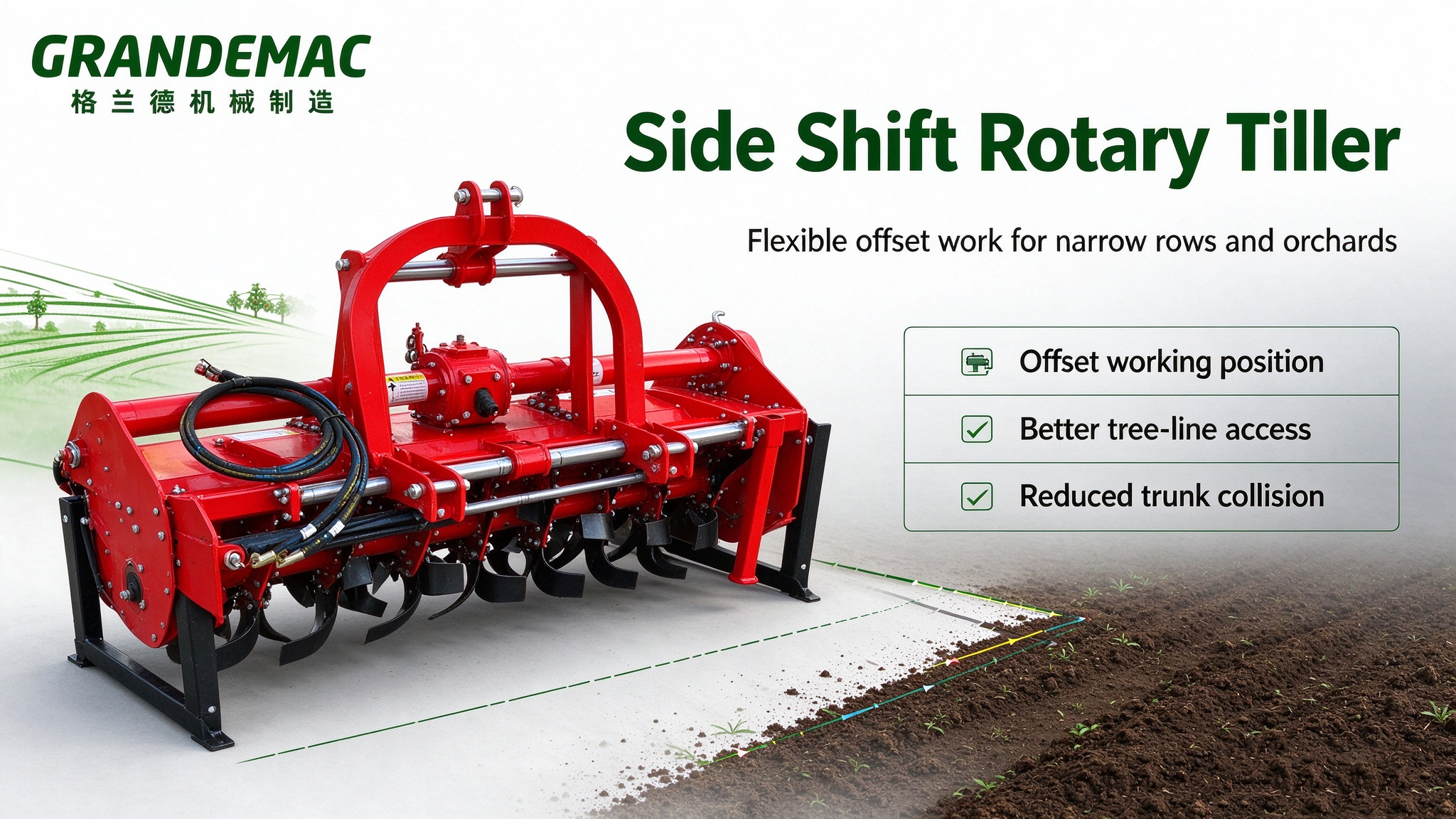

A side shift rotary tiller (often called an offset rotary tiller) features an adjustable mounting frame or hydraulic cylinder that moves the entire tilling body horizontally to the left or right relative to the tractor's center axis.
Side shift tillers come in two primary configurations:
Manual / Mechanical Side Shift: The operator adjusts the 3-point hitch crossbar or frame pins by hand to set a fixed offset before entering the rows.
Hydraulic Side Shift: Controlled directly from the tractor cab via a hydraulic remote spool. The operator can dynamically shift the tiller in and out on the fly to navigate around irregularly spaced trees, irrigation heads, or slope variations.
Lateral Offset Reach: The rotor extends 30 to 70+ cm (12 to 28+ inches) past the tractor's outer tire edge.
Telescopic PTO Shaft: Uses heavy-duty PTO drivelines designed to handle angular deviation during offset operations.
Operator Visibility & Safety: The tractor remains centered in the cleared, compacted alley, well away from low limbs and fruit clusters.
Under-Canopy Weeding: Reaches directly under low-hanging branches (apples, peaches, avocados, table grapes) right up to the trunk drip line.
Protects Fruit and Branches: Eliminates tree scrapes and knocked-down produce by keeping the tractor chassis in the middle of the drive lane.
Reduces Herbicide Dependency: Delivers clean mechanical weed eradication right along the tree berm, fitting organic and integrated pest management (IPM) standards.
Multi-Duty Flexibility: Can be locked back to center position for standard open-ground work, offering two machines in one.
Evaluation Metric | Standard Rotary Tiller | Side Shift Rotary Tiller |
|---|---|---|
Implement Alignment | Fixed center-line mount | Off-center / lateral sliding (Manual or Hydraulic) |
Under-Canopy Reach | Poor (confined to tractor width) | Excellent (extends beyond outer tire wall) |
Tree & Fruit Protection | High risk of canopy contact if driving close | High protection; tractor stays centered in alley |
Weed Control Along Trunks | Requires secondary manual or chemical weeding | Up to 80–90% reduction in manual trunk weeding |
Tractor Requirements | Standard Category 1/2 3-Point Hitch | Requires rear hydraulic remote valve (for hydraulic models) |
PTO Shaft Wear | Minimal (straight inline operation) | Requires quality wide-angle/slip-clutch PTO shaft |
Initial Investment | Lower ($) | Moderate to Higher ($$ - $$$) |
Maintenance Complexity | Low (standard gearbox + blades) | Low-to-Moderate (inspect slide guides & hydraulic cylinder) |
Best Suited For | Wide-spaced orchards, open fields, nurseries | Dense orchards, vineyards, low-canopy tree crops |
If you decide that a side shift tiller is right for your orchard, ensure your equipment matches these mechanical and operational criteria:
Offsetting a heavy implement shifts the tractor’s center of gravity. When the tiller is shifted fully to one side, lateral torque increases:
Weight Ratio: Ensure the tractor’s track width and chassis weight can handle the side cantilever when lifted on the 3-point hitch.
Horsepower Matching: Most 1.2m to 1.8m (48" to 72") orchard offset tillers require between 25 HP to 65 HP. Do not undersize your tractor.
If selecting a hydraulic side shift model, check if your tractor has at least one double-acting rear hydraulic spool valve.
If your tractor lacks rear remotes, consider a mechanical manual shift model or add an aftermarket rear hydraulic control kit.
C-Blades (Curved): Recommended for rocky, hard, or compacted orchard soils. They penetrate deeper and require less horsepower.
L-Blades (Right Angle): Better for clean weed slicing and mulching surface cover crops, but prone to wrapping in tall grass and sensitive to stones.
Side Gear Drive: Far superior for professional orchard longevity. Heavy-duty cast iron gear baths resist heavy root impacts.
Chain Drive: Common in entry-level implements, but requires more frequent tensioning and chain replacement in high-acreage orchards.
While a side shift rotary tiller typically carries a 15% to 30% price premium over an equivalent standard center-mount model, the return on investment (ROI) in an orchard is rapid:
Labor Savings: Eliminates 60–80 hours of manual strimming and hand-hoeing per 10 acres per season.
Chemical Cost Reduction: Cuts herbicide spending and compliance burdens on organic-certified ground.
Yield Preservation: Avoiding branch breakages and bruised fruit can easily save several thousand dollars in marketable yield across a single harvest cycle.
For commercial fruit growers, a side shift tiller usually pays for its price difference in the first 1 to 2 seasons.
Yes. Side shift tillers can be adjusted or retracted back to the dead center. When centered, it operates identically to a standard rotary tiller for preparing open garden beds or field crops.
Rotary tillers are equipped with adjustable side skids that set working depth (typically between 5 cm to 15 cm / 2 to 6 inches). In orchards, operators set the skids shallow (5–8 cm) to slice weed roots and aerate the topsoil without disturbing the deeper root zone.
An in-and-out sensor tiller (inter-row automatic sensor weeder) features a spring-loaded feeler wand that automatically retracts the tilling head when it touches a trunk or vine. A hydraulic side shift tiller shifts the entire machine laterally based on operator control, making it simpler, more durable, and significantly less expensive.
Choosing the right rotary tiller comes down to your row spacing, canopy height, and tractor specifications.
We manufacture and export commercial-grade manual and hydraulic side shift rotary tillers engineered specifically for vineyards, orchards, and berry operations. Equipped with heavy-duty oil-bath gear drives, forged boron steel blades, and precision hydraulic cylinders, our machines deliver reliable performance season after season.
