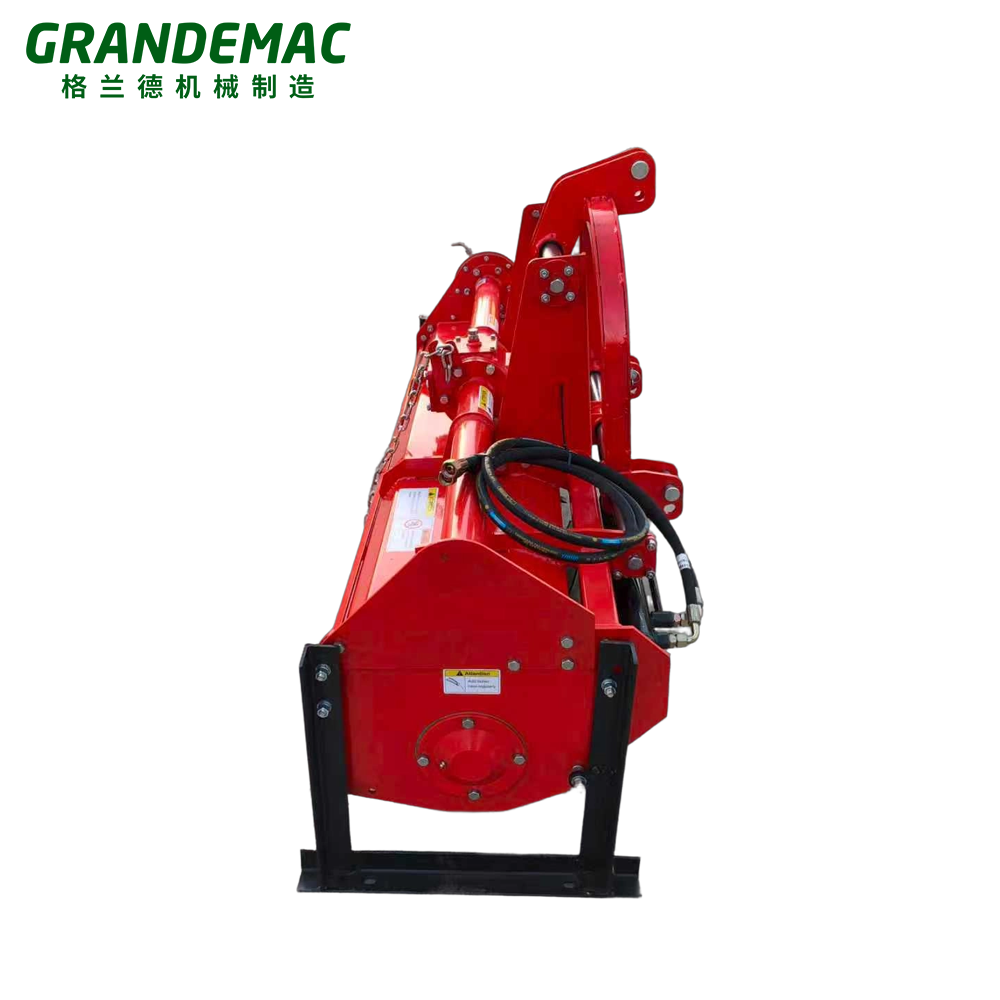

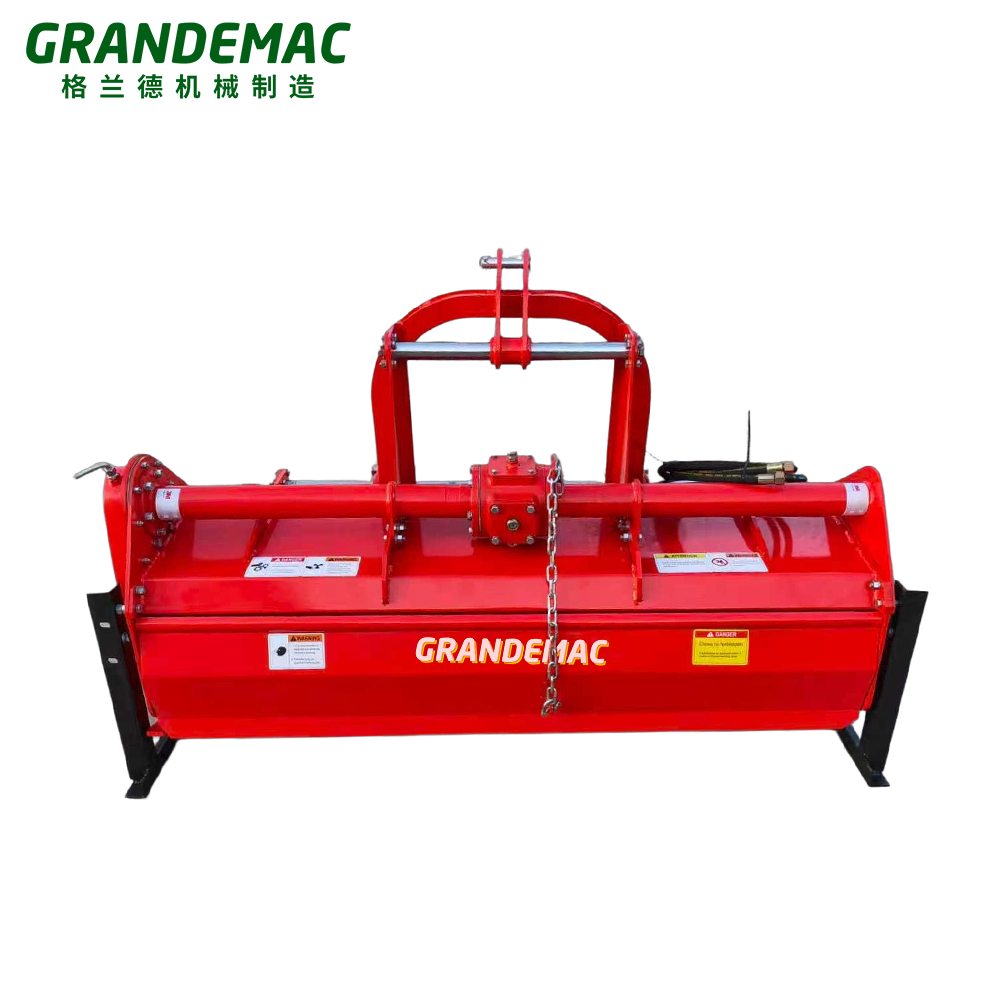

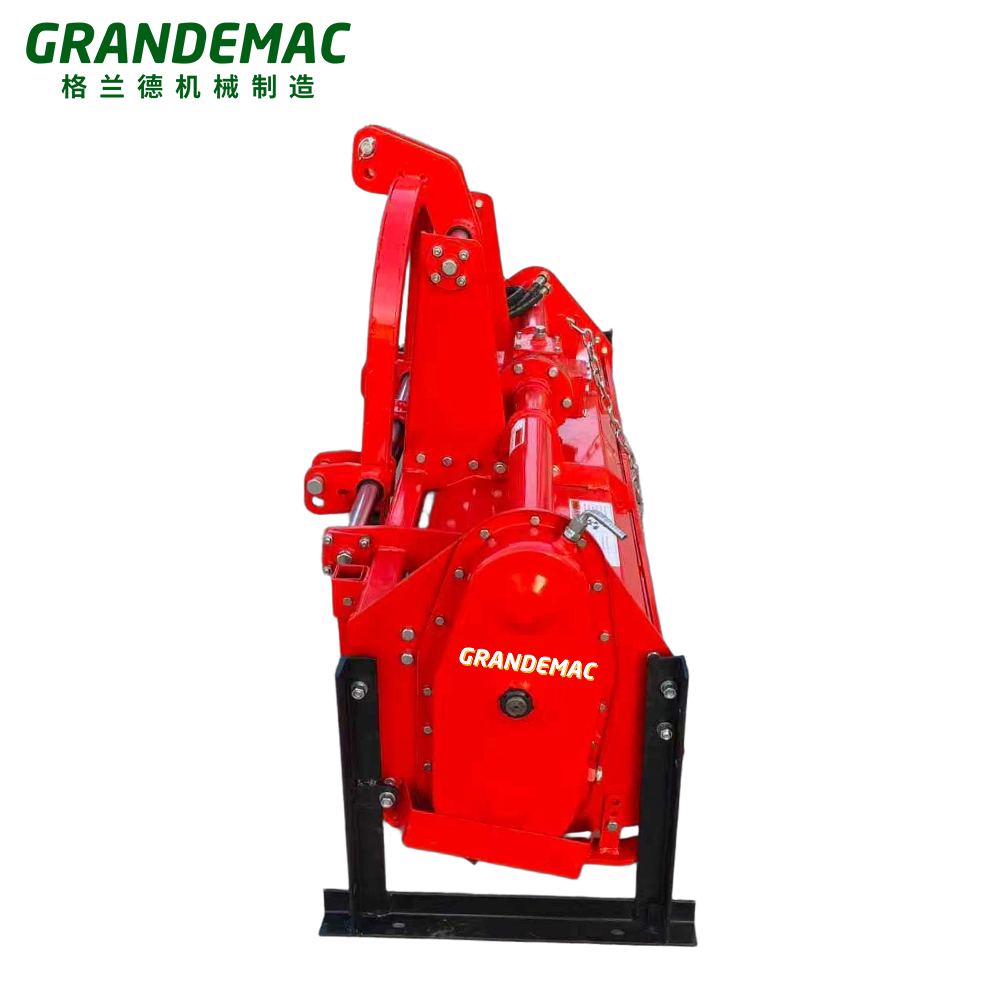

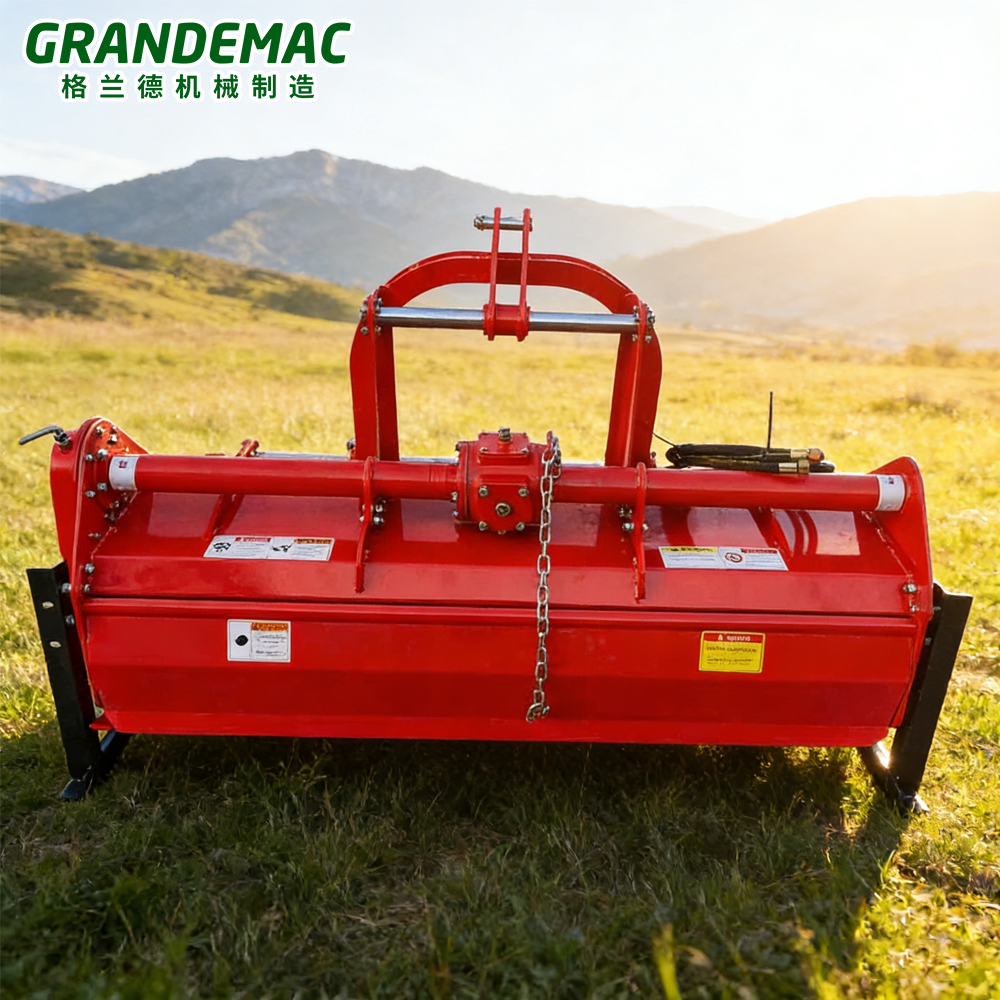

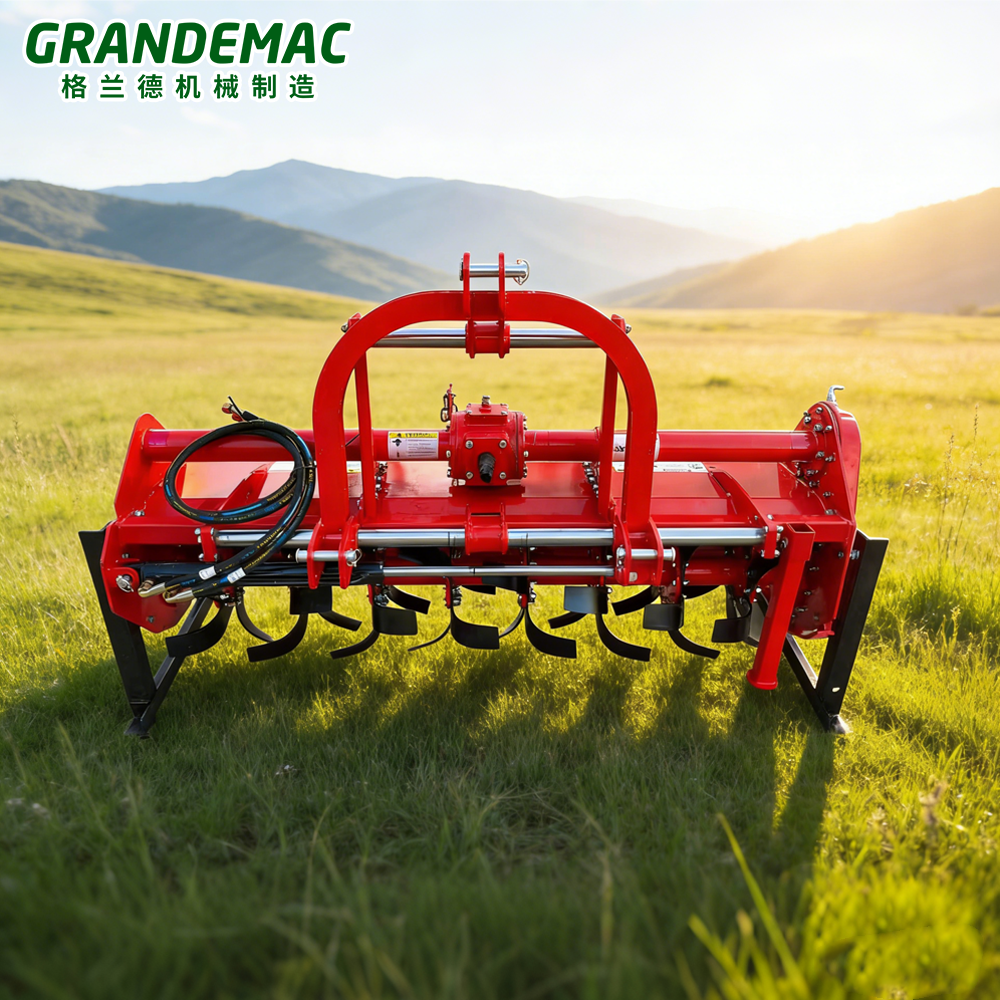

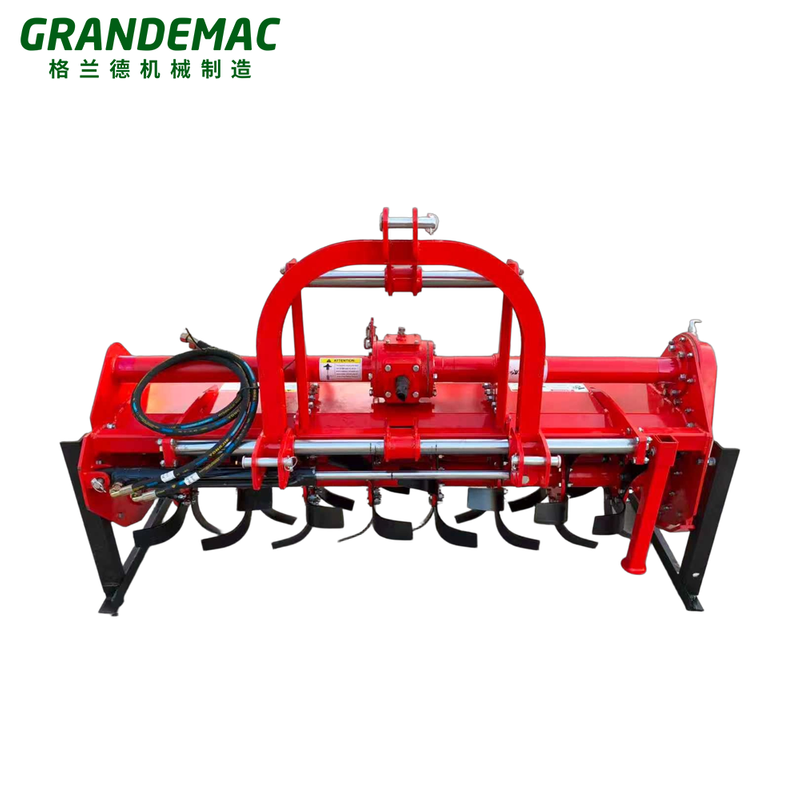

Side Shift Rotary Tiller
The Side Shift Rotary Tiller is specially designed for orchards, vineyards, and narrow-row farming operations.
With its lateral shifting system, the tiller can move sideways to work closer to trees, fences, and field edges, ensuring full soil coverage without damaging crops.
It is an ideal solution for farmers who require precision tillage, flexibility, and durability in challenging working conditions.
Side Shift Design
Allows the rotary tiller to shift left or right, making it perfect for orchards and edge cultivation.
Efficient Soil Pulverization
High-speed rotating blades break soil evenly, improving soil aeration and moisture retention.
Heavy-Duty Structure
Reinforced frame and robust gearbox ensure long service life under continuous operation.
Wide Compatibility
Suitable for tractors from 18–70 HP, covering small to medium farming needs.
Multiple Working Widths Available
From 100 cm to 200 cm, adaptable to different field sizes.
Technical Parameters
| Model | NO. of blades （PCS） | Working width （CM) | Power (HP) | Plowing depth (CM) | Weight (KG) | L*W*H(mm) | |
| RTG100S | 20 | 100 | 18-30 | 8-15 | 250 | 1160*680*1060 | |
| RTG120S | 24 | 120 | 25-35 | 8-15 | 265 | 1360*680*1060 | |
| RTG140S | 28 | 140 | 35-50 | 8-15 | 270 | 1560*680*1060 | |
| RTG160S | 32 | 160 | 40-50 | 8-15 | 284 | 1770*730*1040 | |
| Enhanced version | |||||||
| 1GQ100S | 30 | 100 | 18-30 | 10-18 | 225 | 1300*920*1150 | |
| 1GQ120S | 36 | 120 | 25-35 | 10-18 | 265 | 1500*920*1150 | |
| 1GQ140S | 42 | 140 | 35-50 | 10-18 | 310 | 1700*920*1150 | |
| 1GQ160S | 48 | 160 | 40-50 | 10-18 | 355 | 1900*920*1150 | |
| 1GQ180S | 54 | 180 | 50-70 | 10-18 | 400 | 2100*920*1150 | |
| 1GQ200S | 60 | 200 | 50-70 | 10-18 | 445 | 2300*920*1150 |
Orchards and vineyards
Vegetable fields and greenhouses
Row crop cultivation
Edge and corner tillage
Heavy-duty reinforced frame
Different blade types
Customized color and logo
Export-standard packing
Precise side-shifting for narrow spaces
Reliable performance with low maintenance
Factory direct supply with OEM & ODM support
Suitable for global markets and export standards
Each unit is manufactured under strict quality control and tested before delivery. With CE certification, CSP250 & CSP300 rotary tillers are suitable for export to Europe, South America, the Middle East, and other international markets.
Packing and Delivery
