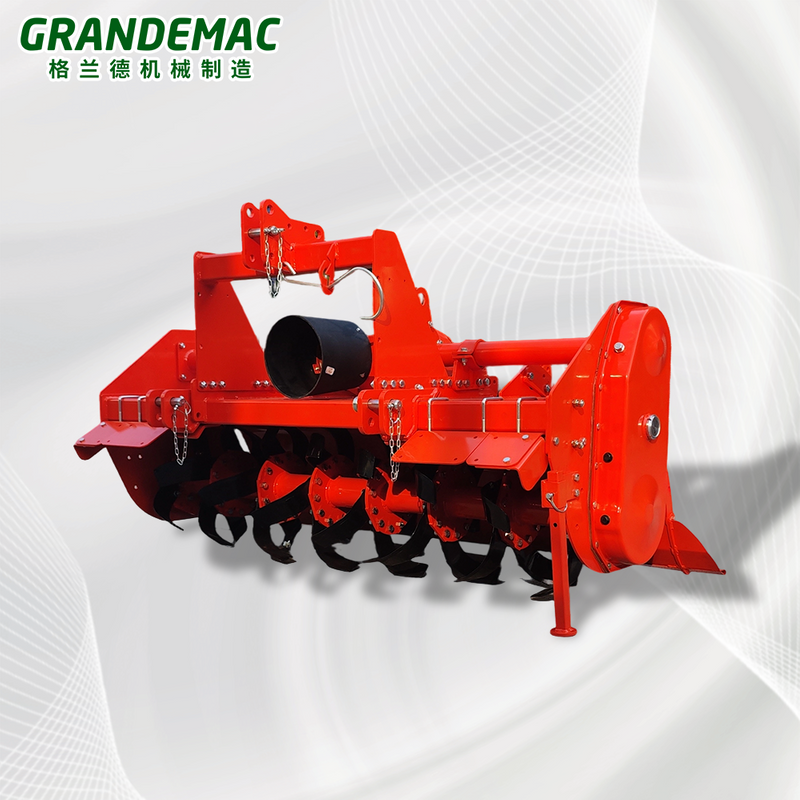

Product Introduction
We offer three different sizes of 180, 210, and 230 to meet the horsepower requirements of different tractors. You can choose the most suitable model according to your actual situation, ensuring that the rotary tiller matches perfectly with your tractor and delivers the best performance.
In addition, we also offer light customization services, which can tailor your exclusive rotary tiller according to your special needs.
At the same time, commonly used spare parts are also available for sale, making it convenient for you to replace them at any time when needed, ensuring the continuous and efficient operation of the rotary tiller.In terms of delivery time, we promise to generally only take 30 days to ensure that you can put it into use as soon as possible.
Product Advantage
● Gearbox
4-speed gearbox input speed 540 rpm
● Six Tines
Each cutterhead has 6 blades, resulting in bett
● Adjustable Mudguard
Spring supported mudguard connection, adjustable angle prevent to soil splashing
● Stamped Chain Case
Stamped forming gives the chain cover strength. Edge gear rotation
● Flexible Adjustment Device
The design of the adjustment device is flexible and convenient for adjusting the working depth and angle to adapt to different soil and operational needs
● Three Point Suspension
Easy to connect with tractors, easy to adjust, and structurally stable
Technical Parameters
| B | Tractor power （hp) | Working width （cm) | Machine width （cm) | Weight(kg) | PTO(rpm) | Blade No. | Knife shaft speed (rpm) | 20GP/40HQ (PCS) |
| 155 | 45-100 | 160 | 173 | 565 | 540 | 36 | 140-174-215-266 | 12 / 26 |
| 180 | 50-100 | 185 | 198 | 615 | 540 | 42 | 140-174-215-266 | 10 / 22 |
| 205 | 60-100 | 210 | 223 | 665 | 540 | 48 | 140-174-215-266 | 10 / 20 |
| 230 | 70-100 | 235 | 248 | 715 | 540 | 54 | 140-174-215-266 | 8 / 16 |
Product Operate Guide
• After each shift, the connecting bolts should be checked and tightened, and vulnerable parts such as bending knives, locking pins, and split pins should be inspected for defects and replaced if necessary. Check if the gearbox, universal joints, and bearings are short of oil, and replenish them immediately if necessary.
• After completing each homework quarter, the mud, dust, and oil stains on the equipment should be thoroughly removed, lubricating oil and grease should be replaced, and the blades should be checked for excessive wear and replaced if necessary. Check for any deformation in the hood, trailer, etc., restore them to their original shape or replace them with new ones.

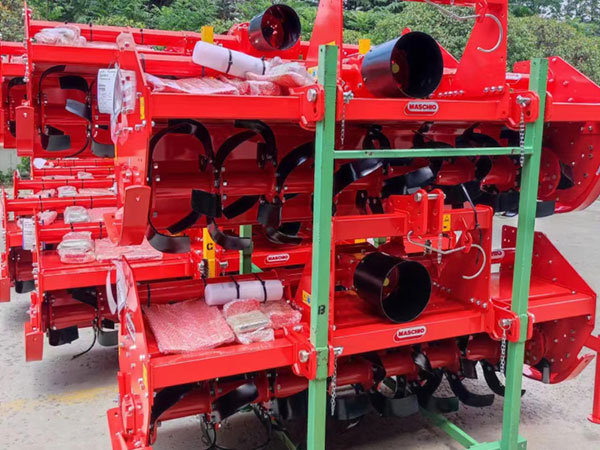

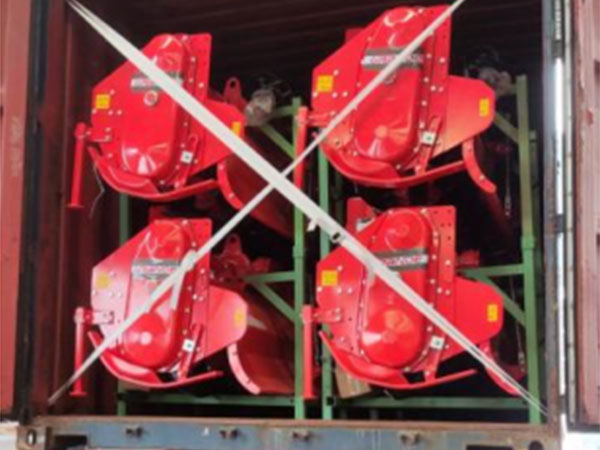

Packing and Delivery
