A well-configured verge flail mower can transform an ordinary tractor into a highly productive, multi-task machine that stretches fleet capability across seasons. Jiangsu Grande Machinery Manufacturing Co., Ltd. builds side-mounted, PTO-driven flail mowers designed to increase tractor utilization by enabling verge cutting, ditch work, orchard understorey management and mulch-in-place operations without needing a second specialist vehicle. This article explains how the implement couples to a tractor, matching and PTO considerations, installation and maintenance tips, and practical use cases that help farm managers and service providers get more value from the tractors they already own.

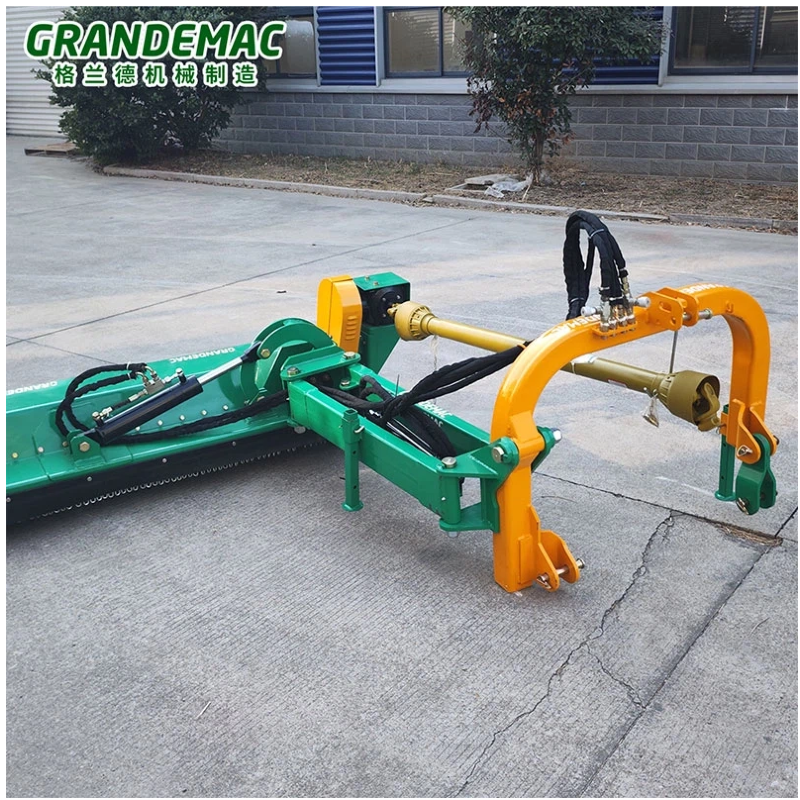

Connecting a side-mounted verge flail mower to a tractor is a quick conversion that adds significant capability. The mower attaches to the tractor’s three-point hitch or a dedicated side-mount fixture and is powered by the tractor PTO. Hydraulics control the arm, allowing the operator to swing, tilt and extend the cutting head from the tractor seat. With these simple mechanical connections, the tractor goes from field tillage and seeding tasks to precision verge work without complex retrofits. This rapid changeover lets contractors and farm managers use the same tractor for multiple jobs in a single day, improving asset utilization and reducing idle time.
The technical simplicity of PTO coupling and hydraulic control means that a single tractor can accept the flail in the morning, mow roadside verges in the afternoon, and return to field work the next day. For operations that value flexibility, the side-mounted design is especially valuable because it keeps the tractor on stable ground while the cutting head reaches embankments and ditches. The AGF line from Jiangsu Grande is engineered for seamless coupling and dependable hydraulic response so operators can switch tasks quickly and maintain productivity throughout the season.
Choosing the right tractor and model match is essential for reliable, efficient operation. The main matching factors are tractor horsepower, PTO speed and hydraulic flow. AGF models are developed to cover a practical range of tractor sizes typically available to smallholders and service providers. Smaller tractors around 30 to 40 horsepower pair well with compact side-mounted units for orchard and light verge work, while mid-range machines in the 50 to 80 horsepower bracket suit wider heads and heavier vegetation. Larger 90 to 100 horsepower tractors offer the extra torque needed for intensive roadside work and heavy brush.
Matching matters because underpowered tractors struggle to maintain rotor speed under load, which reduces cutting quality and increases wear. Conversely, oversized tractors may waste fuel if the implement design cannot efficiently use the extra horsepower. AGF models are tuned to operate efficiently within the 30 to 100 horsepower band so that most common tractors can perform well without excessive modifications. Proper matching ensures consistent rotor speed, good mulching performance and reduced PTO shock.
PTO speed and gearbox load determine the flail’s cutting effectiveness. The common PTO standard for verge flail work is 540 rpm. This speed balances torque and rotor tip velocity to produce a smooth chop and effective mulching in most vegetation types. Some heavier-duty heads are also compatible with 1000 rpm for dense scrub or woody growth, but that requires a tractor and gearbox rated for the higher rotational speed.
Operators should watch gearbox load indicators and avoid prolonged stalls or repeated high-torque impacts. If the rotor frequently bogs down, it can create heat and stress that reduce component life. Selecting the correct flail type and rotor speed for the vegetation, and matching the model to tractor power, minimizes gearbox stress and keeps the system operating efficiently.
A primary efficiency gain from a verge flail mower comes from fewer passes and the mulch-in-place effect. The swinging flail blades cut and distribute vegetation evenly, which removes the need for a separate collection or repeated surface topping to tidy the area. That one-pass capability is a time-saver. Additionally, because flails pivot on impact, the rotor maintains momentum and the implement avoids hard stops that force the operator to disengage and reset. Reduced interruptions mean lower fuel use and less operator time lost to restarts.
Keeping the right relationship between ground speed and PTO rpm is key to efficient work. Operators should aim for a steady engine speed that maintains rated PTO rpm while adjusting tractor ground speed to match vegetation density. In light grass a faster ground speed at rated PTO gives good coverage; in dense reed or scrub a slower ground speed keeps the rotor loaded within its design limits. These small operational choices preserve fuel and reduce mechanical wear.
Service providers can capitalize on this efficiency by scheduling jobs to maximize continuous working time rather than frequent tool swapping. A single tractor with a side-mounted verge flail mower can do verge maintenance in the morning, switch to understorey mulching in orchards after lunch and handle light field-edge trimming the next day. This multi-role usage improves return on invested capital for the tractor and implement combined.
Setting up an AGF side-mounted unit is straightforward when following a concise procedure. First, park the tractor on level ground and lower the three-point hitch. Secure the mower’s mount to the hitch with proper pins and retainers. Align and connect the PTO shaft, ensuring the driveline guard is intact. Attach hydraulic hoses to the tractor’s auxiliary outlets and verify correct coupler orientation. Tighten all mounting points and confirm that the arm moves through its full range without obstruction.
After mechanical hookup, perform a short hydraulic function test with the engine at idle. Cycle the lift, swing and tilt to confirm fluid flow and to check for leaks. With the PTO disconnected, rotate the head by hand if possible to ensure nothing binds. Once mechanical and hydraulic systems check out, engage the PTO at low speed and slowly increase to operating RPM, listening for unusual noises and checking for vibration.
Confirm all mounting pins and safety clips are installed.
Ensure PTO guard is present and fixed.
Inspect flails for wear and replace any cracked or bent units.
Check gearbox oil level and visible hydraulic hose condition.
Grease all lubrication points and tighten visible bolts.
Following this checklist minimizes initial failures and sets the stage for efficient, trouble-free work.
For fleet managers, uptime is a primary KPI. Greasing schedules, blade rotation checks and spare part rotation form the backbone of a reliable maintenance program. Grease points should be addressed daily in heavy-use periods and weekly in lighter seasons. Rotor bearings must be inspected periodically for play and overheating. Track flail wear and replace full sets before imbalance develops to prevent vibration damage.
Common wear items include flails, bearings, belts and PTO couplers. Maintaining a standardized spare kit across the fleet reduces downtime, and rotating spare parts into service at scheduled intervals prevents last-minute shortages. Documented maintenance logs help predict component life and plan replacement cycles, which smooths budgeting and procurement.
Standardize a spare kit per AGF unit that includes a set of flails, bearing sets, a PTO coupling and a hydraulic hose. Provide short training checklists for operators that cover daily start-up, safe operating habits, and emergency stop procedures. Centralized training ensures consistent operation across drivers and helps protect fleet assets from misuse and preventable damage.
A side-mounted verge flail mower broadens the service menu for agricultural contractors and farm managers. In orchards, the implement is ideal for understorey weed control and mulching fallen pruning material back into the rows, providing both a tidy appearance and soil benefit. For municipal verge contracts, the same unit handles embankments and drainage ditches with hydraulic reach and an operator-friendly interface. Service providers can offer straw return or mulching services where the flail chops cut residue into fine material that helps return organic matter to the soil.
Planning multi-day projects with one tractor and a flail head is practical. For example, schedule verge contracts for early days when road traffic is lower, then move to orchards mid-week. This sequencing leverages continuous machine use and reduces transport and set-up time. Promoting the multi-role capability to customers helps contractors win more varied contracts while maximizing the tractor’s working hours.
If your goal is to increase tractor productivity and extend fleet capability with a single implement, fitting a verge flail mower is a practical solution that improves versatility, cuts operating time and reduces accessory churn. Jiangsu Grande Machinery Manufacturing Co., Ltd. engineers the AGF line to fit tractors across the 30 to 100 horsepower range with robust hydraulic flip, swinging flail safety and practical maintenance features that help fleet owners get more jobs done with fewer assets. Request fleet quotes or inquire about multi-unit discounts and demo opportunities by contacting us — AGF Series.
Can a verge flail mower be used year-round for different tasks?
Yes. With the right flail selections and PTO settings, the machine adapts from light grass cutting in spring to chopper duties after harvest and aggressive verge trimming in autumn.
Will the flail use more fuel than a traditional topper?
Not necessarily. Because a flail often completes the job in fewer passes and avoids repeated stops, total fuel consumption per job can be lower even if instantaneous draw is similar.
What training does an operator need for safe side-mounted use?
Operators should be trained in PTO safety, hydraulic coupling and stable tractor positioning. A short hands-on session covering pre-start checks and tilt management is usually sufficient.
How can contractors advertise extra services when they add a verge flail mower?
Contractors can promote ditch clearing, mulching and straw-return services as add-on options to existing mowing contracts, highlighting one-pass solutions and reduced cleanup times to attract clients.
