Product Advantage
Lightweight: The structure is small, easy to transport and operate, suitable for small farmland, mountains, hills and other terrains.
Flexible operation: With a small turning radius, it is suitable for working in narrow plots, orchards, greenhouses, and other environments.
Energy saving and efficient: Low power demand, relatively low fuel consumption, economical and practical.
High cultivation quality: can effectively crush soil, improve soil permeability, and promote crop growth.
Simple maintenance: The structure is relatively simple, easy to repair, and the cost of use is low.
Strong adaptability: It can be used with various agricultural machinery, such as trenchers, ridgers, etc., to meet the needs of different agricultural operations.
Reduce labor intensity: It is more labor-saving and improves work efficiency compared to traditional manual farming. "
Technical Parameters

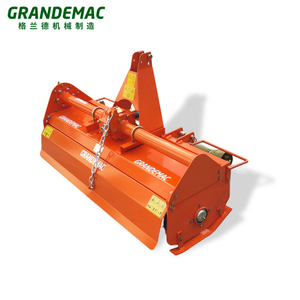

| TL light type rotary tillers | ||||||||
| Model | Working width(cm) | Blades shaft speed(rpm) | Number of blades | Tilling depth(cm) | Fitted power(hp) | Net weight(kg) | Gross weight(kg) | Size（cm） |
| TL85 | 85 | 210 | 16 | 8-12 | 18 | 120 | 152 | 105*73*73 |
| TL95 | 95 | 210 | 16 | 8-12 | 20 | 128 | 160 | 115*73*73 |
| TL105 | 105 | 210 | 20 | 8-12 | 22 | 138 | 172 | 125*73*73 |
| TL115 | 115 | 210 | 24 | 8-12 | 22-25 | 148 | 182 | 135*73*73 |
| TL125 | 125 | 210 | 28 | 8-12 | 25-30 | 158 | 192 | 145*73*73 |
| TL135 | 135 | 210 | 28 | 8-12 | 30-35 | 168 | 202 | 155*73*73 |
Product Uses
1. Small scale farmland cultivation;
2. Orchard and tea garden;
3. Greenhouses and greenhouses;
4. Mountainous and hilly areas;
5. Shallow cultivation of paddy fields;
6. Grassland and flower garden management
Product Operate Guide
Installation and Connection:
Attach the rotary tiller to the three-point suspension mechanism of the tractor.
Connect the power output shaft (PTO) and ensure it is securely fixed.
Pre homework inspection:
Check the installation direction, fasteners, and lubricating oil of the blade.
Adjust the depth of rotary tillage (usually 12-20cm).
Set the appropriate speed of the tractor (usually 540 revolutions per minute).
Rotary tillage operation:
Start the tractor and slowly lower the rotary tiller.
Keep moving forward at an appropriate speed to avoid overloading operations.
Ensure even cultivation and reduce speed appropriately when encountering hard soil.
Homework completion and maintenance:
Lift the rotary tiller, turn off the PTO, and turn off the engine.
Clean up the soil and weeds, and inspect the fasteners.
Store in a dry place, the blades can be coated with anti rust oil.
