Product OverviewOur 550 series intelligent crawler lawn mower comes in two variants, 550A (enclosed hood) and 550B (open bumper frame). It is a hybrid fuel-electric remote-controlled slope mower built for tough, hazardous terrain where manual mowing is dangerous and labor-intensive. Equipped with reliable Loncin 196 four-stroke gasoline engine + self-generating power system, paired with heavy-duty 32# engineering rubber tracks, this machine delivers stable traction on steep slopes, uneven ground, orchards, river banks, mountain pastures and green belts. You control it remotely from up to 500 meters away, staying safe while finishing mowing work efficiently.
✅ Hybrid Fuel-Electric Power System9.5 HP Loncin 196 four-stroke gasoline engine, built-in 2200W self-generator, 2×12.5A Chaowei 24V batteries. No frequent charging trouble; gasoline supplies continuous power, generator charges battery automatically during operation.
✅ Strong Slope Adaptability, Up to 50° ClimbingWide anti-slip rubber crawler tracks + low-center-of-gravity body design. Stable anti-rollover performance, perfect for steep hillsides, terraces, river embankments and rugged farmland.
✅ Long-Distance Wireless Remote Control (500m)Handheld remote controller supports forward/reverse, steering, high/low speed switching. Keep operators away from risky slopes and flying debris. Travel speed adjustable from 0–4 km/h.
✅ Electric Cutting Height AdjustmentCutting width: 550mm; cutting height adjustable electronically from 1cm to 20cm, easily switch for fine lawn trimming or rough weed clearing. Working efficiency up to 2200 m² per hour.
✅ Two Styles for Your Choice

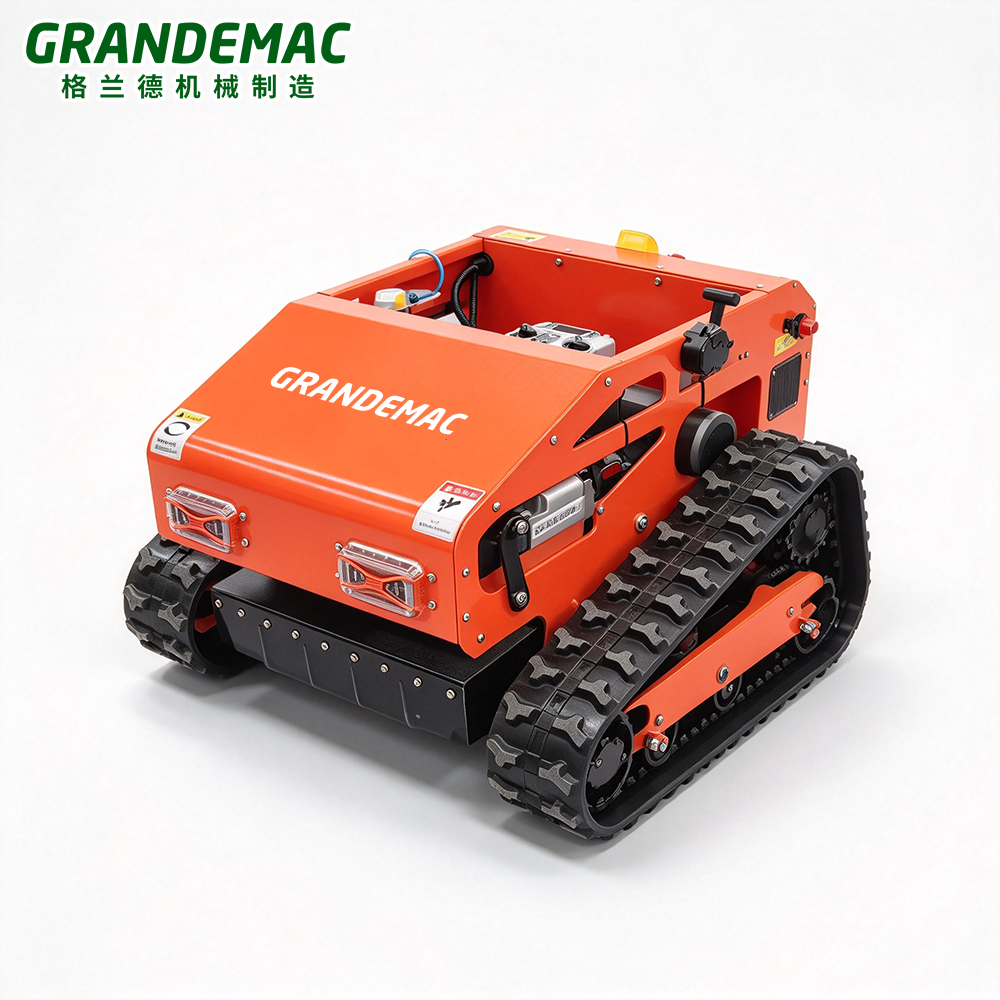

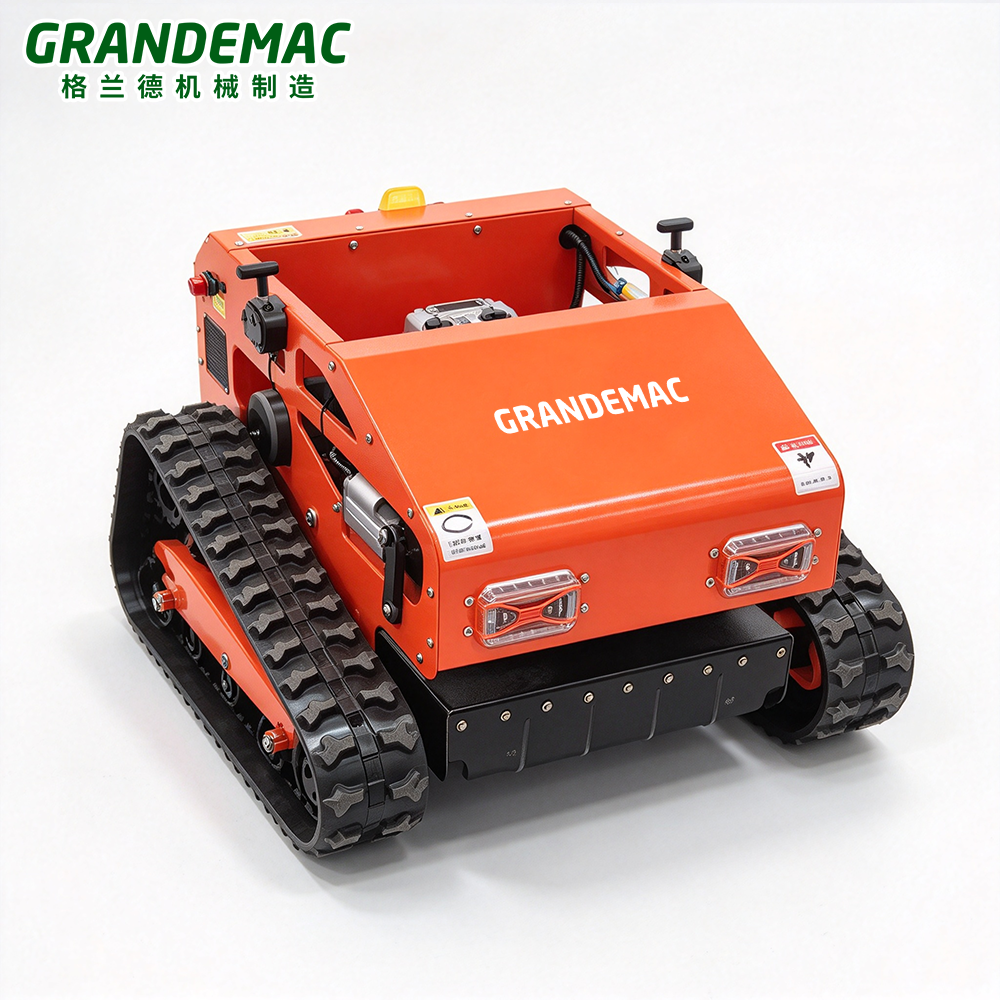

Model 550A: Fully enclosed protective cover, cleaner appearance, better dust and debris shielding.

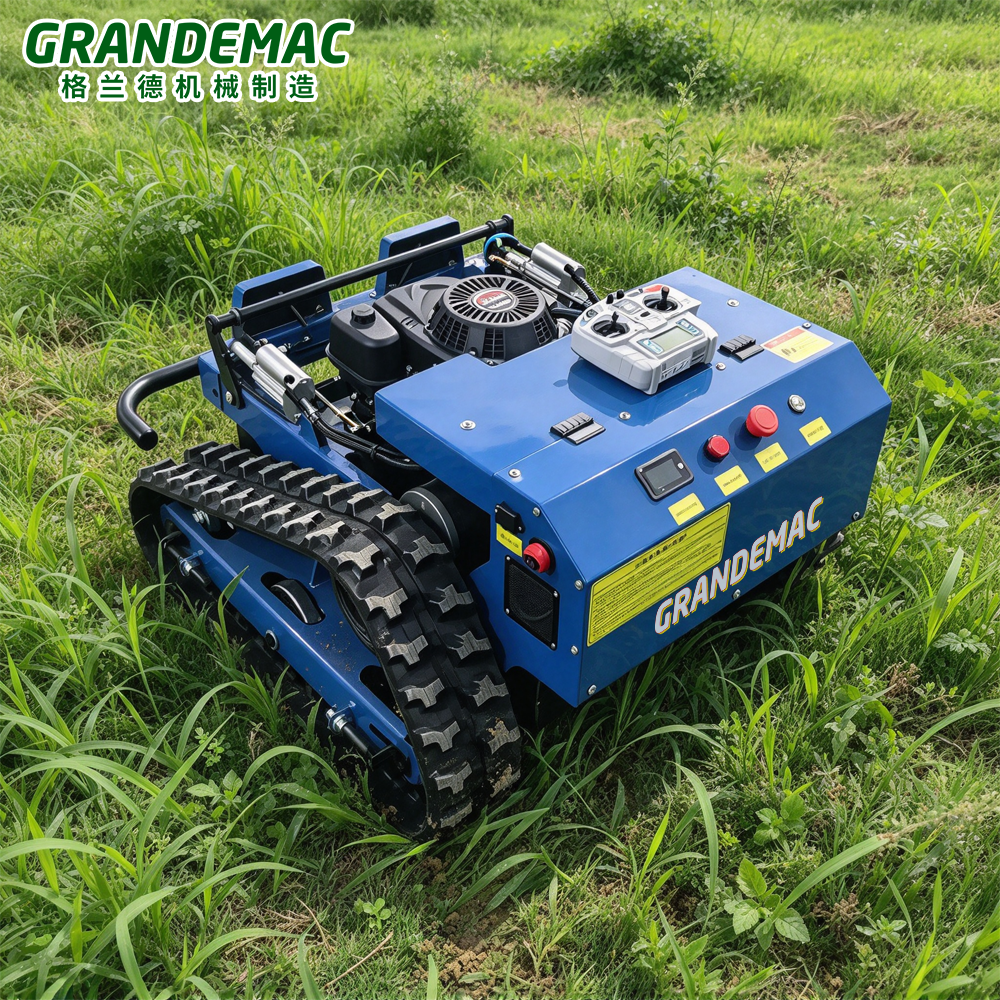

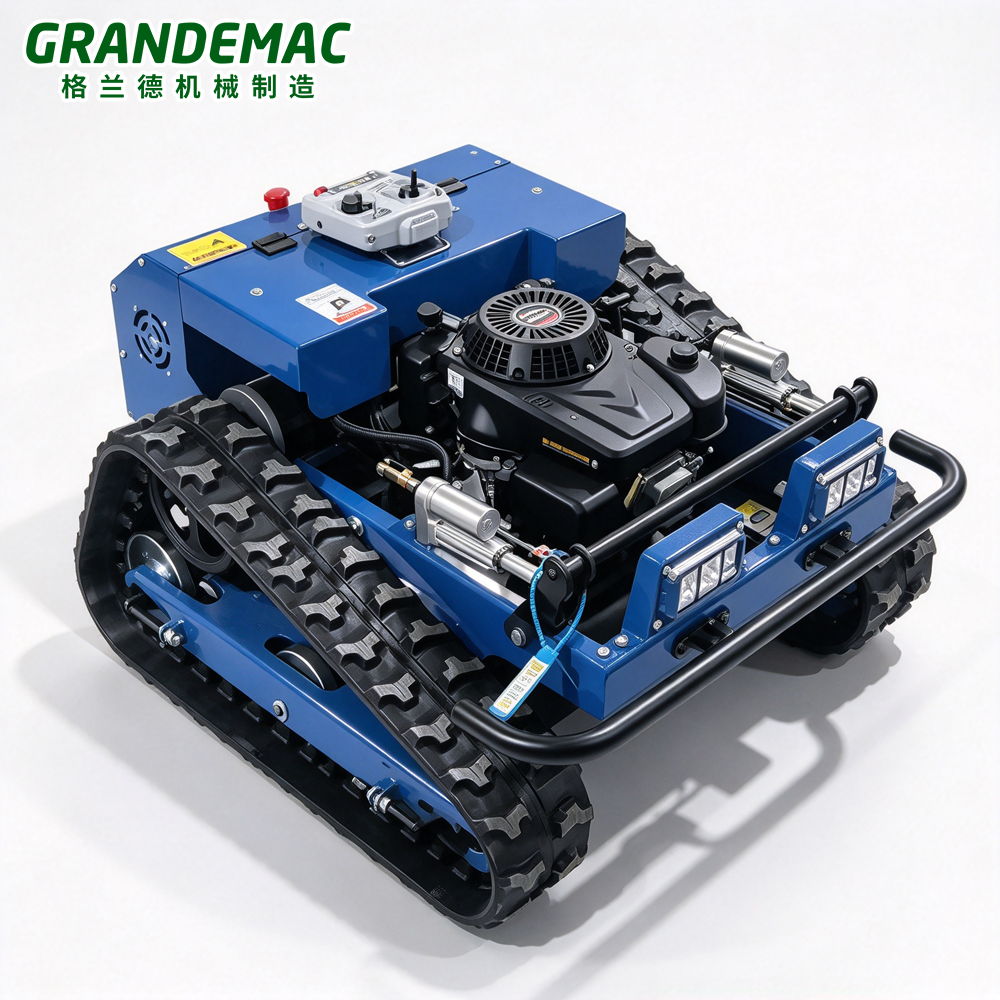

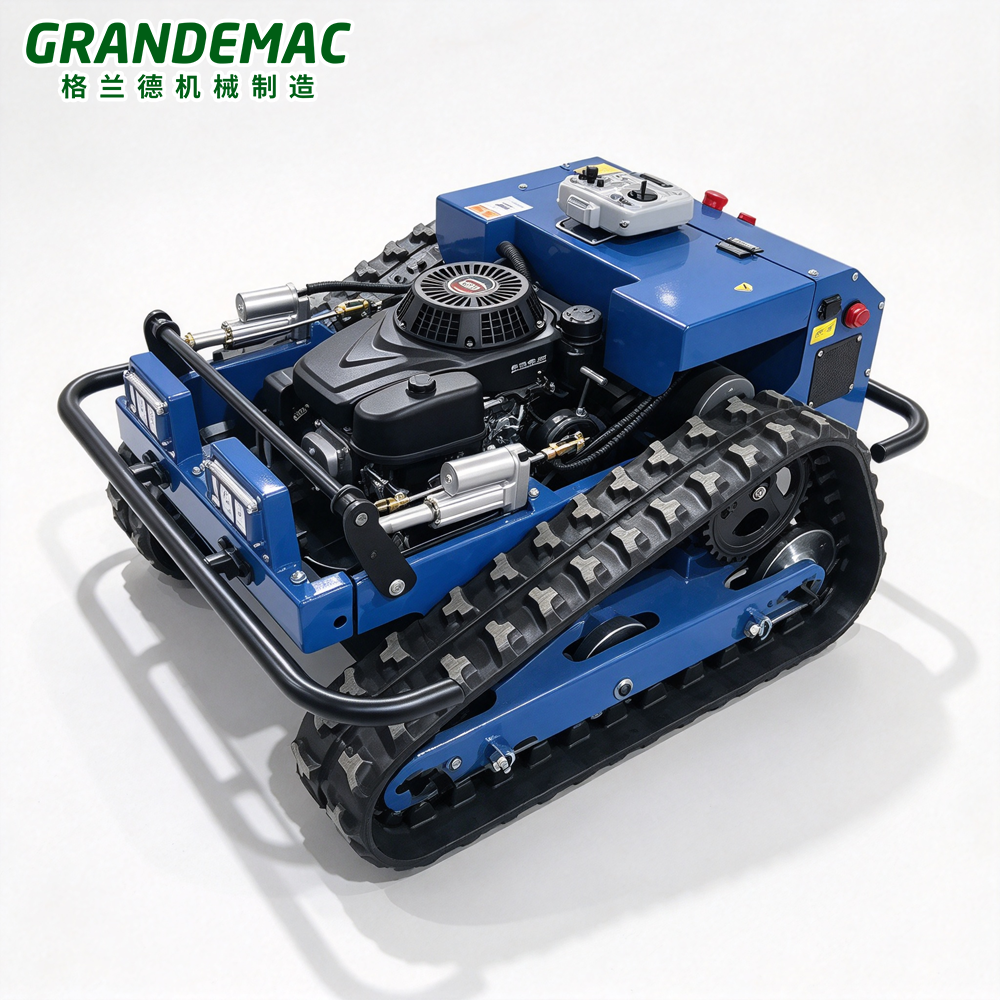

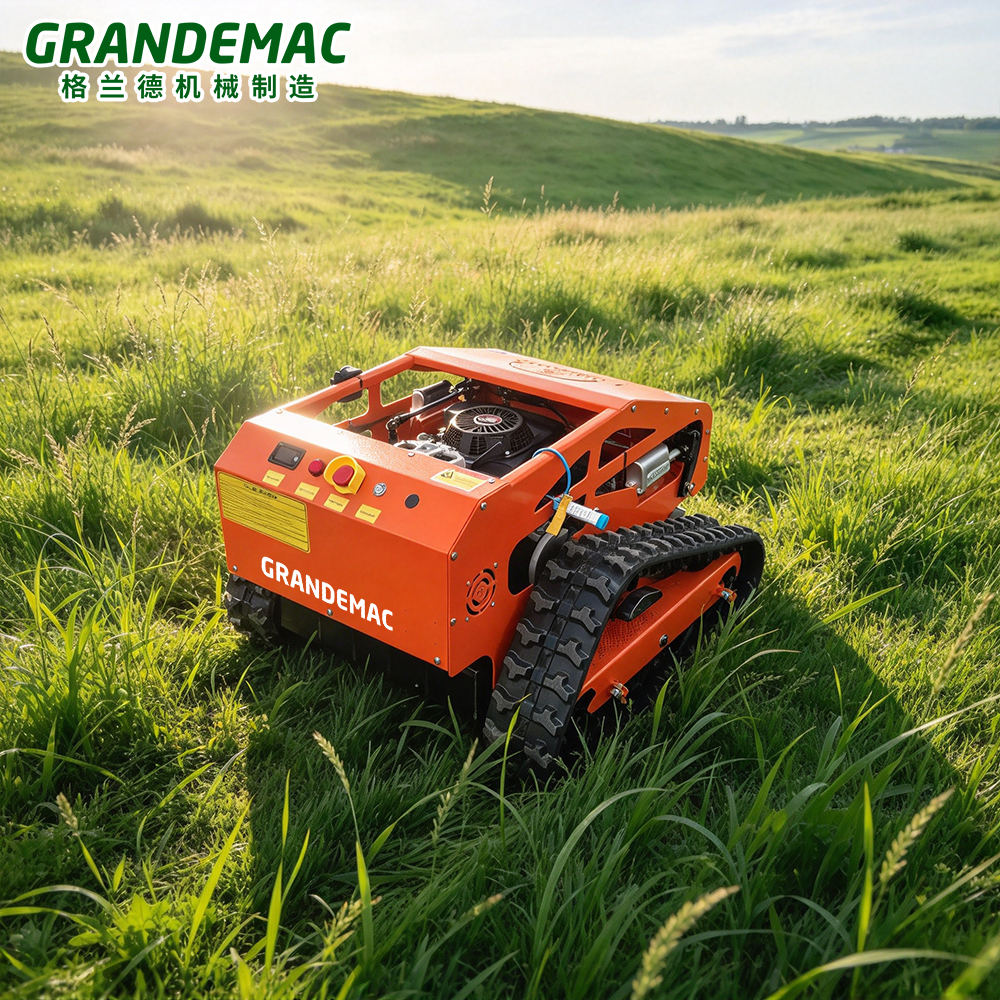

Model 550B: Open front bumper frame, convenient engine inspection & daily maintenance, great for heavy brush cutting scenarios.
✅ Durable Integrated Drive Gearbox800W×2 integrated gearbox drive system, solid structure, low failure rate, easy maintenance. Manual start as standard; electric start is optional.
Orchard grass management, hillside greening, reservoir & river embankment maintenance, solar farm weeding, highway slope landscaping, ranch & pasture trimming, villa complex wild grass clearance.
Technical Parameters
| Item | Parameter |
|---|---|
| Cutting Width | 550mm |
| Cutting Height | 1cm–20cm (Electric adjustment) |
| Power Type | Hybrid fuel-electric (manual throttle) |
| Engine | 9.5HP Loncin 196 four-stroke gasoline engine |
| Self-generator | 2200W built-in generator |
| Drive System | 800W×2 integrated gearbox |
| Track | 32# engineering rubber track |
| Built-in Battery | 2pcs 12.5A Chaowei, 24V |
| Start | Manual start / Electric start (optional) |
| Max Climbing Angle | 50 degrees |
| Remote Distance | 500m, high & low speed control |
| Travel Speed | 0–4 km/h |
| Working Efficiency | ≤2200 ㎡/h |
| Fuel Tank | 1.4L |
| Engine Oil Tank | 0.6L |
| Max Fuel Consumption | 2L/h |
| Overall Dimension | 940940550mm |
| Net Weight | 153kg |
| Package Size | 10301030820mm |
| Gross Weight with Package | 188kg |
User Guide
Quick Start Steps
Pre-check
Check gasoline level (92# / 95# unleaded petrol only), engine oil level, battery connection, track tension, blade fastening condition.
Confirm the emergency stop knob is reset.
Remote pairing
Turn on the machine main power; turn on remote controller, wait for signal connection. Remote control effective distance: up to 500m (line of sight).
Engine start
Manual start version: Adjust throttle properly, pull the recoil starter rope firmly.
Optional electric start version: Turn start key to ignite.
Start mowing
Adjust cutting height electronically from 1–20cm via remote.
Control forward / reverse / turn, switch high/low speed as needed. Working speed: 0–4km/h.
Stop operation
First stop blade rotation, then move mower to flat safe ground.
Idle engine for 30 seconds, then shut down engine, cut off main power.
Max climbing capacity: 50 degrees. Mow along the contour line of slope (horizontal direction), avoid going straight up and down steep slopes.
Reduce speed when turning on slopes; do not make sharp sudden turns.
If slipping occurs, release the forward throttle immediately and back slowly to flat ground.
After every use: Clean grass residue, mud on tracks, blade deck and air filter surface.
Every 10 working hours: Clean air filter element; check blade tightness and track tension.
First oil change: after 15 working hours. Subsequent oil change: every 50 working hours.
Spark plug: inspect & clean every 30h, replace every 100h.
Battery: Check terminals regularly; avoid over-discharge.
Drain gasoline from fuel tank and carburetor if storing over 30 days.
Fully charge batteries before storage, charge once every 3 months.
Clean the whole machine, keep in dry, ventilated room, away from direct sunlight and frost.
Store remote separately, remove its battery.
A: Same core parameters, power, cutting width and climbing performance. ✅ 550A: Fully enclosed cover, better dust and grass splash protection, cleaner look, suitable for orchard & fine green maintenance. ✅ 550B: Open front bumper frame, easier engine inspection and fast cleaning, better for heavy weed & brush cutting.
A: Max climbing angle is 50°. We suggest mowing horizontally along slope contour instead of vertical up-and-down for safer operation.
A: Yes, hybrid fuel-electric design. The Loncin 9.5HP gasoline engine drives cutting, meanwhile the built-in 2200W generator charges the 24V battery pack automatically while running. No stop for external charging during continuous work.
A: Use unleaded gasoline 92# or 95#. Do NOT use mixed oil, diesel or poor-quality fuel.
A: 500 meters under clear line-of-sight environment. Trees, hills, metal barriers will shorten remote signal distance. Always keep the machine within your sight.
A: Light drizzle is acceptable, but heavy rain, ponding and muddy ground are NOT recommended. Water may damage generator, battery and gearbox.
A: Mostly caused by bent, loose or damaged blades after hitting stones. Stop machine immediately, check and replace blades. Also check if grass clippings stuck under deck.
A: Up to 2200 ㎡ per hour under normal grass condition. It varies with grass thickness, slope angle and weed density.
A: We supply full spare parts: blades, tracks, batteries, air filter, spark plug, gearbox, remote controller. Warranty covers main engine for 12 months; wearing parts (blade, track, filter, belt) are not covered by warranty.
A: Yes, electric adjustment from 1cm to 20cm, operated on remote controller. Suitable for fine lawn or tall wild weeds.
A: Standard with manual recoil start; electric key start is optional extra.
