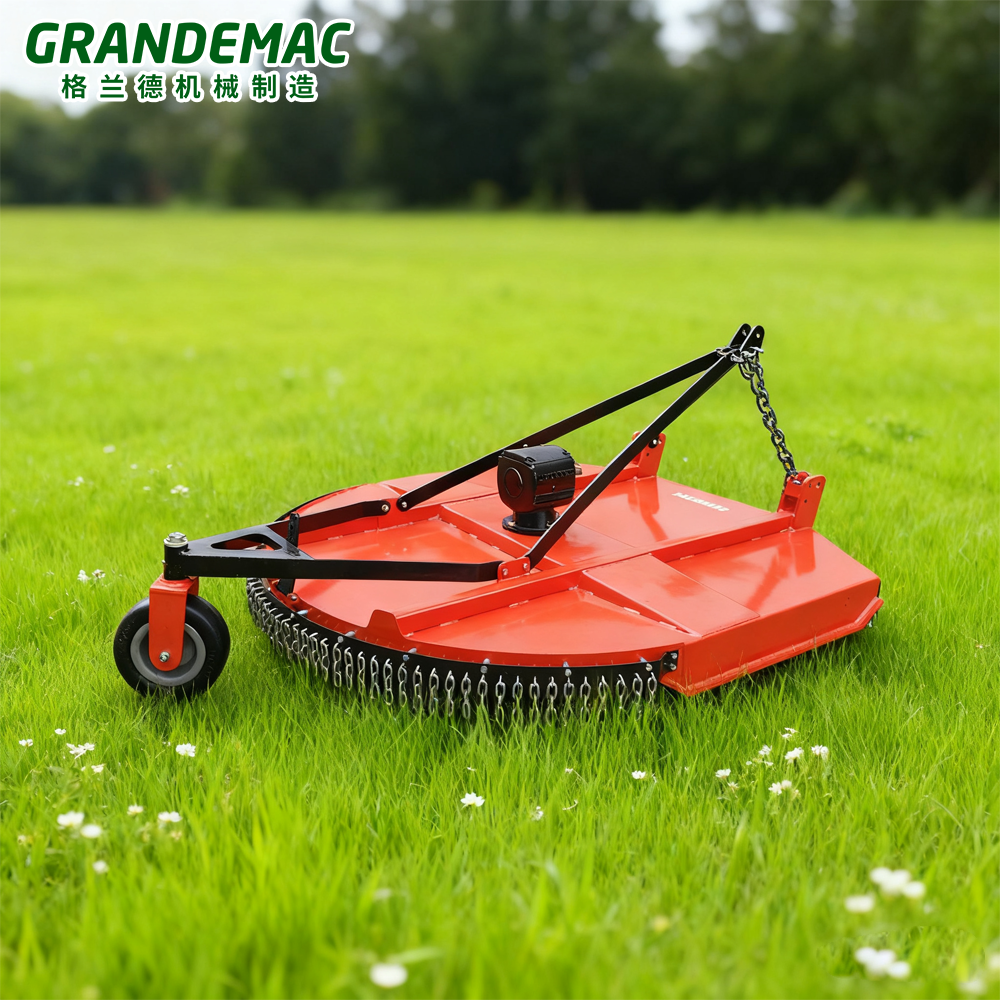

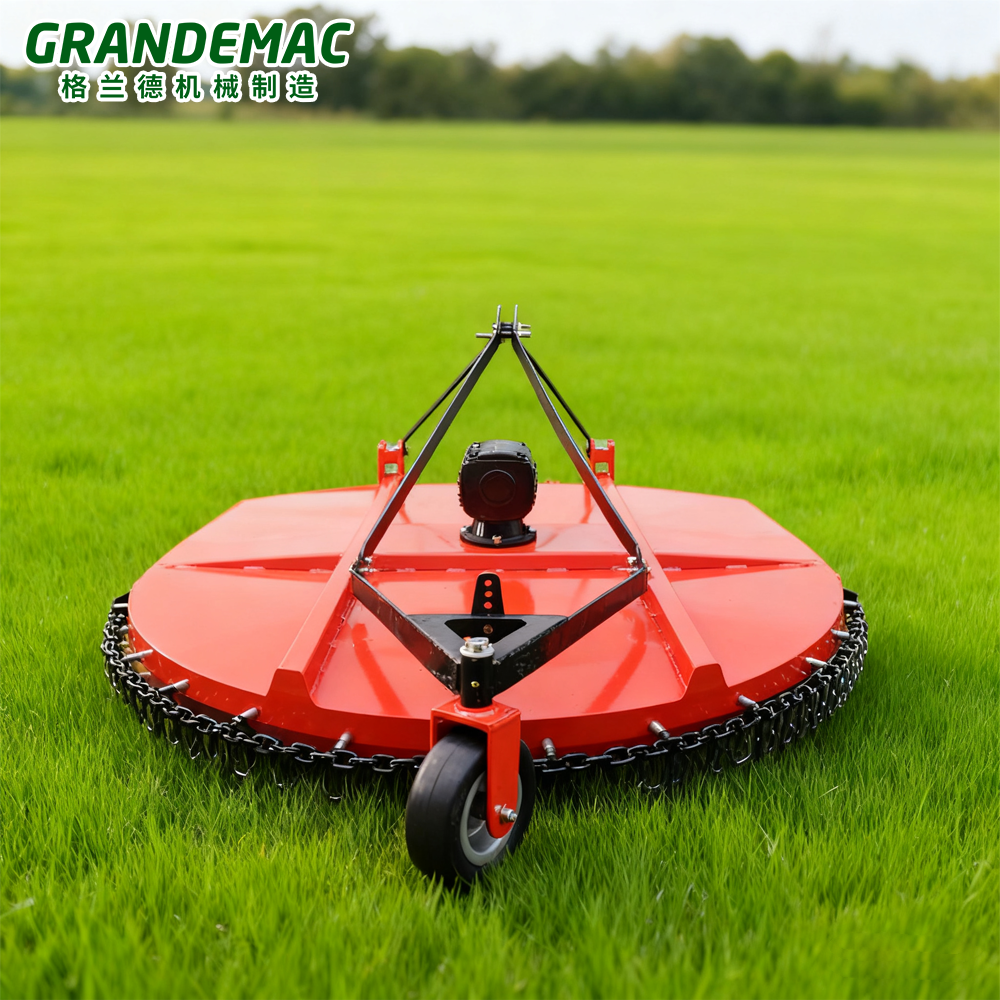

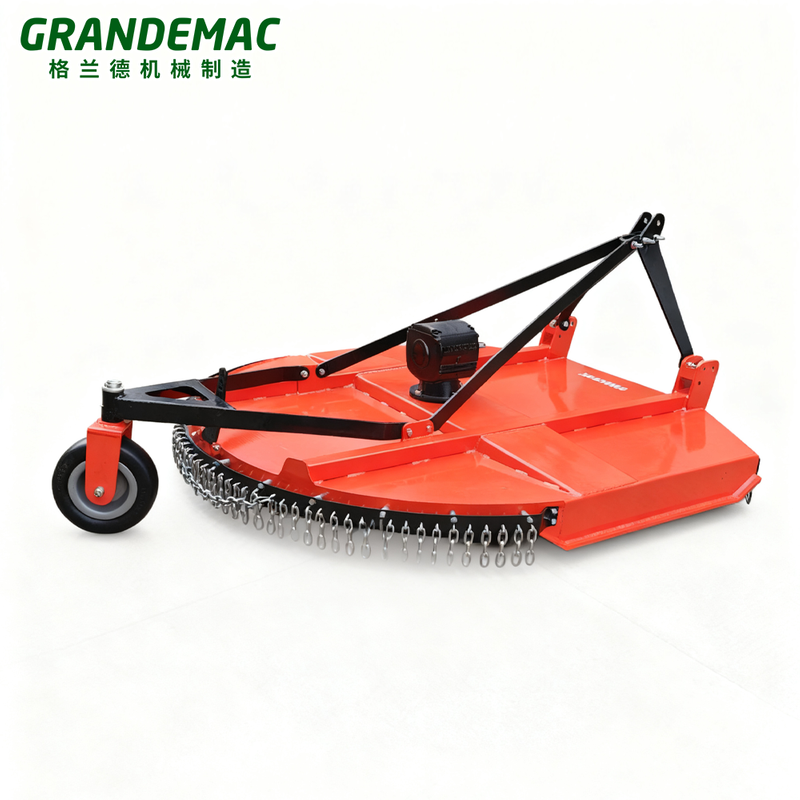

GLD2760
GRANDEMAC
| Quantity: | |
|---|---|
Product Advantage
Suitable for medium/large plots: A 60 inch cutting width can achieve good efficiency in larger grassland/pasture/field areas.
Sturdy structure/good impact resistance: Thick board and complete protective gear, suitable for use in complex environments such as grass, stones, slopes, and slopes.
Flexible adaptation to terrain: The floating structure, tail wheel support, sliding boots, and protective gear design enable it to maintain reasonable cutting on uneven ground.
Cleaner grass removal/reduced blockage: Round back design+good protective gear can reduce the risk of grass accumulation and blockage.
Tool protection capability: Mechanisms such as free swinging blade, bump jumper, and slide shoe can provide certain protection when encountering obstacles.
Wide range of power adaptation: It has certain adaptability to tractors of different power levels
Technical Parameters
| Specifications&Capacities | |
| Model Numbers | GLD2760 |
| Machine Weight | 955 lbs（433.2kg） With front and rear Single Chain Guards |
| Hitch | Category I or ll with floating top linkage,Quick Hitch ready |
| Cutting Width | 60"(1.52 m) |
| Overall Width | 67" (1.70 m) |
| Overall Length | 109"(2.77 m) |
| Deck Height(Bottom of Deck to Bottom of Skid Shoe) | 11 1/4" (28.6 cm) |
| Cutting Height | 1 1/2"- 12"(3.8cm-30.5 cm) |
| Cutting Capacity | 3" (7.6 cm) Diameter |
| Recommended Tractor hp | 35-130 hp (26.1-96.9 kw) |
| Power Take-Off Speed | 540 rpm |
| Gearbox | 540 rpm power take-off driven gearbox, 1:1.44 speed-up beveled gears, cast iron housing,1 3/8" (3.5 cm) - 6 spline input shaft and 2" (5.1 cm) outp shaft |
| Gearbox Lubricant | EP 80-90W oil |
| Gearbox oil Capacity | 7 pints (3.31 L) |
| Deck Construction | All welded deck |
| Deck Material Thickness | 10 Gauge(3.4 mm) |
| Side Skirt Material Thickness | 1/4"(6 mm) |
| Skid Construction | Replaceable bolt on skid shoes |
| Stump Jumper | 3/16"x 24*(0.5 cm x 61.0 cm) Round Pan |
| Blades (2) | 1/2" x 4" x25*(1.3 cm x 10.2 cm x63.5 cm) Heat treated alloy steel free-swinging high lift |
| Blade Bolts | Keyed with harden flat washers and locknuts. |
| Blade Tip Speed | 12,384 FPM (62.9 mps) |
| Driveline | ASAE Category 4 |
| Driveline Protection | 4 plate slip clutch |
| Tailwheel Mount Assembly | Welded A-arm and caster fork with 360 degree swivel |
| Tailwheel | 4.00" x 8" x 15" (10.2 cm x 20.3 cm x 38.1 cm) Laminated tire with cast iron hub and tapered roller bearings |
| Front Guard | Optional: Rubber Belting or Single Chain Guard |
| Rear Guard | Single Chain Guard |
Product Uses
Main application scenarios：

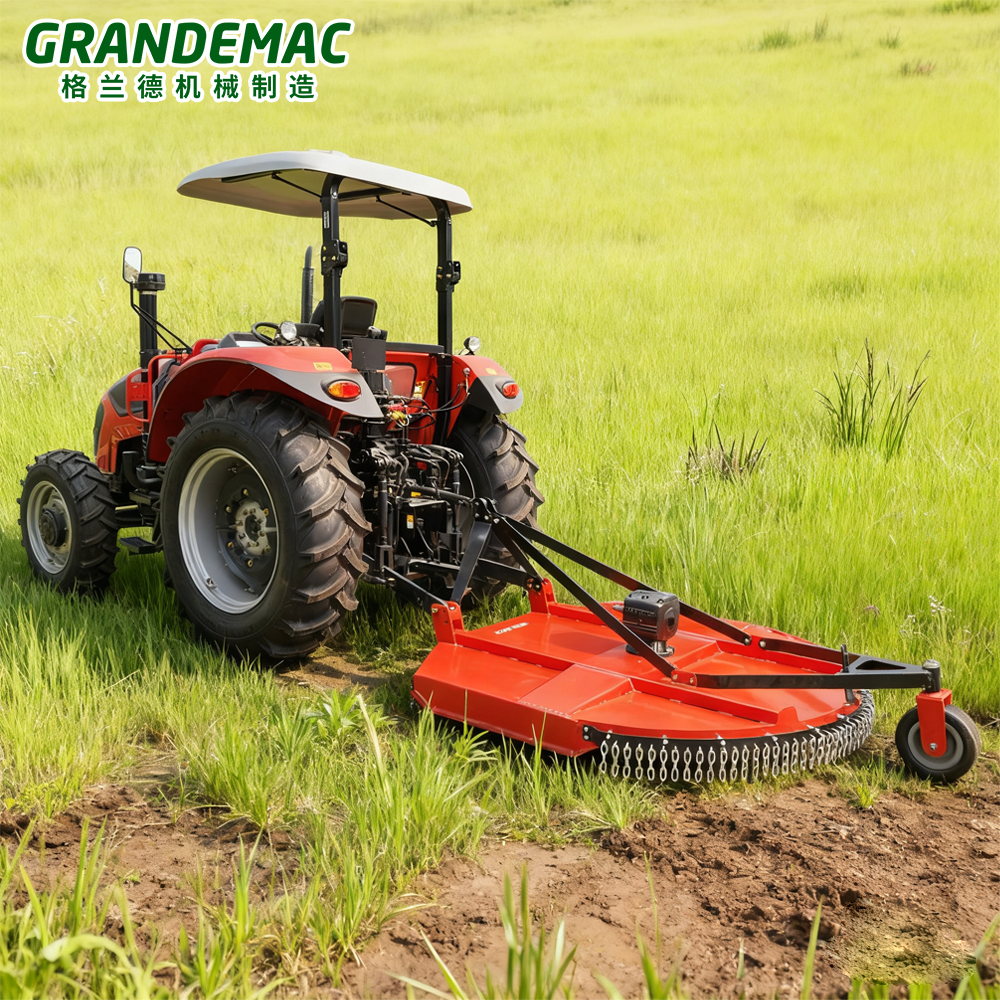

●Ranch and Grassland Maintenance:
In the pasture, GLD2760 can quickly trim excessively high grass, keep the pasture clean, promote grass regeneration, and reduce the environment for pest growth.
●Orchard and farmland boundary:
When used in orchards, tea gardens, or on the edge of farmland, lawn mowers can remove weeds between rows and overgrown vegetation on the edges, facilitating mechanical passage and fruit tree maintenance.
●Clearing of wasteland and miscellaneous irrigation:
This lawn mower has a thick disc and sturdy blades, which can effectively cut through thick stem weeds, shrubs, and even small diameter branches, making it very suitable for cultivating or cleaning uncultivated land.
●Road and embankment maintenance:
Used for lawn mowing operations on both sides of rural roads, drainage ditches, or embankment slopes, it can maintain a clear view, prevent weeds from blocking water or affecting drainage safety.
●Farm comprehensive site management:
The wide mowing ability of GLD2760 enables it to quickly complete the renovation of grasslands, yards, and open spaces in large-scale farms, making it an efficient site maintenance equipment.
Product Operate Guide
1、 Installation and preparation

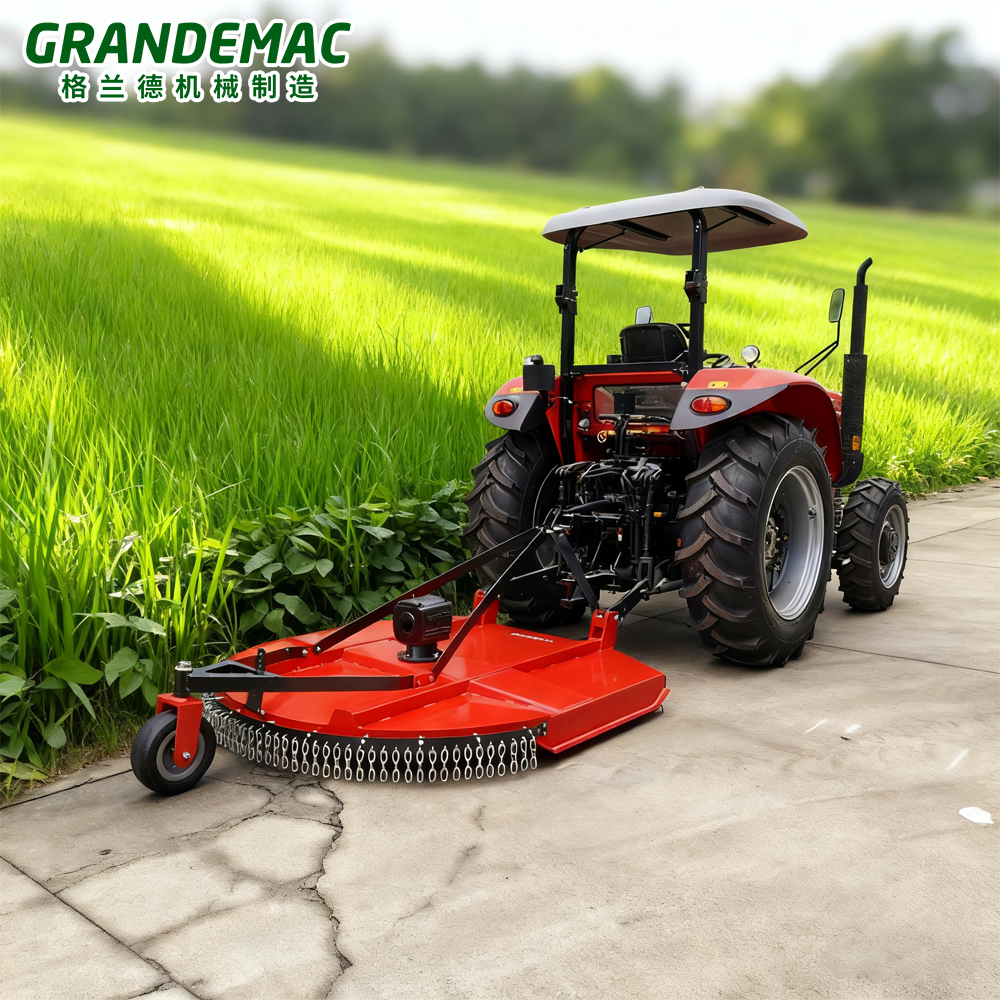

1. Connect tractor:
*Connect the lawn mower using the standard three-point suspension system (Category I or II).
*Ensure that the lower and upper connecting rods are securely fixed and the machine is level.
2. PTO power output:
*Confirm that the PTO speed of the tractor is 540 rpm.
*Check that the length of the universal drive shaft is appropriate and the joint lubrication is good.
3. Security check:
*Check if the blade is worn or loose.
*Ensure that the protective chain and cover are intact and undamaged.
2、 Homework operation
1. Before startup:
*Lay the lawn mower flat on the ground to ensure that no one approaches the equipment.
*Start the PTO at low speed to gradually reach the working speed of the cutterhead.
2. Homework height:
The mowing height is usually set at 5-15 centimeters (adjustable according to terrain and grass density).
3. Driving speed:
Generally maintain a speed of 4-8 kilometers per hour to ensure even and unobstructed mowing.
4. Obstacle avoidance handling:
When encountering rocks, tree roots, or potholes, the lawn mower should be lifted in advance to avoid blade damage.
3、 Post homework maintenance
1. Turn off the PTO and turn off the engine before cleaning and inspecting.
2. Remove the remaining grass and soil at the bottom of the cutterhead to prevent rusting.
3. Regularly lubricate the transmission shaft, gearbox, and suspension contacts.
4. Check the bolt fastening, blade sharpness, and oil seal leakage.
⚠️ 4、 Safety Tips
*It is strictly prohibited to stand or approach the rotating cutterhead during homework.
*Operate only on flat and safe surfaces.
*Avoid driving at high speeds on rainy days or slippery surfaces.
*Operators should wear protective gear (safety shoes, goggles).
Product Video
