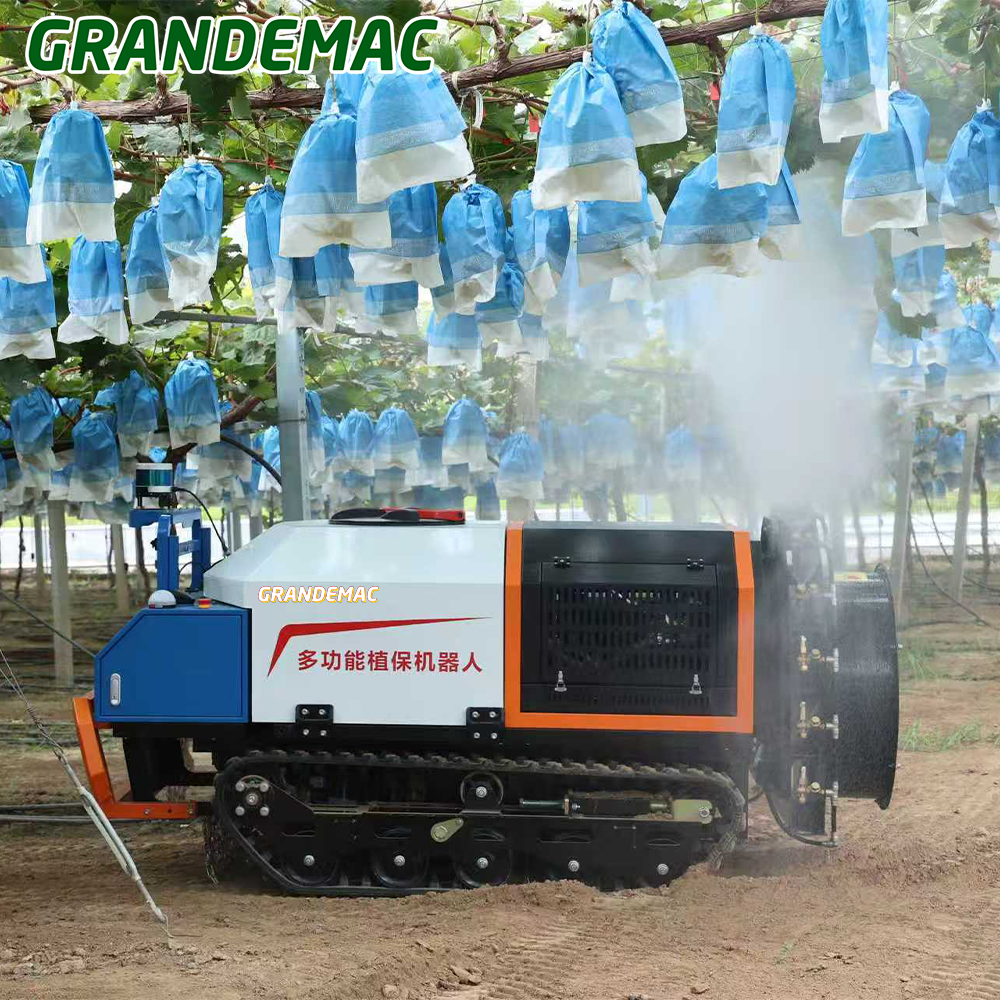

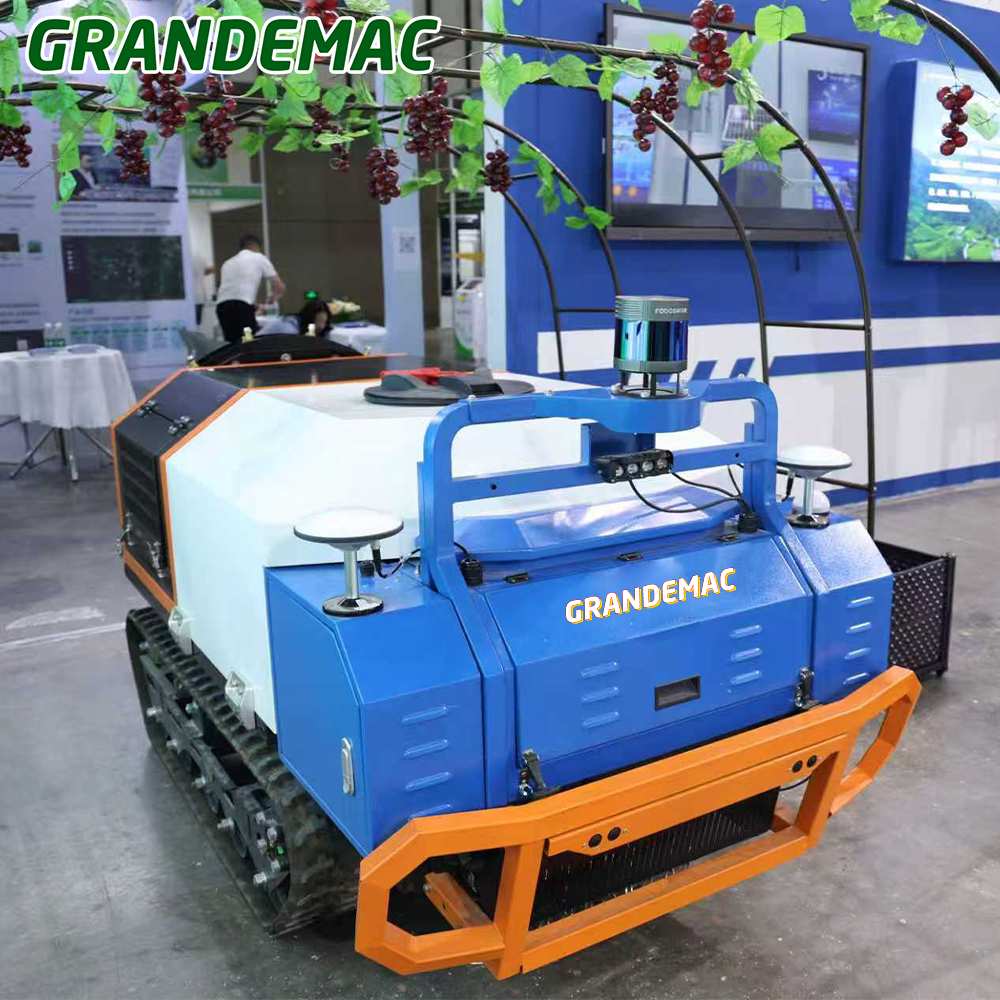

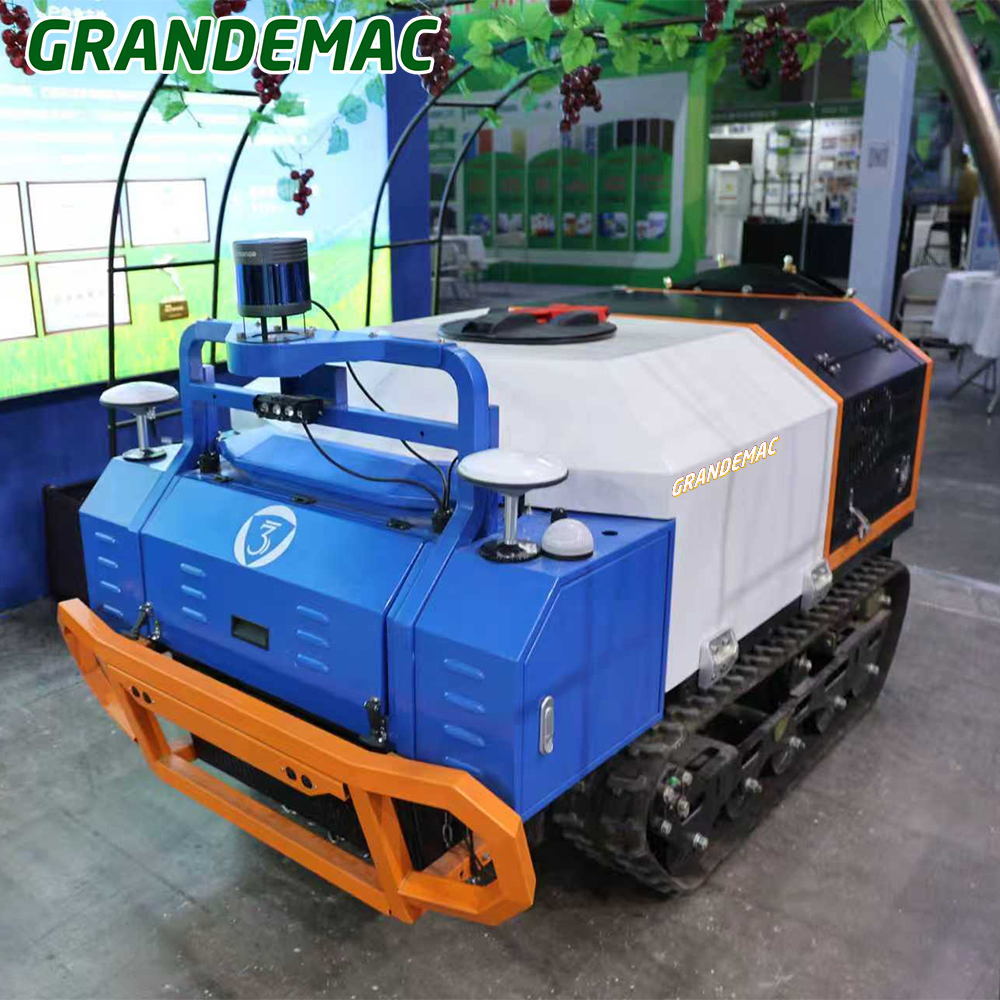

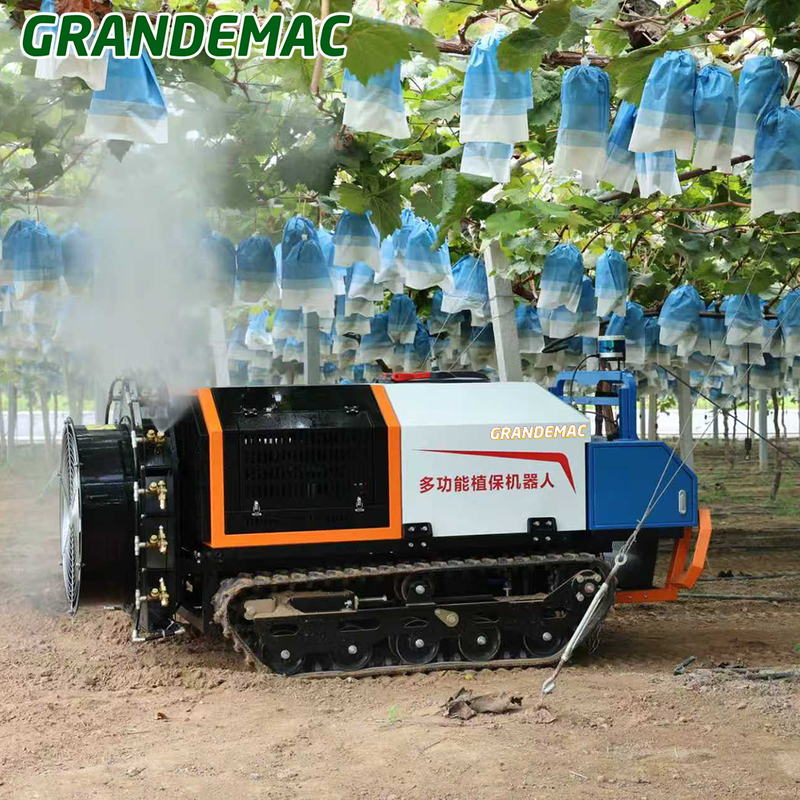

Orchard Plant Protection Robot
GRANDEMAC
| Quantity: | |
|---|---|
Product Introduction
Orchard plant protection robots integrate "intelligent management+precise spraying+safety and efficiency", and are important equipment for modern orchards to transform into digital agriculture and unmanned operations.
*Efficiency improvement, operating speed of 20 acres per hour, plant protection cycle of 7 days per time
*Cost reducing and efficiency enhancing drugs save 10L/acre, increase yield by 10% per acre
*Intelligent management and automatic inspection: monitoring of pests and diseases
*Save about 90% of labor (replace manual labor) Cloud monitoring: remote decision support
Product Advantage
Orchard plant protection robots are very practical intelligent devices in modern orchard management, integrating automation, precision, and efficiency. The following are the main advantages:
① Large capacity medicine box
The orchard plant protection robot is equipped with a large capacity 350L medicine box (or customized with a larger capacity), which can cover a larger working area with one dose, reducing the trouble of frequent dosing, improving work continuity and efficiency, and is particularly suitable for spraying tasks in large orchards.

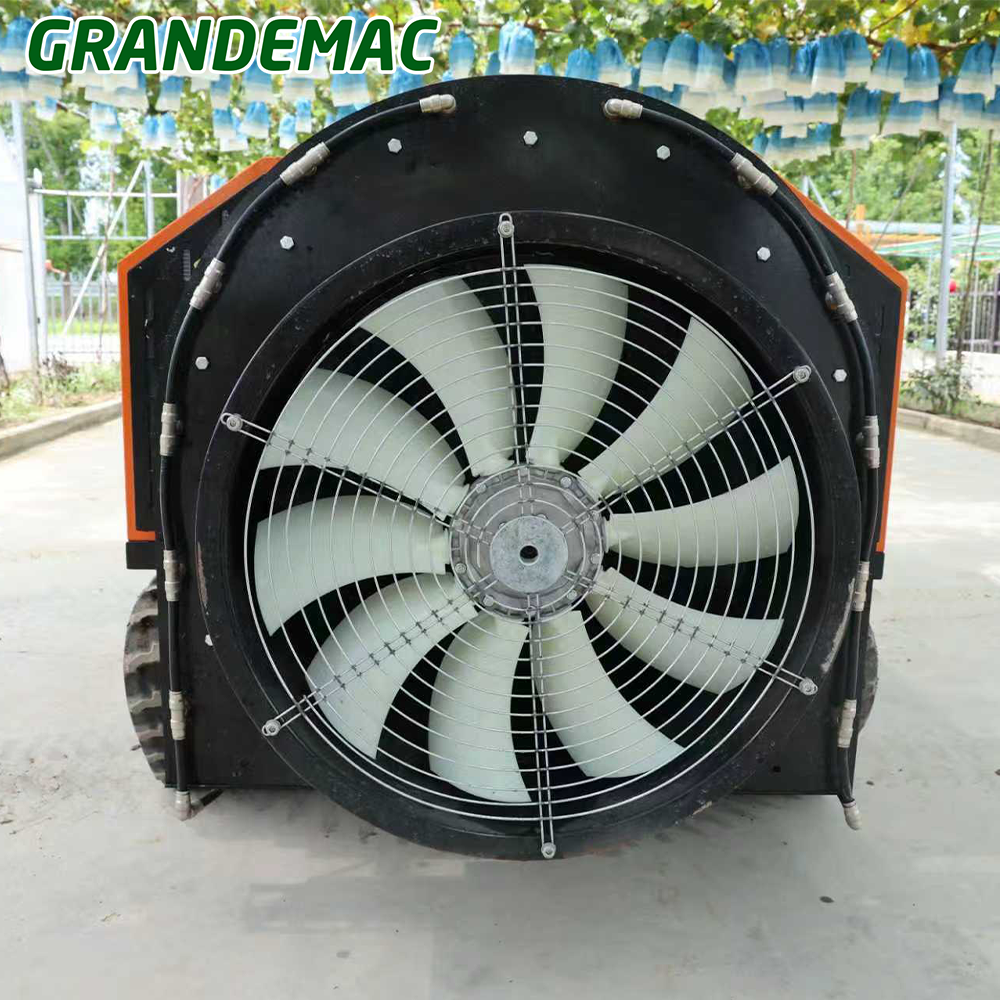

② Long spraying range and uniform atomization
By using high-pressure atomizing nozzles and intelligent spraying systems, the droplets of the medicinal solution are delicate and evenly distributed, allowing for long-distance spraying up to 10 meters. The medicinal solution can fully cover the leaves, branches, and fruits of fruit trees, improving control effectiveness and reducing pesticide waste.
③ Smart platform management
Built in digital management platform, which can monitor job status, medication consumption, path recording and other information in real time through mobile app or computer terminal. Support data upload and job statistics to achieve visualization, traceability, and intelligent management of agricultural spraying.
④ Clever volume
The body design is compact and flexible, with a small turning radius, suitable for operation in rows of fruit trees, hilly areas, or narrow plots. Compared to traditional crop protection machinery, it is easier to pass through areas with dense branches and leaves, and the operation is more flexible and efficient.
⑤ Remote control operation
Supports wireless remote control or mobile control, allowing operators to complete operations from a safe distance, reducing the risk of pesticide exposure; Some models also have one click start stop and switch operation modes, making it easy to operate.
⑥ Intelligent obstacle avoidance system
Equipped with visual sensors, it can automatically identify obstacles such as fruit trees, rocks, ditches, etc., intelligently plan paths and avoid obstacles during driving, ensuring safe and stable operations.
⑦ Long endurance capability
Using high-energy density lithium batteries, it can operate continuously for up to 4 hours on a single charge, meeting the continuous spraying needs of large-scale orchards.
⑧ Self directed homework function
It can achieve automatic route planning, autonomous driving, and spraying without the need for manual follow-up, significantly reducing labor costs.
Technical Parameters
| Orchard Plant Protection Robot | |
| Overall dimensions: | 2200*1100*950mm |
| Empty weight: | 450KG |
| Power type: | Motor direct drive |
| Control method: | Wireless remote control, autonomous cruise control |
| Power of walking motor: | 1.5kW |
| Spray motor power: | 1.5kW+2.5kW |
| Maximum driving speed: | 3.6km/h |
| Remote control effective distance: | ≤10m |
| Hundred meter straight line error: | ≤5cm |
| Minimum turning radius: | 0 (can rotate in place) |
| Single application time: | 20min |
| Maximum homework efficiency: | 20 acres per hour |
| Medicine box capacity: | 350L (customizable) |
| Spray height: | ≥5m |
| Number of nozzles: | 12 of them |
| Atomization effect: | 150-400μm |
| Cruise control: | have |
| Maximum load capacity: | 1000kg |
| Working temperature: | -15℃-50℃ |
| Climbing ability: | ≥25° |
| Battery life: | ≥4h |
Product usage scenarios
Multi scenario application improves transportation efficiency
Citrus orchard,
apple orchard,
peach orchard
Flower Nursery Facilities Vineyard
1. who are we?
We are based in Jiangsu, China, start from 2019, sell to Africa(60.00%), South America(30.00%), Domestic Market(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
3. What can you buy from us?
Kubota Rice Combine Harvester, Kubota Tractor, Rotary Cultivator, World Rice Combine Harvester, Rice Transplanters.
4. What's your Payment terms?
30% payment in advance by TT, 70% balance before delivery.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery；
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, Western Union, Cash;
Language Spoken: English, Chinese, Spanish
