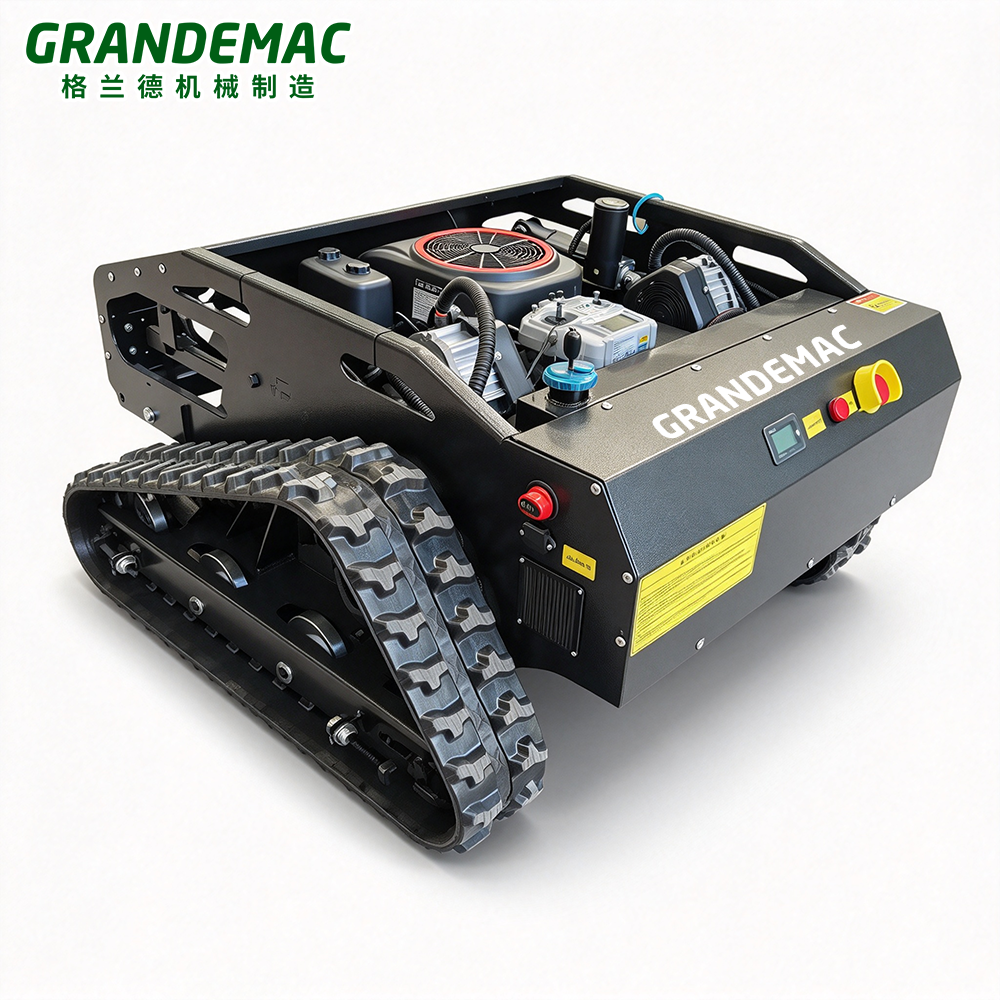

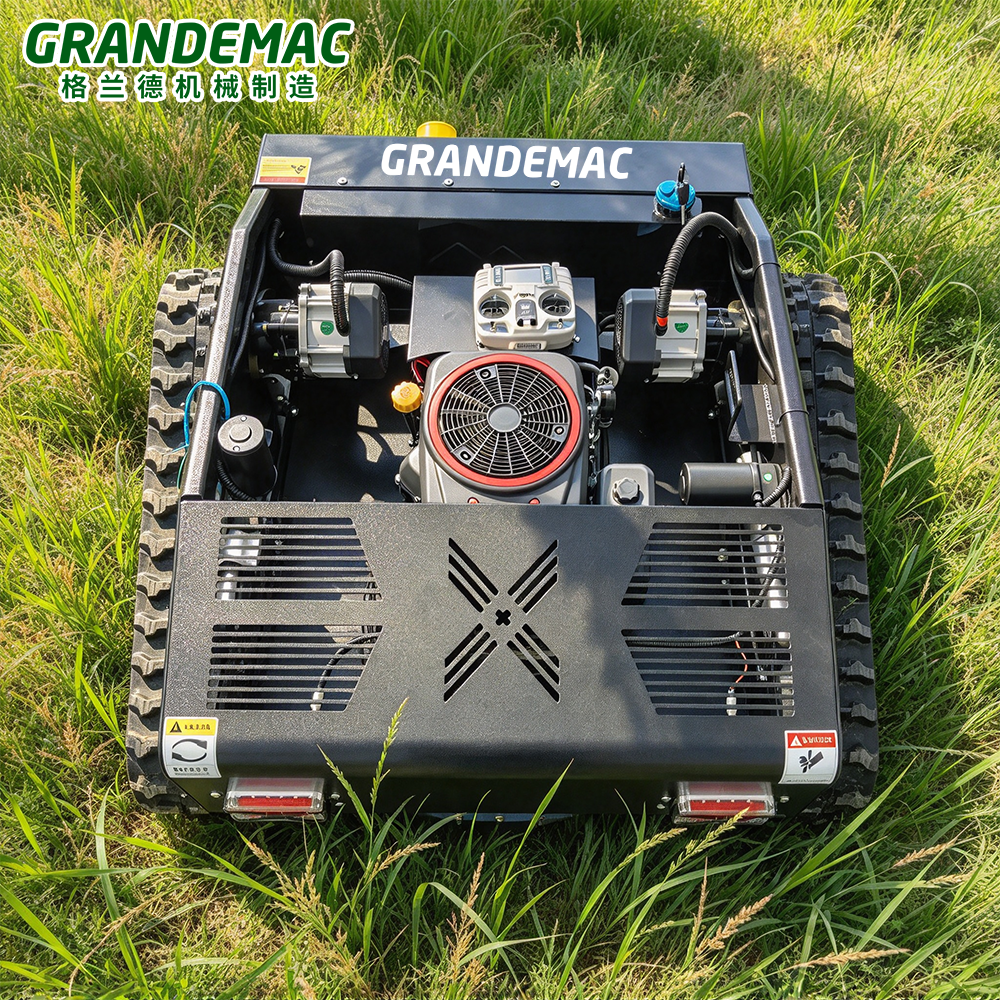

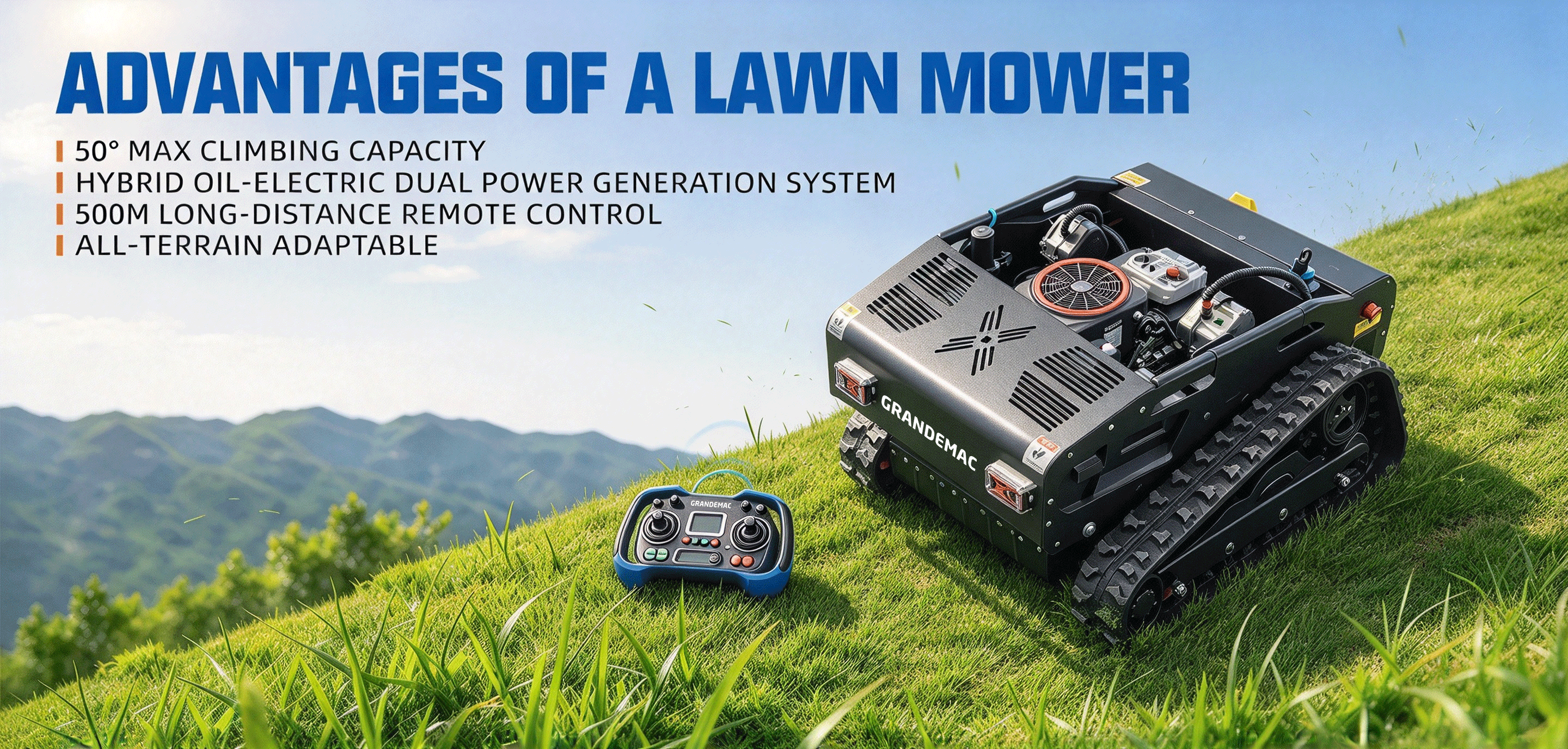

This GRANDEMAC 800 series intelligent crawler remote lawn mower is an upgraded heavy-duty hybrid slope mower, built for large-area weed clearing on steep terrain. Powered by a reliable 16HP Loncin 452 four-stroke gasoline engine with dual self-generation system and built-in 2500W generator, it delivers steady continuous power without frequent external charging. The heavy-duty 37# engineering rubber tracks offer outstanding grip, supporting stable operation on slopes up to 50 degrees. With an 800mm wide cutting deck and electric cutting height adjustment from 1cm to 20cm, it reaches working efficiency up to 3200㎡ per hour, perfect for large orchards, vineyards, reservoir embankments, highway slopes and solar power stations. Operate safely from up to 500 meters away with the wireless remote controller.
✅ 16HP Loncin Engine + Dual Self-generating Hybrid SystemStrong 16 HP Loncin 452 four-stroke gasoline engine, dual power generation design, built-in 2500W generator. It charges the 24V battery pack automatically while working. No range limit like fully electric mowers, supports long-hour continuous heavy work.
✅ 800mm Wide Cutting Width, High EfficiencyCutting width up to 800mm, working efficiency ≤3200㎡/h. Electric adjustment of cutting height from 1cm to 20cm, flexible for lawn trimming and thick wild weed removal.
✅ 50° Super Climbing Capacity, Anti-slip Crawler Chassis37# thickened engineering rubber tracks + low center of gravity structure. Excellent traction on slippery, rugged, steep hillsides. Great for dangerous slope jobs where manual cutting is risky.
✅ 500m Long-distance Remote Control, Electric Start Standard500-meter line-of-sight remote control with high/low speed switch, travel speed 0–4 km/h. Electric start comes as standard, easier ignition than recoil start.
✅ Split Transmission, Durable for Heavy Load1000W*2 split transmission gearbox, stable output, strong overload resistance, less failure rate for long-time heavy weed clearing.
Large orchard & vineyard grass management, hillside greening, river & reservoir embankment maintenance, solar farm slope weeding, highway slope landscaping, large pasture and wild land clearing.

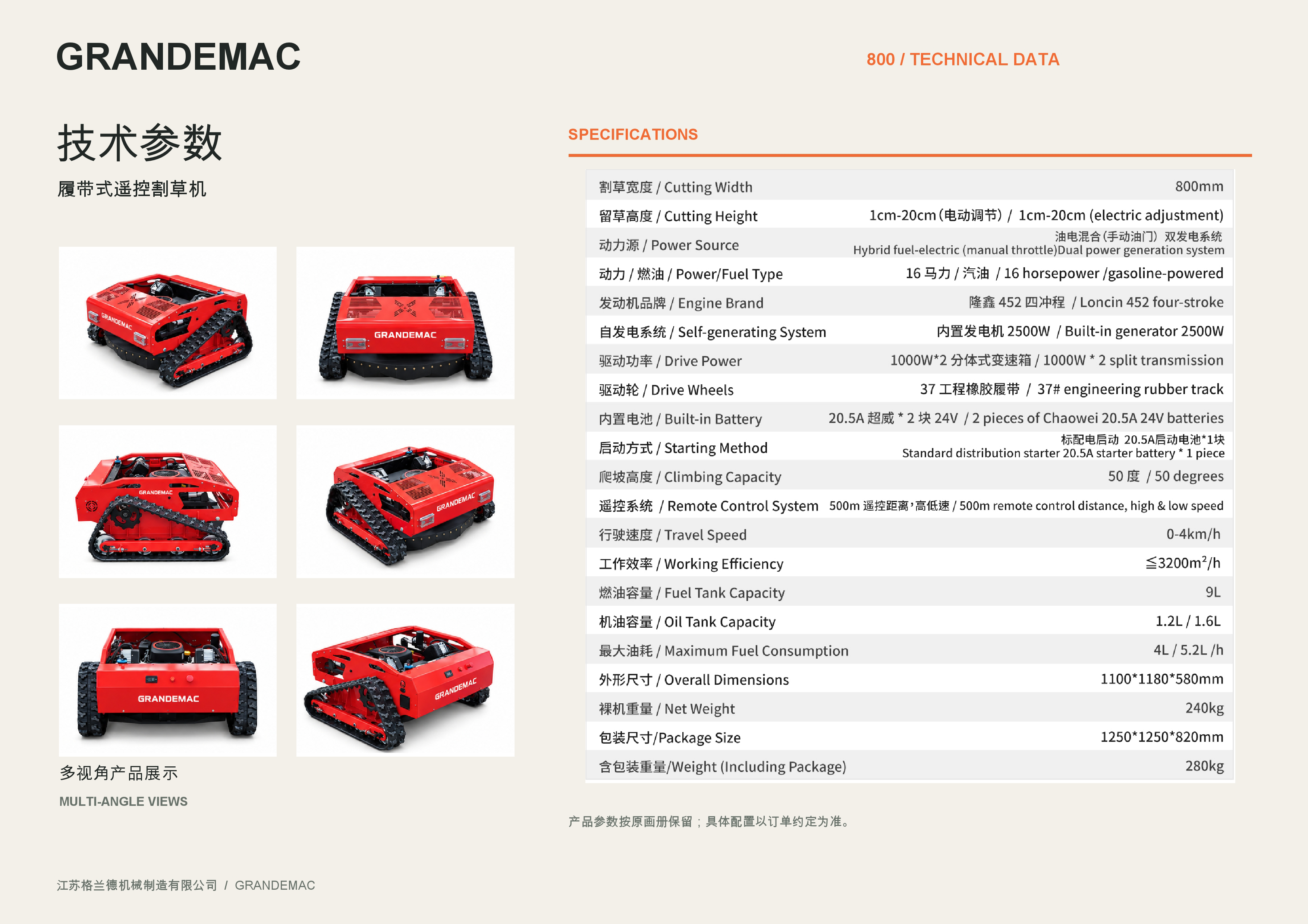

Technical Parameters
| Item | Parameter |
|---|---|
| Cutting Width | 800mm |
| Cutting Height | 1cm–20cm (Electric adjustment) |
| Power Source | Hybrid fuel-electric (manual throttle), Dual power generation system |
| Engine | 16HP Loncin 452 four-stroke gasoline engine |
| Built-in Generator | 2500W |
| Drive System | 1000W*2 split transmission |
| Track | 37# engineering rubber track |
| Built-in Battery | 2pcs 20.5A Chaowei, 24V |
| Starter | Electric start standard (with 20.5A starter battery) |
| Max Climbing Angle | 50 degrees |
| Remote Distance | 500m, high & low speed |
| Travel Speed | 0–4 km/h |
| Working Efficiency | ≤3200 ㎡/h |
| Fuel Tank | 9L |
| Engine Oil Tank | 1.2L / 1.6L |
| Max Fuel Consumption | 4L / 5.2L/h |
| Overall Dimension | 11001180580mm |
| Net Weight | 240kg |
| Package Size | 12501250820mm |
| Gross Weight | 280kg |
User Guide
Heavy-duty 16HP tracked slope mower
Read this guide fully before operation. Do not stand directly in front of the machine on slopes. Stay at least 10m away and operate only within line of sight of the mower.
Wear safety goggles, anti-slip gloves and closed non-slip footwear. Avoid loose clothing that may catch blades.
Clear the working area of stones, metal scraps, wires and branches before mowing to prevent blade damage and flying debris.
Do NOT operate in heavy rain, flooded or muddy ground. Water will damage generator, battery and transmission components.
Press the emergency stop button immediately once abnormal conditions occur. The engine and blades will stop right away.
Keep children, livestock and bystanders far away from the working zone.
Check gasoline level (92# /95# unleaded petrol only), engine oil level.
Check battery terminals, track tension, blade fastening status.
Confirm the emergency stop knob is reset.
Turn on the main power switch of the machine. Power on the remote controller and wait for signal pairing. Effective remote distance: up to 500m (line of sight).
Adjust throttle properly, turn the start key to ignite the Loncin engine.
Adjust cutting height electrically from 1cm to 20cm via remote according to grass condition.
Control forward/reverse/turning, switch high/low speed. Travel speed range: 0–4 km/h.
After finishing work: stop the blades first, drive the mower to flat ground, idle for 30 seconds, shut down engine and cut off main power.
Max climbing angle: 50°. Mow horizontally along the slope contour line instead of straight up and down.
Slow down when turning on slopes; avoid sharp sudden turns.
If slipping happens, release forward throttle immediately and back slowly to flat ground.
After each use: Clean grass residue and mud from tracks, cutter deck and air filter.
Every 10 working hours: Inspect air filter, check blade tightness and track tension.
First engine oil change: after 15 working hours. Subsequent oil change: every 50 working hours.
Spark plug: inspect & clean every 30 working hours, replace every 100 hours.
Batteries: Check terminals regularly, avoid deep discharge.
Drain gasoline from fuel tank and carburetor if stored long term.
Fully charge batteries before storage; recharge once every 3 months.
Clean the whole machine, store in dry, ventilated room away from frost and direct sunlight.
Remove batteries from remote controller.
Q1: What is the difference between this 800 model and the 550 series?
A: The 800 model is heavy-duty upgraded version. It has 16HP Loncin engine, 800mm cutting width (vs 550mm), dual power generation system, split transmission, larger 9L fuel tank, higher working efficiency up to 3200㎡/h, and electric start as standard. It is designed for larger orchards and heavier weed clearing jobs.
Q2: How steep slope can this mower work?
A: Max climbing angle is 50 degrees. We strongly recommend mowing horizontally along contour lines for safety. Do not drive straight up and down steep slopes.
Q3: What is dual power generation hybrid system?
A: The 16HP Loncin gasoline engine drives cutting work. Meanwhile the built-in 2500W generator charges the 24V battery pack automatically during operation. No need to stop work for external charging, supporting long continuous heavy workload.
Q4: What fuel should I use?
A: Use 92# or 95# unleaded gasoline. Diesel, mixed oil and poor-quality fuel are forbidden.
Q5: What is the remote control range?
A: 500 meters under clear line-of-sight. Trees, hills and metal barriers will shorten signal distance. Always keep the machine visible.
Q6: Is electric start standard?
A: Yes, electric start comes standard for the 800 model, equipped with independent 20.5A starter battery.
Q7: How much area can it cut per hour?
A: Up to 3200 ㎡ per hour under normal grass condition. Actual efficiency drops with thicker weeds, dense brush and steep slopes.
Q8: Can I adjust cutting height?
A: Yes, electric adjustment from 1cm to 20cm via remote controller, suitable for lawn trimming and thick wild weeds.
Q9: Spare parts and warranty?
A: We supply full spare parts: blades, rubber tracks, batteries, air filter, spark plug, transmission, remote controller. Main engine 12-month warranty; wearing parts (blade, track, filter etc.) are not covered by warranty.
Q10: Can I use it in rainy weather?
A: Light drizzle is acceptable. Heavy rain, ponding and muddy land are not allowed, which may damage electric and generator parts.
