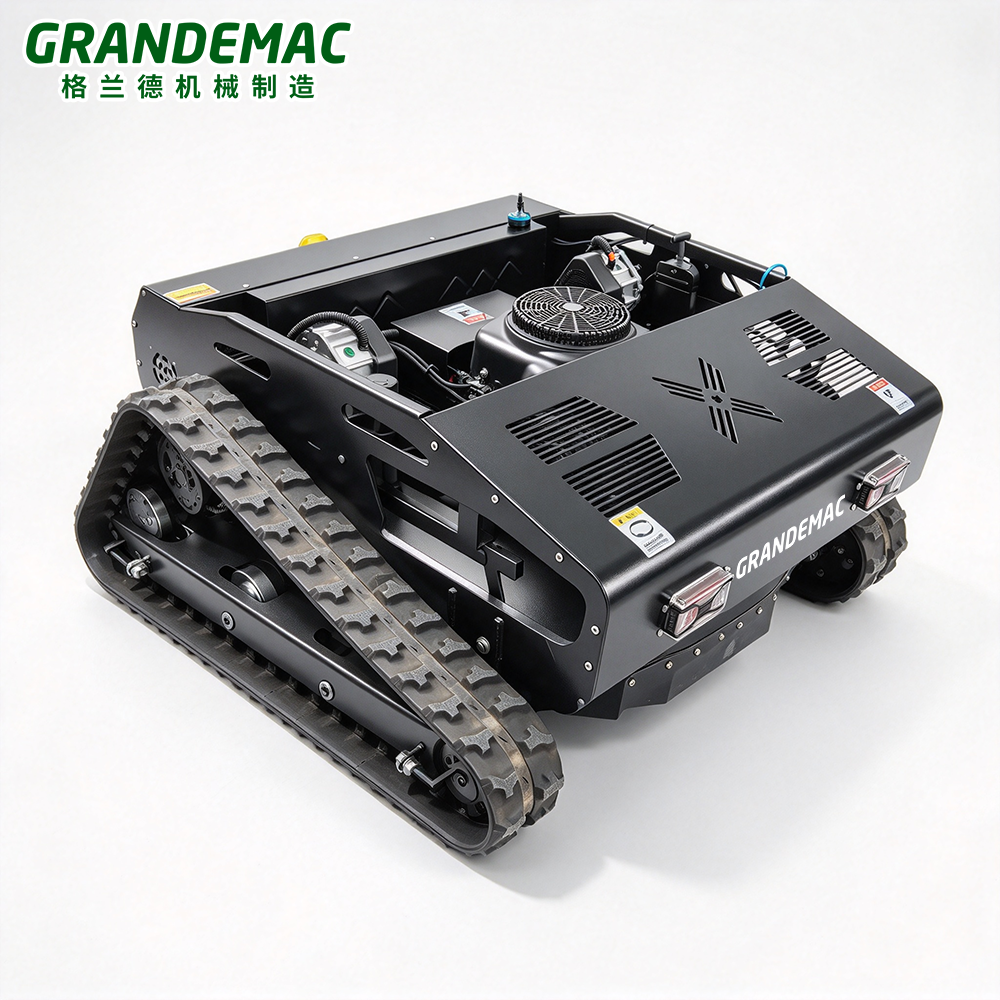

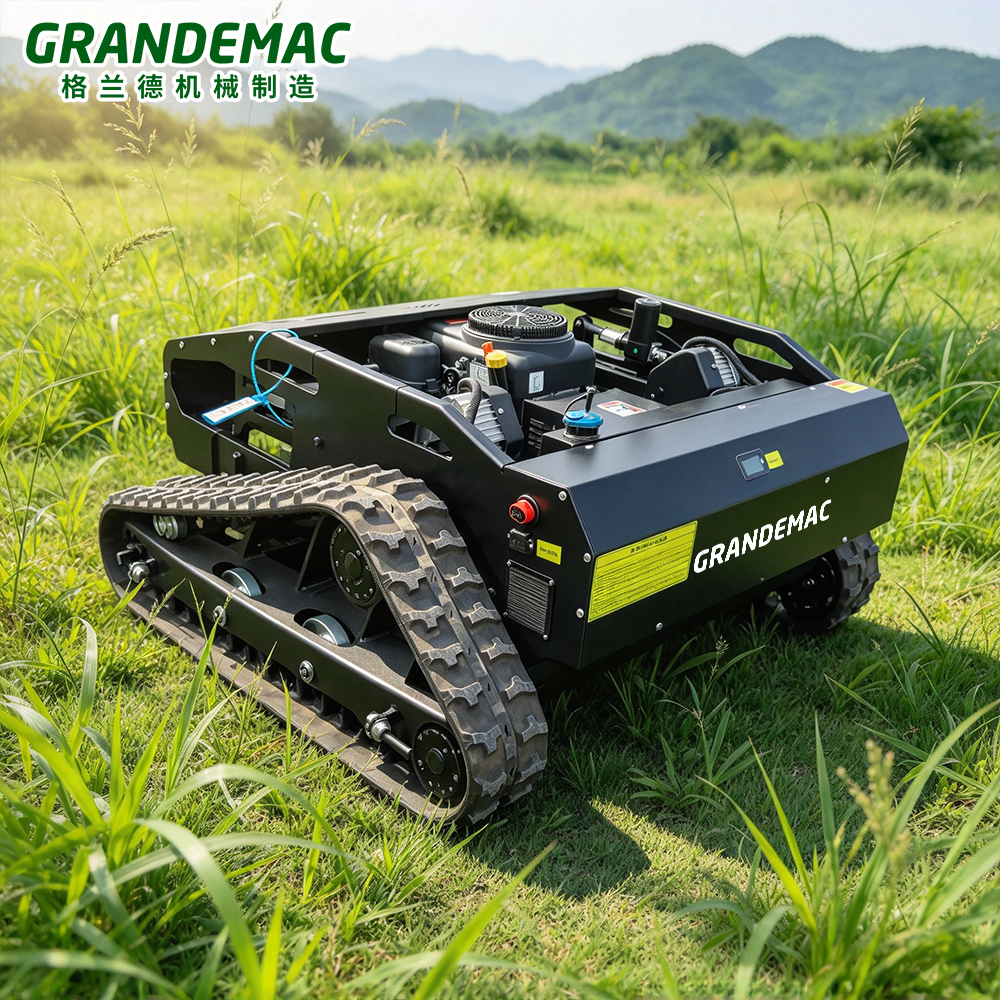

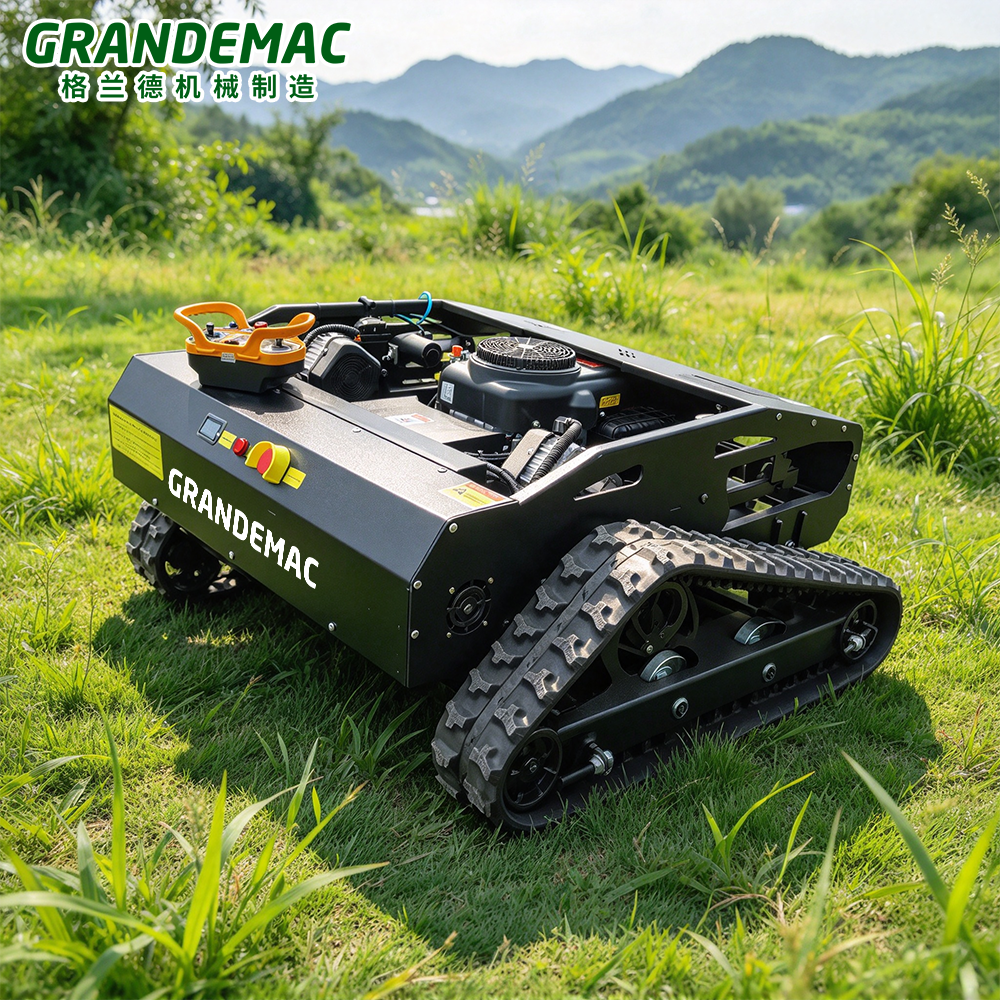

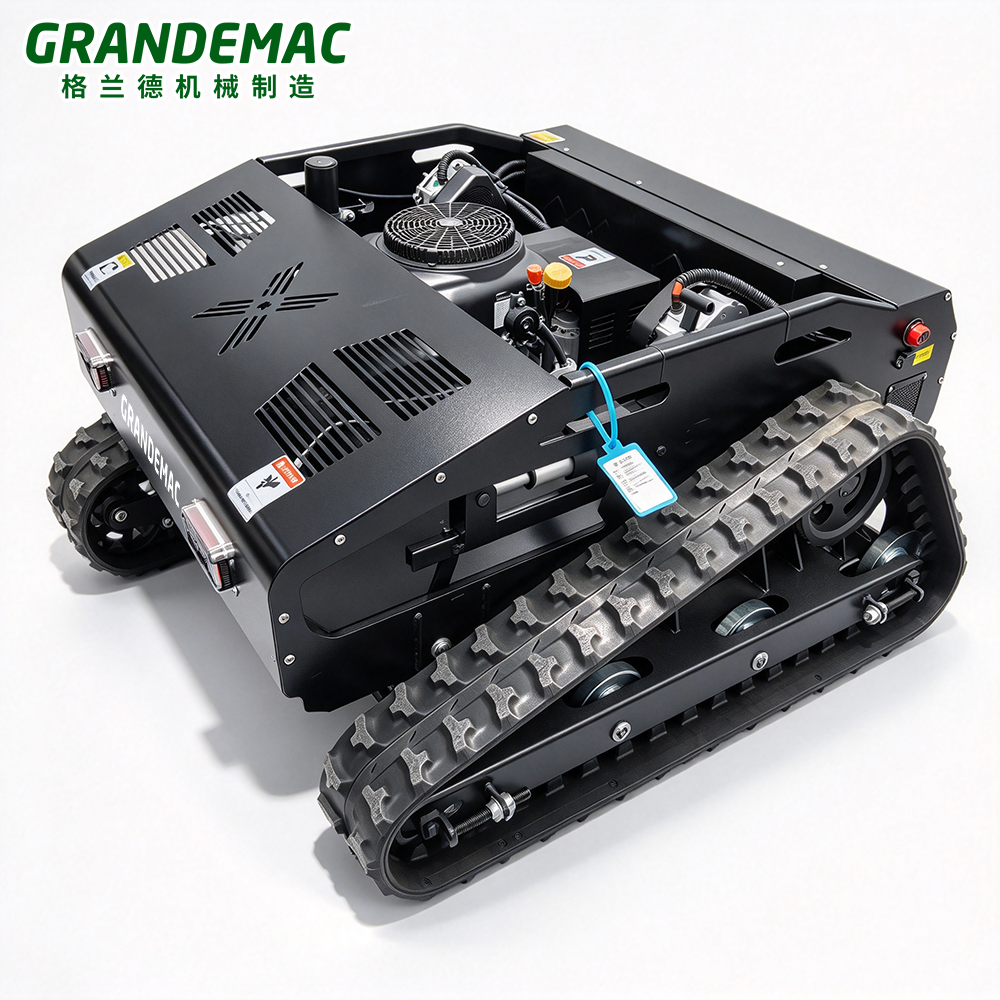

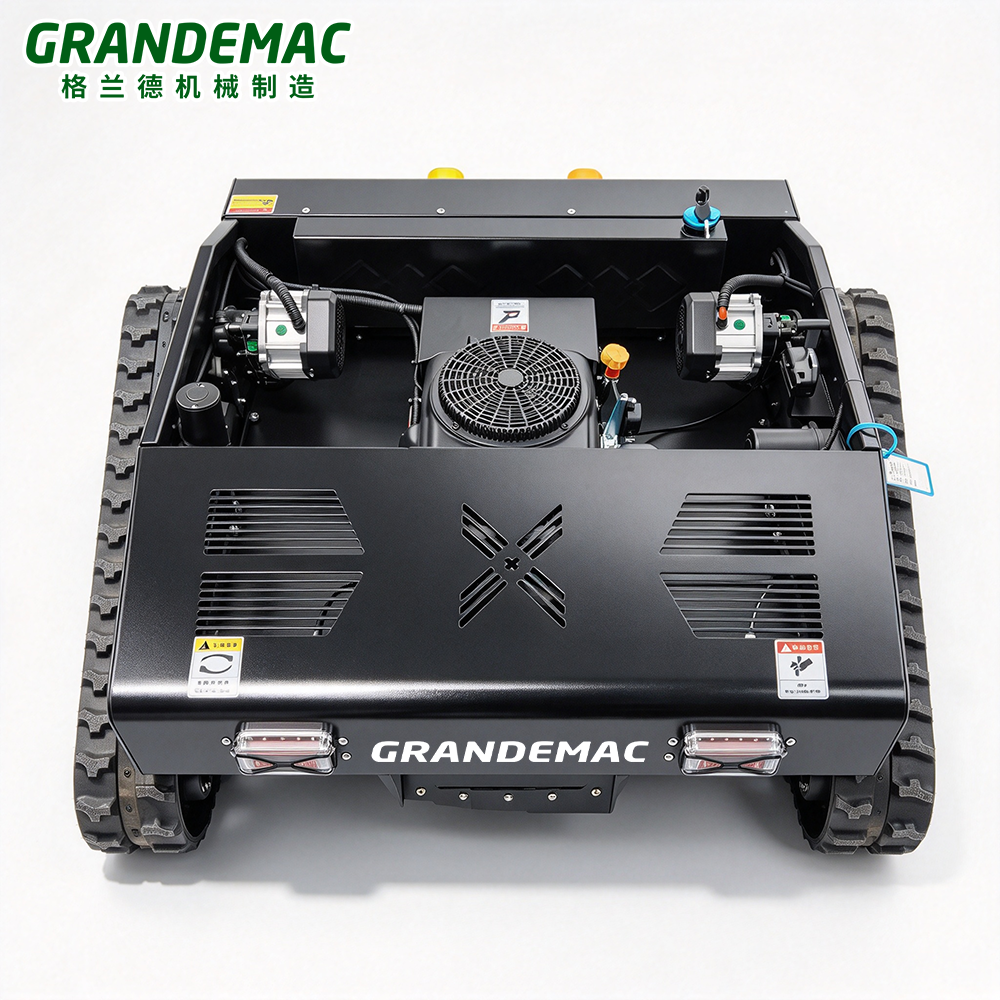

This 1000mm hybrid crawler remote control lawn mower is built for tough slope, orchard and farm mowing work. Powered by a 22HP Loncin 608 four-stroke gasoline engine paired with a 2500W built-in self-generating system, it adopts gasoline-electric dual power generation design to eliminate pure-electric battery range anxiety. With heavy-duty engineering rubber tracks, this RC mower safely works on slopes up to 50 degrees. Operate remotely from up to 500 meters away to keep you out of risky steep terrain, flying debris and sharp branches. The cutting height is electrically adjustable from 1cm to 20cm, and the working efficiency reaches up to 4000㎡ per hour, ideal for large-area land maintenance.
✅ Gas-Electric Hybrid Dual Generation System22HP Loncin 608 four-stroke gasoline engine + built-in 2500W generator. The engine charges batteries automatically while working, continuous long-hour operation without frequent charging stops. Equipped with two 24V 20.5A Chaowei batteries, stable power output for driving and cutting.
✅ 1000mm Wide Cutting Width & Electric Height Adjustment1000mm one-pass cutting width, covers more ground quickly. Electric adjustment of cutting height from 1cm to 20cm, easy to set ideal stubble height for different grass and crops.
✅ 50° Strong Climbing Capacity & Stable Rubber TracksHeavy engineering rubber tracks provide excellent grip on muddy, uneven, sloped ground. Safely mow slopes up to 50°, perfect for river banks, hillsides, terraced orchards and vineyards.
✅ 500M Long-Distance Remote Control, High/Low Speed Switchable500 meters remote control range. Supports high & low speed travel (0–4 km/h). Keep operators at a safe distance away from danger zones.
✅ Dual 1000W Split Drive TransmissionDual 1000W drive motors with split gearbox design, independent track control, flexible turning, strong torque for rough terrain.
✅ High Efficiency & Low Fuel ConsumptionMax working output up to 4000㎡/h. Max fuel consumption only 5.2L/h, 12L large fuel tank for long continuous working time.
Hillside, slope, river bank, embankment grass cutting
Orchard, vineyard, tea garden, farm weeding & mowing
Solar power station vegetation management
Wasteland reclamation, roadside green belt maintenance
Technical Parameters
| Item | Specification |
|---|---|
| Cutting Width | 1000mm |
| Cutting Height | 1cm–20cm (electric adjustment) |
| Power System | Gasoline-electric hybrid, dual power generation, manual throttle |
| Engine | 22HP Loncin 608 4-stroke gasoline engine |
| Built-in Generator | 2500W |
| Drive Power | Dual 1000W split transmission gearbox |
| Track Type | Engineering rubber track |
| Built-in Battery | 2pcs Chaowei 20.5A, 24V |
| Starter Battery | 20.5A starter battery (standard) |
| Max Climbing Angle | 50 degrees |
| Remote Control Range | 500m, high & low speed adjustable |
| Travel Speed | 0–4 km/h |
| Working Efficiency | ≤4000㎡/h |
| Fuel Tank Capacity | 12L |
| Max Fuel Consumption | 5.2L/h |
| Overall Dimension | 11001380580 mm |
| Net Weight | 280kg |
Read the entire guide before operation. Improper operation may cause serious injury or machine damage.
Max safe climbing angle: 50 degrees. Do NOT work on slopes steeper than 50°.
When mowing slopes, mow along the contour (sideways), avoid going straight up & down steep slopes; avoid sudden turning, acceleration or stop on slopes.
Keep hands, feet and clothes away from rotating blades and tracks during running.
The remote control effective range is 500m (open area). Always keep the machine within sight.
Do NOT operate indoors or in poorly ventilated places. Exhaust gas is toxic.
Clear stones, branches, wires and hard debris from the working area before mowing to protect blades.
Press the Emergency Stop Button immediately once abnormal noise, stuck blade or rollover risk occurs.
Keep children and pets far away from the working zone. Do not carry passengers on the mower.
Cut power and shut down the engine before cleaning, inspection or maintenance.
Place the mower on flat, stable ground.
Check engine oil level, fuel level (use 92# unleaded gasoline). Fuel tank capacity: 12L.
Check battery connection: 2 pcs 24V Chaowei 20.5A built-in batteries + starter battery.
Inspect rubber tracks for cracks, wear and proper tension.
Check cutting blades for bending, looseness or damage.
Turn on the remote controller, confirm remote signal connection is normal.
Reset emergency stop switch (twist to release stop state).
Turn throttle to proper position (manual throttle).
Electric start the Loncin 608 four-stroke 22HP gasoline engine.
Wait for engine warm-up (1–2 mins idle). The built-in 2500W generator starts self-charging automatically.
Pair remote control, confirm communication link is successful.
Adjust cutting height electrically (1cm–20cm) according to grass condition.
Engage cutter blade, then control the crawler to move and start mowing.
Left joystick: Forward / Backward / Turn
Right joystick: Blade deck lift & cutting height electric adjustment
Speed switch: High speed / Low speed (0–4 km/h)
Blade clutch button: Start / Stop cutting
Emergency stop button: Cut off power & shut engine urgently
Signal indicator: Shows remote connection status
Working efficiency up to 4000㎡/h. Overlap slightly for even mowing effect.
Hybrid system: The gasoline engine drives cutting and charges batteries simultaneously, no frequent plug-in charging required.
If grass is thick and heavy, use low speed for better cutting result and reduce blade load.
If the cutter gets stuck by weeds/branches: Stop blade first, reverse the machine, clear debris before restarting.
Keep the antenna of remote controller upright, avoid obstacles blocking the wireless signal.
Disengage cutting blades first.
Drive the mower to flat safe ground.
Set engine to idle speed and idle for 2–3 minutes for cooling.
Turn off engine ignition.
Turn off remote controller.
Activate emergency stop for long-time parking.
| Working Hours | Maintenance Item |
|---|---|
| Every 10h | Clean air filter, check track tension, clean grass residue under deck |
| First 15–20h | First engine oil replacement |
| Every 70–100h | Replace engine oil, check bolts, inspect blades, clean generator dust |
| Every 200h | Replace air filter, check battery health, inspect gearbox lubrication |
| Seasonal storage | Drain fuel, clean whole machine, store in dry shelter, disconnect batteries |
Engine fails to start
Check fuel, engine oil, starter battery power; confirm emergency stop is released.
Remote no response
Check remote battery, re-pair signal, remove signal shielding obstacles.
Blade cannot cut grass well
Sharpen or replace blunt blades; reduce travel speed for heavy weeds.
Track slips on slope
Clean mud on rubber tracks; reduce working slope angle, avoid wet slippery ground.
Battery not charging
Check built-in 2500W generator connection, check engine normal running status.
Store the mower in dry, ventilated warehouse, away from rain and direct sunlight. Disconnect batteries if stored for more than 1 month.
Q: How far can the remote control reach?
A: Up to 500 meters in open space.
Q: What’s the max slope it can work on?
A: Up to 50 degrees, rubber tracks guarantee stable traction.
Q: Is the cutting height adjustable?
A: Yes, electric adjustment from 1cm to 20cm.
Q: Does it charge itself while working?
A: Yes, the 2500W built-in generator charges the batteries automatically during operation.
