Product Introduction

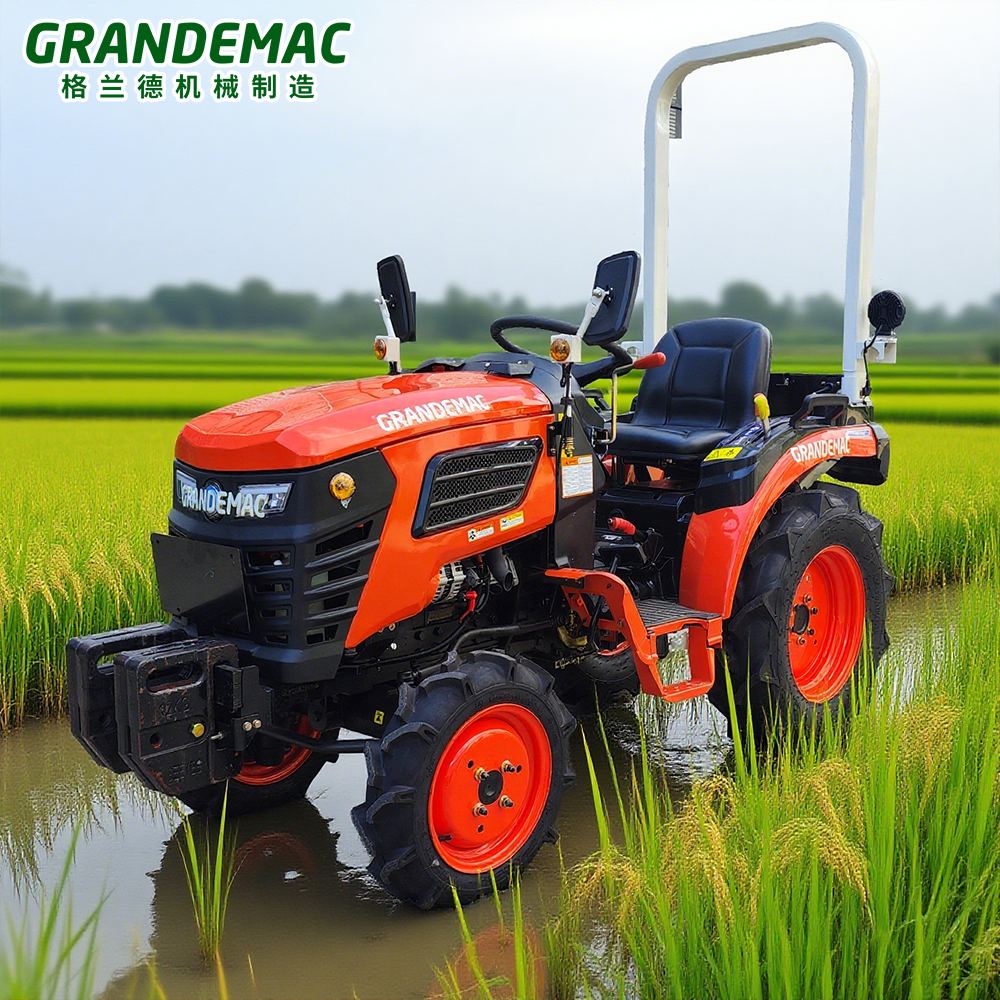

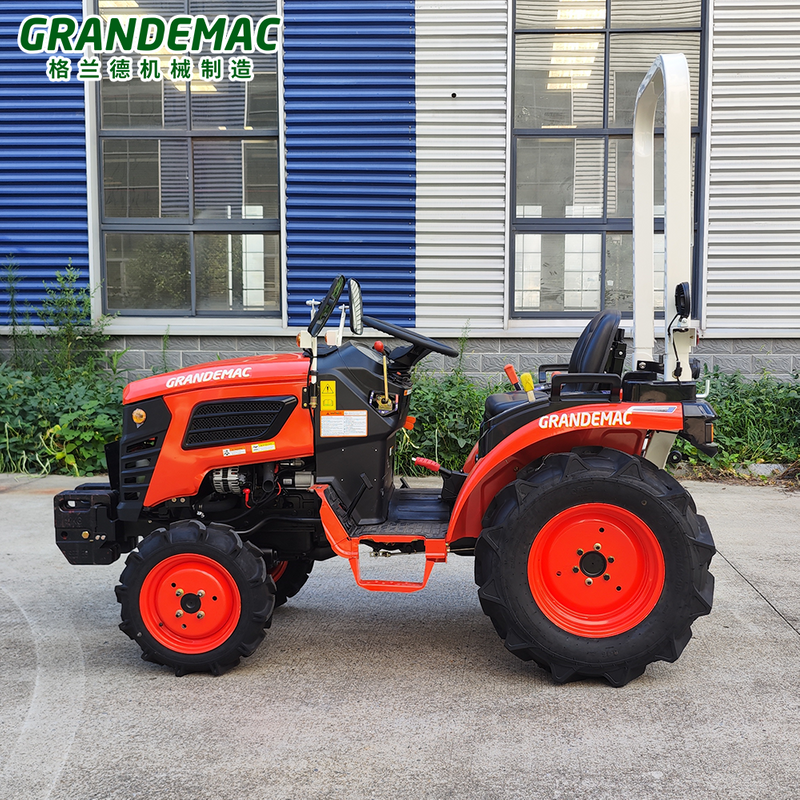

The 30 horsepower small four-wheel tractor is a "versatile assistant for farmland", capable of both field work and transportation. With sufficient power and affordable price, it is very suitable for small and medium-sized farmers and orchard growers.
Product Advantage
●Strong flexibility:
suitable for narrow environments such as hills, orchards, and greenhouses.
●Multipurpose:
One machine with multiple uses, capable of completing major agricultural tasks throughout the year.
●Moderate price:
low investment threshold, high cost-effectiveness.
●Simple maintenance:
The structure is not complicated, the accessories are easy to purchase, and the maintenance cost is low.
●Suitable for small and new farmers:
balancing economy and practicality
Technical Parameters
| model | E3030 4-cylinder engine |
| Specifications: | 2550*970*1807mm |
| Ground clearance: | 285mm |
| Quality: | 684kg |
| Supporting engine: | XY477-30 |
| Rated power | 18.5kw |
| Emission standards: | EURO 5 |
| Front wheels: | 5-12； There are inner tubes, steel hubs, and dry wheels; Track width 770 (standard)/960-1200 (adjustable) mm |
| Rear wheels: | 8-16； No inner tube, steel hub, dry land; Track width 770 (standard)/960-1200 (adjustable) mm |
| wheelbase: | 1370mm |
| Turning radius: | 1700mm |
| Function: | Hydraulic lifting; Double speed turning; PTO output (six keys); Three point standard suspension (Class 1N, standard GB/T1593-2015) |
| speed: | High speed, low speed; Backward, Forward 1, Forward 2, Forward 3 |
| PTO shaft speed: | Reverse 623r/min; Forward rotation 1 is 635r/min; Forward rotation 2 is 1116r/min |
| optional | Multi way valve+USD120, no rear counterweight installed, no sunshade |
Product Operate Guide
1.Start the engine
Place the gear lever in neutral, turn the key to start, and idle for 2-3 minutes to warm up.
2.Drive in gear
Select the fast and slow gear according to the homework, generally choose the low gear for cultivation and the high gear for transportation.
3.Using hydraulic system
Operate the lifting rod to control the lifting and lowering of the equipment, and maintain stable contact with the ground during operation.
4.Power take-off (PTO) usage
When starting the PTO, first slow down and then engage to ensure that the rotary tiller, lawn mower, and other equipment are working properly.
5.operational process
Keep moving forward at a constant speed and avoid sudden braking or sharp turns.
When encountering hard soil or high resistance, downshift and reduce the load.
Product usage scenarios
1.Datian cultivation: used for plowing, leveling, and sowing small areas of farmland.
2.Orchard/tea garden/vineyard: used for inter row weeding, fertilization, and trenching.
3.Greenhouse: Compact models can enter the greenhouse for cultivation.
4.Transportation operation: With the assistance of a trailer, short distance transportation of agricultural materials and products can be carried out.
Supporting agricultural tool operation:
Soil tillage: rotary tiller, trencher, micro tiller
Plant protection operation: chemical sprayer, spray
Rural management: lawn mower, weeding machine, fertilizing machine
Harvesting homework: small harvester, straw crushing and returning machine
Transportation purpose: Supporting trailer, transporting agricultural products and materials
1. who are we?
We are based in Jiangsu, China, start from 2019, sell to Africa(60.00%), South America(30.00%), Domestic Market(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
3. What can you buy from us?
Kubota Rice Combine Harvester, Kubota Tractor, Rotary Cultivator, World Rice Combine Harvester, Rice Transplanters.
4. What's your Payment terms?
30% payment in advance by TT, 70% balance before delivery.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery；
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, Western Union, Cash;
Language Spoken: English, Chinese, Spanish
Packing and Delivery
