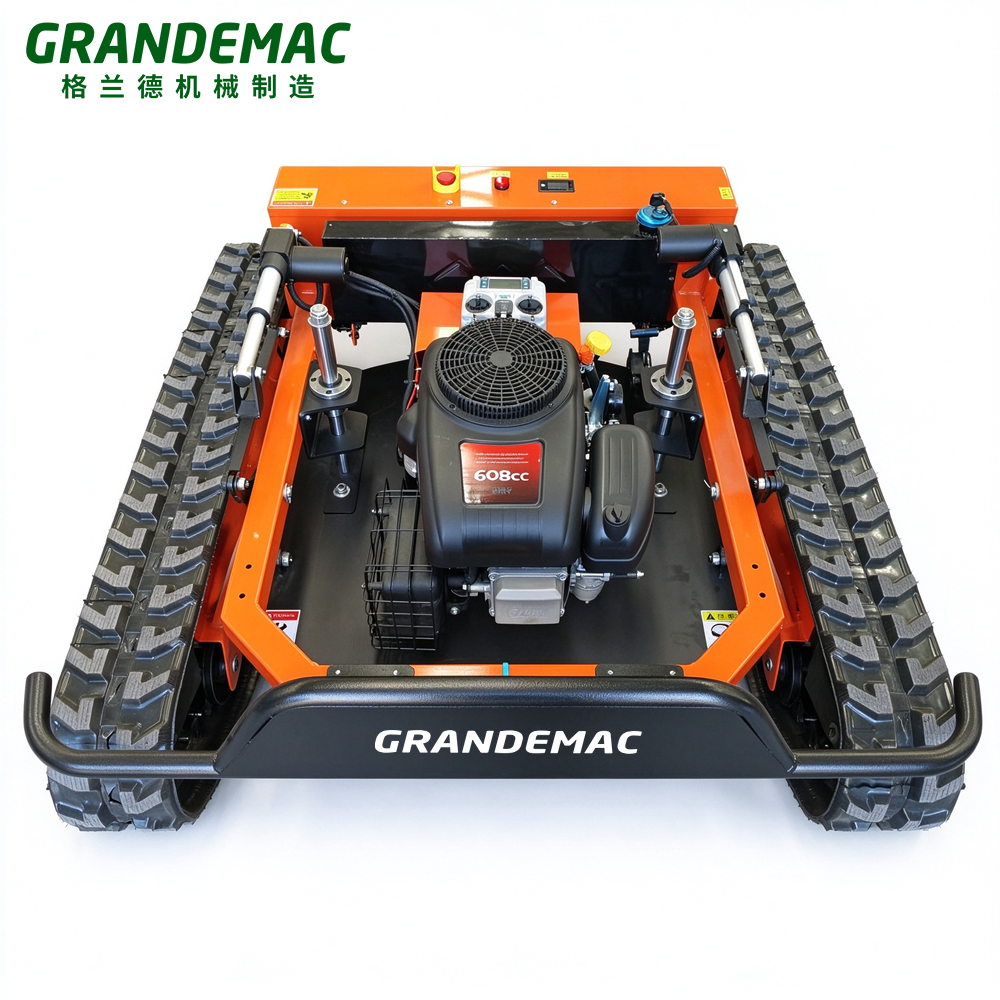

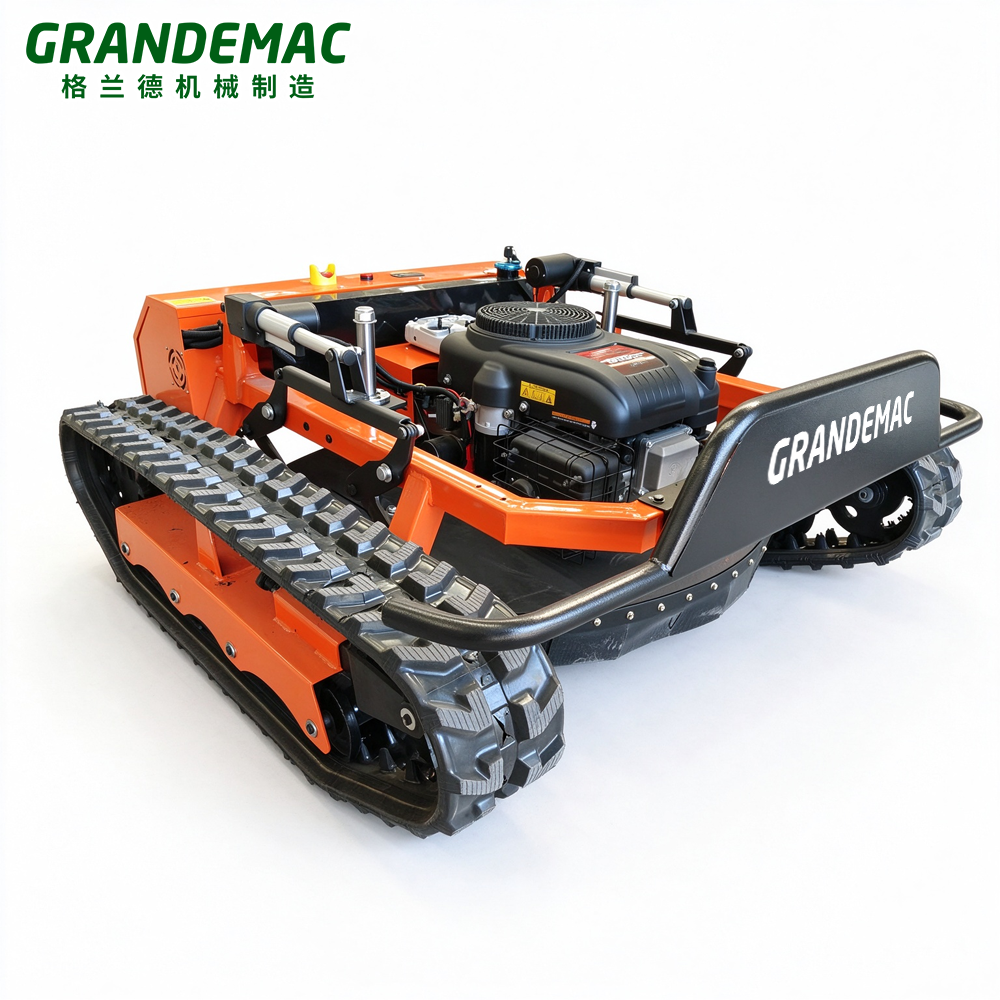

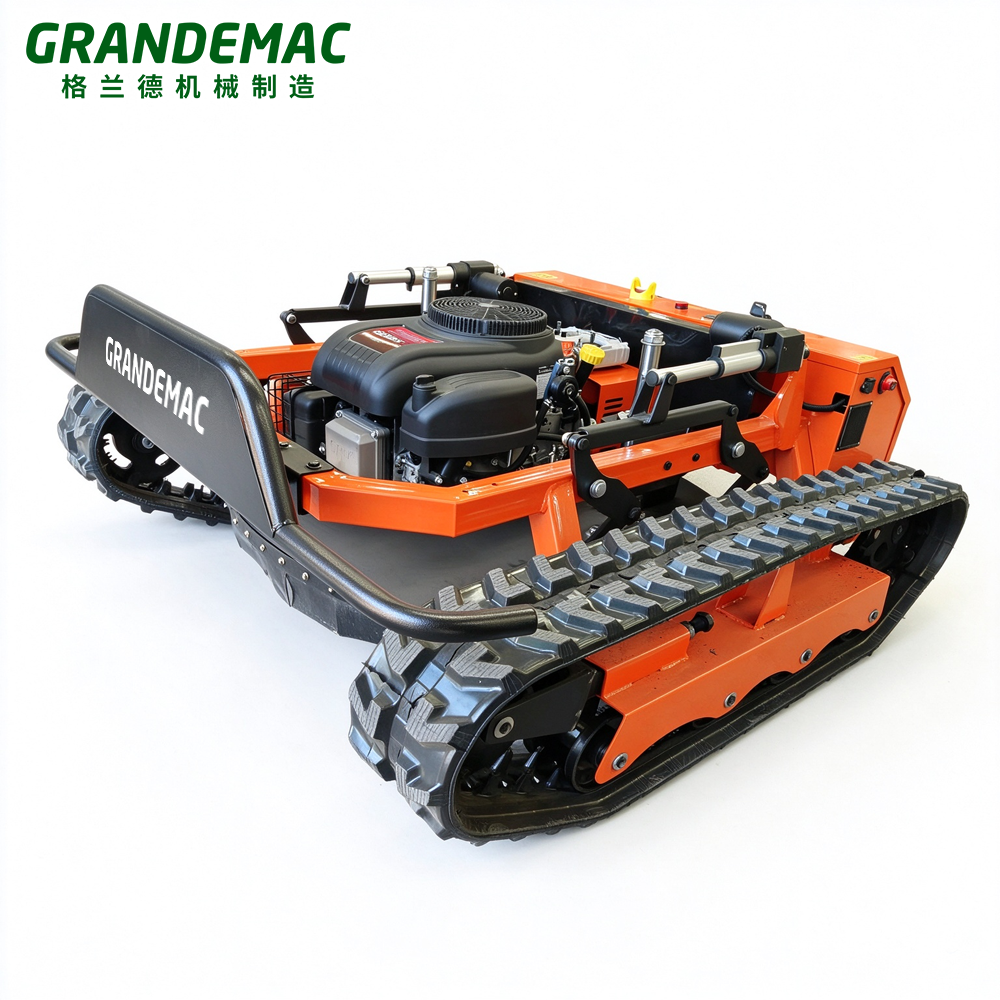

This 800mm tank-style crawler remote control lawn mower adopts advanced hybrid fuel-electric power system, built for tough, sloped, hard-to-reach terrain. Free yourself from dangerous manual mowing on hillsides, orchards, vineyards and embankments. Remote operation keeps you away from dust, flying debris and steep-slope fall risks. With 60° climbing ability, heavy-duty rubber tracks and 16HP Loncin four-stroke engine, it delivers stable, high-efficiency grass cutting for large farm and landscape projects.
✅ Hybrid Fuel-Electric Dual Power System16HP Loncin 452-608 four-stroke gasoline engine + 2500W built-in self-generator. Matched with 2pcs 24V Chaowei batteries. No worry about power outage during long working hours. Manual throttle design for flexible power adjustment.
✅ Strong 60° Climbing & All-terrain Passability41 widened engineering rubber tracks provide great grip. Up to 60° climbing capacity, stable working on steep slopes, muddy ground, uneven orchard land, ditch sides and highway embankments.
✅ 800mm Cutting Width, High Working EfficiencyCutting width 800mm, cutting height electrically adjustable from 1cm to 20cm. Max working efficiency up to 4800㎡ per hour. Travel speed 0–6 km/h, support high/low speed switch via remote controller.
✅ Long-distance Safe Remote Control500m remote control distance. Operate standing in a safe zone, avoid dangers of slipping, collision and grass debris injury.
✅ Reliable Split Transmission DriveDual 1000W split transmission gearboxes, stable output, strong torque for thick weeds and wild grass.
✅ Thoughtful Industrial Design9L large fuel tank, continuous long-time operation. Electric start for easy ignition. Compact body size 14501330700mm, net weight 300kg, easy transport and deployment.
✅ Low Maintenance & Stable PerformanceDual power generation structure reduces battery burden. Wear-resistant rubber tracks, durable structure for long-term farm, landscaping and slope maintenance use.
Technical Parameters
| Item | Specification |
|---|---|
| Cutting Width | 800mm |
| Cutting Height | 1cm–20cm, electric adjustment |
| Power Source | Hybrid fuel-electric, manual throttle, dual power generation system |
| Fuel Power | 16 horsepower, gasoline |
| Engine Brand | Loncin 452-608 four-stroke |
| Self-generating System | Built-in 2500W generator |
| Drive Power | 1000W * 2 split transmission gearbox |
| Drive Wheels | 41 Widening Engineering Rubber Track |
| Built-in Battery | 2 pcs Chaowei 20.5A, 24V |
| Starting Method | Electric start (with 1pc 20.5A starter battery as standard) |
| Climbing Capacity | 60 degrees |
| Remote Control System | 500m remote range, high & low speed adjustable |
| Travel Speed | 0–6 km/h |
| Working Efficiency | ≤4800㎡/h |
| Fuel Tank Capacity | 9L |
| Oil Tank Capacity | 1.6L |
| Maximum Fuel Consumption | 4L–5.2L/h |
| Overall Dimensions | 14501330700mm |
| Net Weight | 300kg |
| Package Size | 14501370870mm |
| Gross Weight | 380kg |
The maximum climbing angle is 60°. Always mow along the contour of slopes (sideways), avoid going straight up & down steep slopes to prevent rollover.
Effective remote control distance: 500m (open area). Keep visual contact with the machine during operation. Stop working if the signal gets weak.
Keep people, kids and animals at least 15m away while blades are running. Flying grass, stones may cause injury.
Use 92# unleaded gasoline. Never refuel while the engine is hot or running.
Emergency Stop: Press the emergency stop button on remote controller or the machine body once danger occurs.
Do NOT use this mower in heavy rain, thunderstorm or extremely muddy ground.
This is hybrid fuel-electric equipment. Do not disassemble the generator and battery pack by yourself.
Fuel: Check 9L fuel tank, fill with clean gasoline if insufficient.
Engine oil: Oil capacity 1.6L, check oil level, add SAE 10W-30 engine oil as required.
Battery: Confirm 2pcs 24V Chaowei batteries and starter battery have sufficient power.
Track & Blade: Check rubber tracks tension, confirm cutting blades are fastened without crack or looseness.
Remote Controller: Check remote battery, test signal connection before starting.
Site clearing: Remove stones, branches, iron wires and debris in the working area to protect blades.
Turn on the main power switch of the machine.

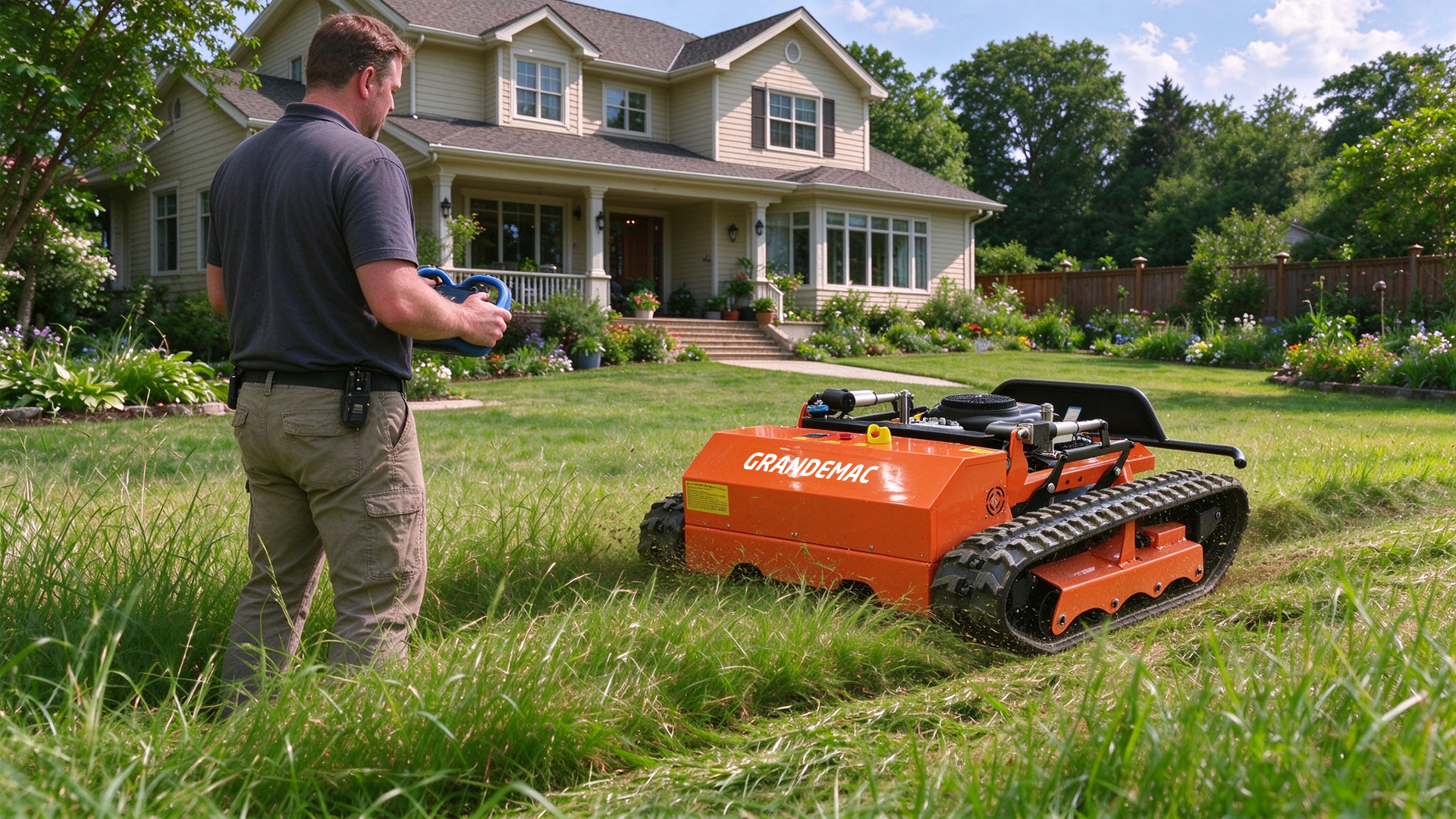

Turn on the remote controller, wait for successful pairing prompt.
Start the Loncin 452-608 four-stroke engine by electric start. Adjust manual throttle to suitable power.
Set cutting height remotely: adjustable from 1cm to 20cm.
Control the crawler to move to the working zone, switch high/low speed as needed (0–6km/h).
Engage the cutting blades and start mowing. Keep overlapping passes for even cutting effect.
After work: Stop the cutter first, drive the mower to flat ground, idle the engine for 1–2 minutes, shut down the engine, then cut off main power.
Max safe climbing angle: 60 degrees. Do NOT exceed the limit.
Work horizontally along the slope, avoid vertical up-and-down travel.
Reduce travel speed on slopes, choose low-speed mode.
If slipping occurs, release joystick immediately, stop cutting and back out slowly.
Do not turn sharply on steep slopes.
After every use
Clean grass residue, mud on tracks, blade deck and radiator.
Check blade tightness, track tension.
Every 50 working hours
Replace engine oil.
Inspect generator, wiring and battery connectors.
Every 100 working hours
Air filter cleaning or replacement.
Check wear condition of rubber tracks and cutting blades.
Long time storage
Drain gasoline, clean the whole machine, store in dry, ventilated warehouse.
| Fault | Possible Reason | Solution |
|---|---|---|
| Engine fails to start | Low battery / No fuel / Dirty spark plug | Refuel, charge battery, clean or replace spark plug |
| Remote no response | Remote low battery / Signal interference | Replace remote battery, move to open area |
| Weak cutting power | Dull blade / Grass too thick | Sharpen or replace blade, reduce forward speed |
| Machine slips on slope | Muddy surface / Track worn | Clean track mud; replace track if heavily worn |
| Generator abnormal alarm | Overload / Poor heat dissipation | Shut down and cool off, remove grass blocking radiator |
Q: What slope can this mower work on?
A: It can stably work on slopes up to 60 degrees.
Q: Is this hybrid mower suitable for orchards?
A: Yes, it is widely used in fruit orchards, vineyards and hilly farms.
Q: What is the remote control distance?
A: Up to 500 meters in open areas.
