FXS7/340
GRANDEMAC
| Quantity: | |
|---|---|

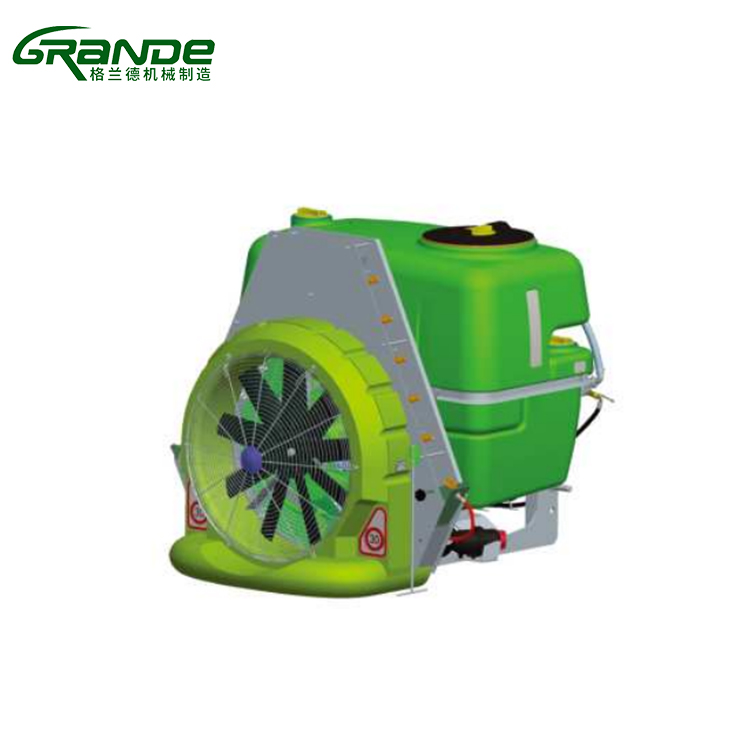

FXS7/340 tractor‑mounted air‑blast orchard sprayer is specially designed for apple, cherry and other fruit tree orchards. Mounted on tractors with power above 35HP. Large‑flow axial fan delivers powerful airflow to drive fine mist deep into dense tree canopy, achieving full‑coverage pesticide spraying. Equipped with main chemical tank, circuit washing tank and hand‑washing tank for safer orchard operation. Compact structure, reliable performance, ideal for medium‑size commercial fruit farms.
Specifications
| Item | Parameter |
|---|---|
| Model | FXS7/340 |
| Matching tractor power | ≥35HP |
| Nozzle quantity | 10 PCS |
| Fan diameter | 700 mm |
| Air volume | 15800 m³/h |
| Fan power | 4 kW |
| Main chemical tank volume | 300 L |
| Circuit washing tank | 40 L |
| Hand‑washing tank | 10 L |
| Dimension(L×W×H) | 1300×1000×127 cm |
| Net weight | 190 kg |
Tractor‑mounted design, fits tractors ≥35HP, easy installation.
700 mm large‑diameter fan, air volume up to 15800 m³/h, mist penetrates thick fruit‑tree canopy for uniform coverage.
10 nozzles for flexible spray adjustment, meet different orchard spraying requirements.
Triple‑tank configuration: 300L main medicine tank +40L circuit washing tank +10L hand‑washing tank, convenient for liquid mixing, pipeline cleaning and operator hand‑washing.
Robust and compact structure, low net weight 190 kg, reduces extra load for tractor.
Suitable for apple orchard, cherry orchard and other pomaceous fruit plantations for pest & disease control.
Pest and disease spraying for apple, cherry and other commercial fruit orchards
Daily plant‑protection work for medium‑scale fruit farms
Orchard contractors & agricultural service teams for field spraying service
Mount the sprayer on the rear three‑point hitch of tractor with power ≥35HP.
Connect PTO drive shaft between tractor and sprayer.
Check all pipeline connections and nozzle status to avoid liquid leakage.
Prepare pesticide liquid inside main tank; use washing tanks for pipeline flushing and personal cleaning.
Adjust working speed and nozzle output according to tree height & density before formal spraying.
Note: Do not operate without liquid inside tank. Wear full protective gear during spraying operation.
Q1: What tractor power does FXS7/340 require?
A: It needs tractor with power of 35HP or higher for normal working performance.
Q2: Which orchards is this sprayer best for?
A: Mainly for apple trees, cherry trees and similar fruit‑tree orchards, good for medium‑size commercial plantations.
Q3: What are the functions of the three tanks?
A: 300L tank for pesticide liquid; 40L tank for cleaning spray pipeline residues; 10L tank for operator hand‑washing.
Q4: Is it hard to assemble?
A: Standard 3‑point hitch mounting, matches common orchard tractors. Follow installation manual; professional mechanic is recommended for first‑time mounting.
