20–50 HP 4WD Compact Orchard Tractor With Front Loader | Vineyard Farm Tractor

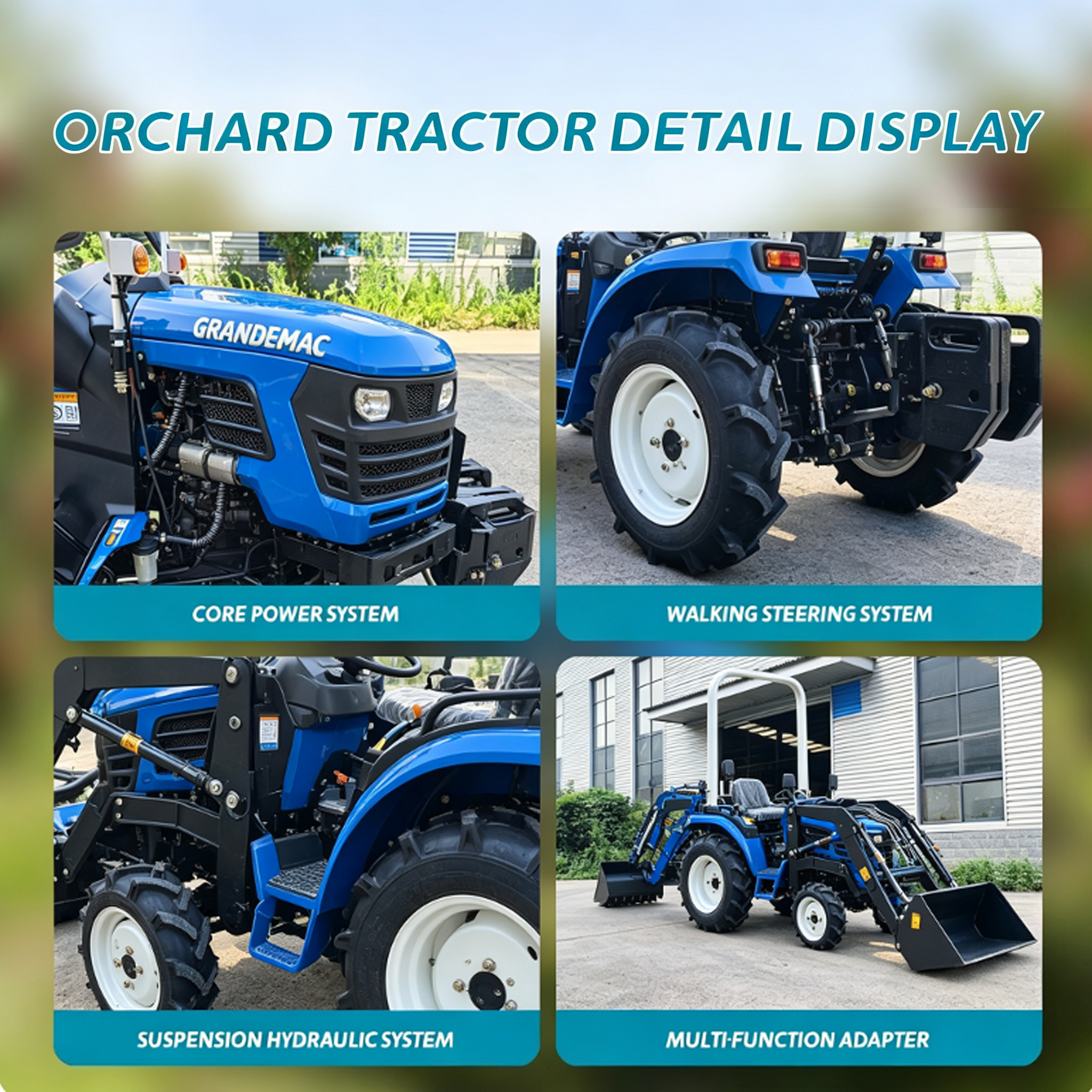

Core Advantages

Full Technical Specifications

• Engine: 4-Cylinder XY484 Diesel Engine

• Rated Power: 36.8kW

• Emission Standard: Stage IV

• Overall Dimensions: 2920 * 1337 * 2010 mm

• Net Weight: 684 kg

• Ground Clearance: 330 mm

• Wheelbase: 1610 mm

• Minimum Turning Radius: 2500 mm

• Front Tyre: 7-16, tube type, steel rim; Track width:1020mm

• Rear Tyre: 11.2-24, tubeless, steel rim; Track width:1060mm

• Drive Mode: Switchable 2WD / 4WD

• Gear: 8 Forward + 4 Reverse

• Rear PTO Speed: 680 / 890 r/min

• Standard Equipment: Hydraulic lifting system, Category 1N 3-point linkage

• Multi-way valve: + USD 120

• Sunshade Canopy: + USD 135

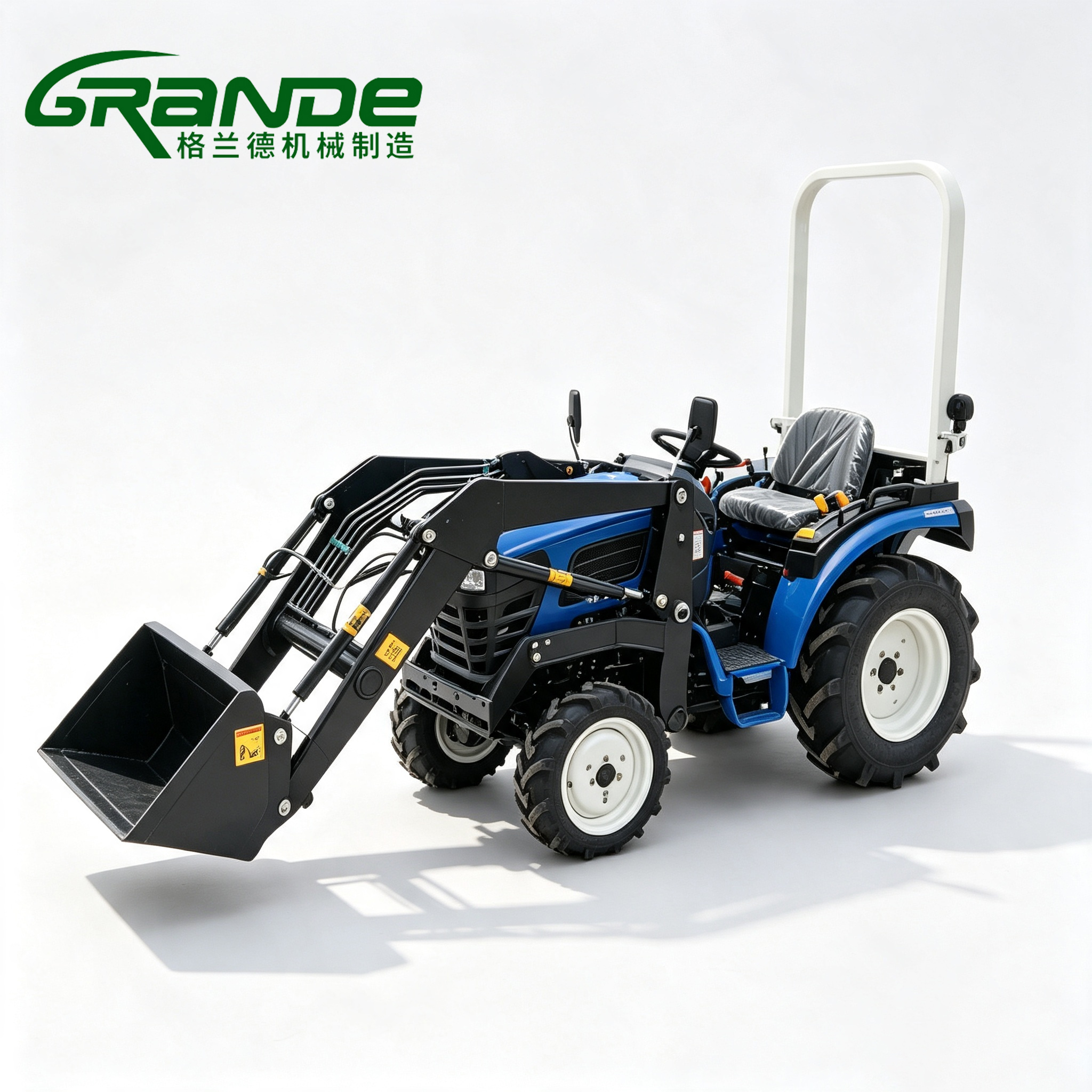

• Front End Loader (Matching Attachment)

B5050 Narrow Orchard Tractor Operation User Guide

1. Important Safety Precautions

1. Only trained operators are allowed to drive the tractor. Read all instructions before operation.

2. Wear suitable work clothes, non-slip safety shoes. Do not wear loose clothing to avoid winding by rotating parts.

3. Check the tractor fully before starting each shift: engine oil, coolant, hydraulic oil, tire pressure, bolt tightness.

4. Do not carry passengers. This tractor is designed for single operator only.

5. Stop the engine and pull down hand brake before maintenance, inspection or replacing attachments.

6. Do not operate on steep slopes over 15°. Avoid sharp turning on slopes to prevent rollover.

7. Keep hands and body away from PTO shaft, connecting rods and hydraulic moving components during working.

8. Strictly follow Stage IV engine maintenance requirements to avoid emission system damage.

2. Pre-operation Inspection Checklist

• Engine oil level

• Radiator coolant volume

• Fuel quantity

• Hydraulic oil level

• Front & rear tire pressure and tyre damage

• All light systems

• Steering flexibility and brake performance

• 3-point linkage, PTO shaft for abnormal wear

• Confirm no foreign objects around the chassis

3. Engine Start & Shutdown

Start Steps

1. Sit firmly on the operator seat, engage parking brake.

2. Put gear lever into neutral position; disengage PTO switch.

3. Turn ignition key to preheat position (for cold weather).

4. Turn key to start the engine. Do not hold starter for more than 10 seconds at one time.

5. After startup, keep idling for 3–5 minutes for warm-up. Check abnormal noise, oil pressure indicator.

Shutdown Steps

1. Lower all mounted farm implements to the ground.

2. Shift to neutral gear, disengage PTO.

3. Keep engine idling for 2–3 minutes.

4. Turn ignition key off, pull up parking brake.

4. Driving Operation Instructions

1. 2WD / 4WD SwitchSwitch between 2WD and 4WD only when driving slowly on flat ground.Use 4WD for muddy land, uphill, heavy load operation; use 2WD for highway transfer to save fuel.
2. Gear OperationEquipped with 8 forward gears + 4 reverse gears.Stop or slow down before shifting gears; avoid forced shifting at high speed to prevent gearbox damage.
3. Turning TipsMinimum turning radius: 2500 mm.Slow down when turning in narrow orchard/vineyard rows. Avoid hitting fruit trees and vine branches.

5. Core Function Operation

5.1 Hydraulic Lifting & Category 1N Three-point Hitch

1. Control lever lifts and lowers rear mounted implements (mower, sprayer, plough etc).

2. Adjust lifting height and drop speed according to your farming needs.

3. Do not stand under suspended attachments at any time.

5.2 Rear PTO Power Output

1. Only engage PTO when engine runs at low idle speed.

2. Disconnect PTO when you do not use driven implements.

3. Match working speed with your farm tools.

5.3 Optional Multi-way Valve

5.4 Optional Sunshade Canopy

6. Daily & Periodic Maintenance

Daily Maintenance (Every day before work)

Every 50 Working Hours

• Check brake clearance

• Lubricate steering joint, linkage pin points

• Inspect tire wear

Every 200 Working Hours

• Replace engine oil & oil filter

• Check hydraulic oil quality

• Inspect clutch and brake system

Every 500 Working Hours

• Replace hydraulic oil & filter element

• Full inspection of transmission system

• Professional maintenance for Stage IV emission system

Notice: Use recommended lubricants and diesel fuel to comply with Stage IV emission standard.

7. Simple Troubleshooting

1. Engine fails to start

   → Check fuel supply, battery power, neutral gear lock, preheating system

2. Weak hydraulic lifting

   → Insufficient hydraulic oil / blocked filter / oil leakage

3. PTO no power output

   → Check PTO control switch, clutch clearance

4. Difficult steering

   → Check tire pressure, steering lubrication, lack of steering oil

8. Storage Guidance

1. Clean whole machine, wash mud and plant residues.

2. Fill up fuel tank, protect against rust.

3. Disconnect battery cable.

4. Park on flat dry ground, raise tires off wet soil.

5. Cover with waterproof tarpaulin.

Where Can You Use The B5050 Orchard Tractor?

• Commercial Vineyards

  Grape farm tillage, weeding, spraying and grape box transportation between vine lines

• Fruit Orchards

  Citrus, cherry, apple, peach, pear and walnut orchards; avoid branch damage with high ground clearance design

• Berry Plantations

  Blueberry, kiwi and raspberry farms with narrow planting rows

• Plant Nurseries & Horticultural Gardens

  Seedling cultivation, garden maintenance and soil management

• Small Family Farms

  Multi-purpose farm work: ploughing, mowing, fertilizing and short-distance transport
