B4040
GRANDEMAC
| Quantity: | |
|---|---|
Product Introduction

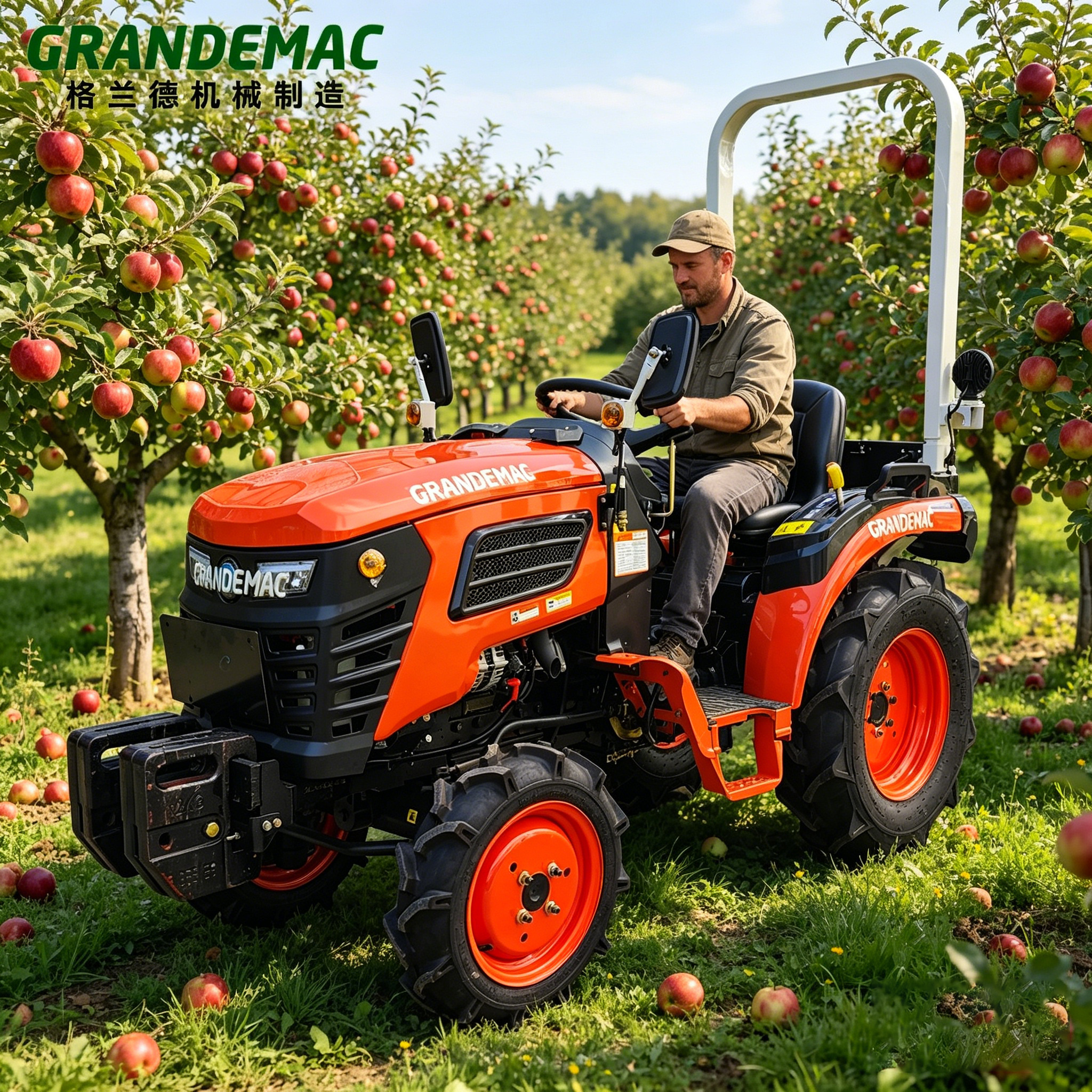

The 40 horsepower orchard tractor is a small and medium-sized specialized orchard machine that balances power and flexibility, designed specifically for narrow environments such as orchards, vineyards, tea gardens, citrus orchards, and greenhouses
Product Advantage
1. Compact Design for Orchards
Narrow body and 1666mm wheelbase ensure smooth operation between tight rows.
2. Powerful 40HP EngineEquipped with reliable XY4T7 engine delivering 29.6kW strong performance.
3. Multi-Function Capability
Supports PTO-driven implements like mowers, sprayers, tillers, and trailers.
4. High Ground Clearance (310mm)
Perfect for uneven orchard terrain and avoids crop damage.
5. Flexible Transmission System
Multiple gears with forward and reverse options for precise control.
Technical Parameters
| model | B4040 (9th gear) |
| Specifications: | 2760*1415*2320mm |
| Ground clearance: | 310mm |
| Quality: | 684kg |
| Supporting engine: | XY477 |
| Rated power | 29.6kw |
| Emission standards: | Phase Four |
| Front wheels: | 7-12； There are inner tubes, steel hubs, and dry wheels; Track width 1000mm |
| Rear wheels: | 12.4-16； Tubeless, steel hub, dry wheel; Track width 1065mm |
| wheelbase: | 1666mm |
| Turning radius: | 2500mm |
| Function: | Two/four-wheel drive conversion, hydraulic lifting, PTO output (six key), three-point standard suspension (Class 1N, standard GB/T 1593-2015) |
| speed: | High speed, medium speed, low speed; Backward, Forward 1, Forward 2, Forward 3 |
| PTO shaft speed: | Output at 750r/min afterwards |
| optional | Multi way valve+USD120, without rear counterweight, sunshade+USD135 |
Before starting the tractor, ensure the following:
Check engine oil, coolant, and fuel levels
Inspect tires for proper pressure and condition
Ensure all bolts and connections are tight
Verify hydraulic oil level
Make sure PTO shaft and attachments are securely connected
Sit in the driver’s seat and ensure gear is in neutral
Turn the ignition key to start the engine
Let the engine idle for 3–5 minutes to warm up
Check dashboard indicators for normal operation
Select appropriate gear based on terrain and task
Use low speed for orchard work and tight spaces
Avoid sudden acceleration or braking
Ensure safe turning within narrow rows
Maintain steady engine speed for efficient operation
Ensure tractor is at low speed before engaging PTO
Connect implement (mower, tiller, sprayer, etc.) properly
Engage PTO gradually
Standard PTO speed: 750 rpm
Disengage PTO before stopping engine
Use hydraulic lever to lift or lower attachments
Avoid overloading the hydraulic system
Ensure 3-point linkage is properly balanced
Lower attachments when parking
Always wear protective gear when operating
Keep hands and feet away from moving parts
Do not operate on steep slopes beyond safety limits
Never allow passengers on the tractor
Turn off engine before maintenance
Change engine oil regularly
Clean air filter after dusty operations
Check and tighten bolts periodically
Lubricate moving parts
Store tractor in a dry, covered area
Park on flat ground
Lower all attachments
Turn off engine and remove key
Cover tractor if stored outdoors
Product usage scenarios
Apple orchards
Cherry orchards
Vineyards
Small farms
Garden and landscaping operations
Q1: What is it suitable for?
Orchards, vineyards, and small farms.
Q2: What implements can it use?
Mowers, tillers, sprayers, trailers, and more.
Q3: Can it work in narrow rows?
Yes, compact design for tight spaces.
Q4: PTO speed?
Standard 750 rpm.
Q5: Easy to operate?
Yes, simple controls, beginner-friendly.
Q6: Engine type?
40HP diesel engine, powerful and efficient.
Q7: Terrain adaptability?
High clearance for uneven orchard land.
Q8: Customization available?
Yes, attachments and configurations optional.
