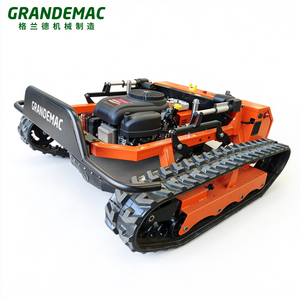

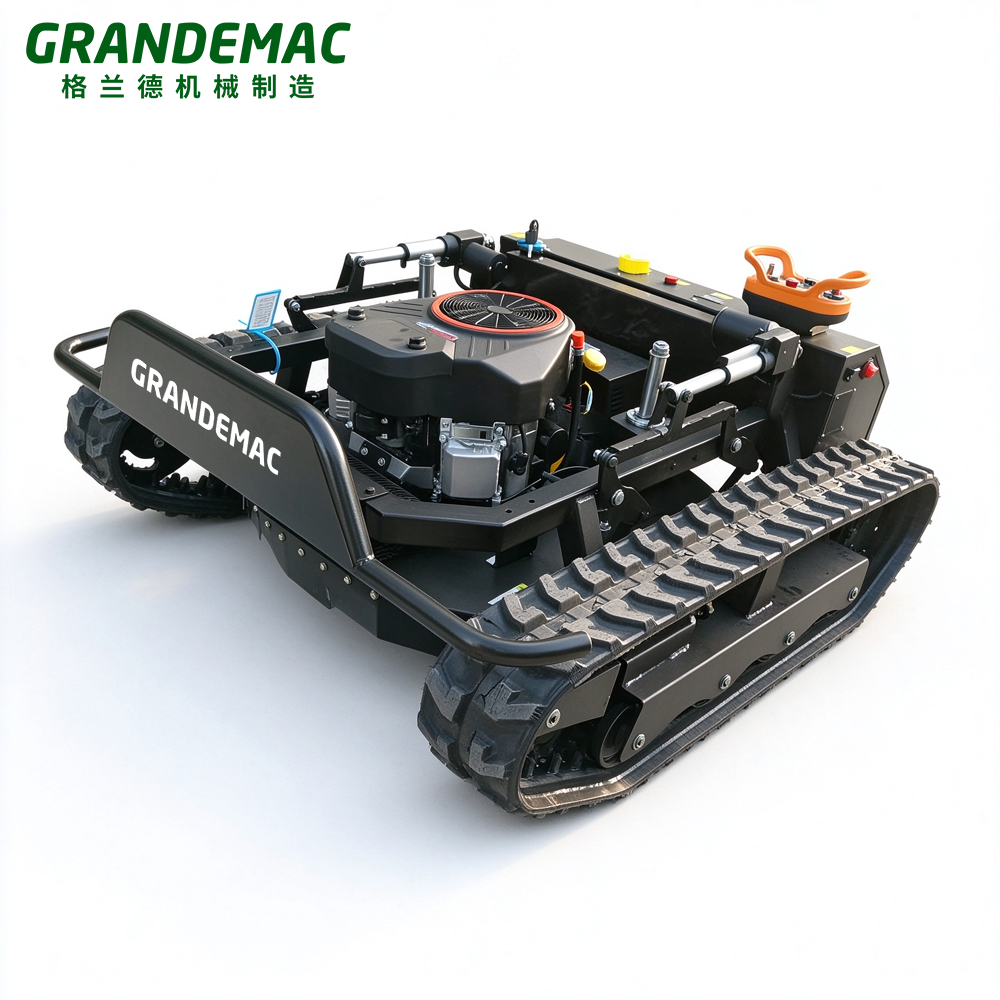

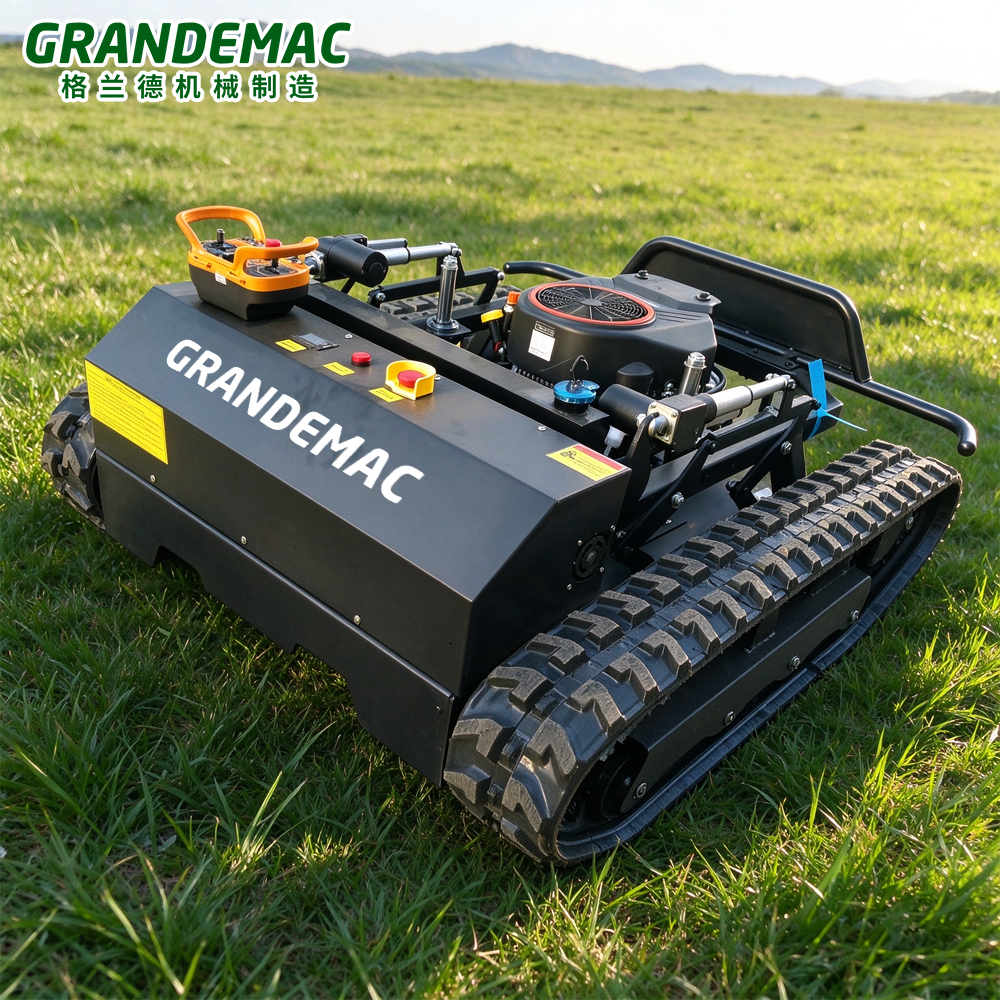

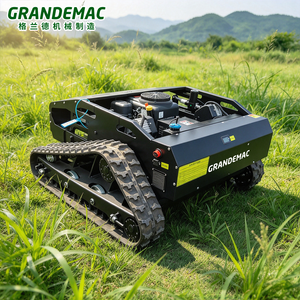

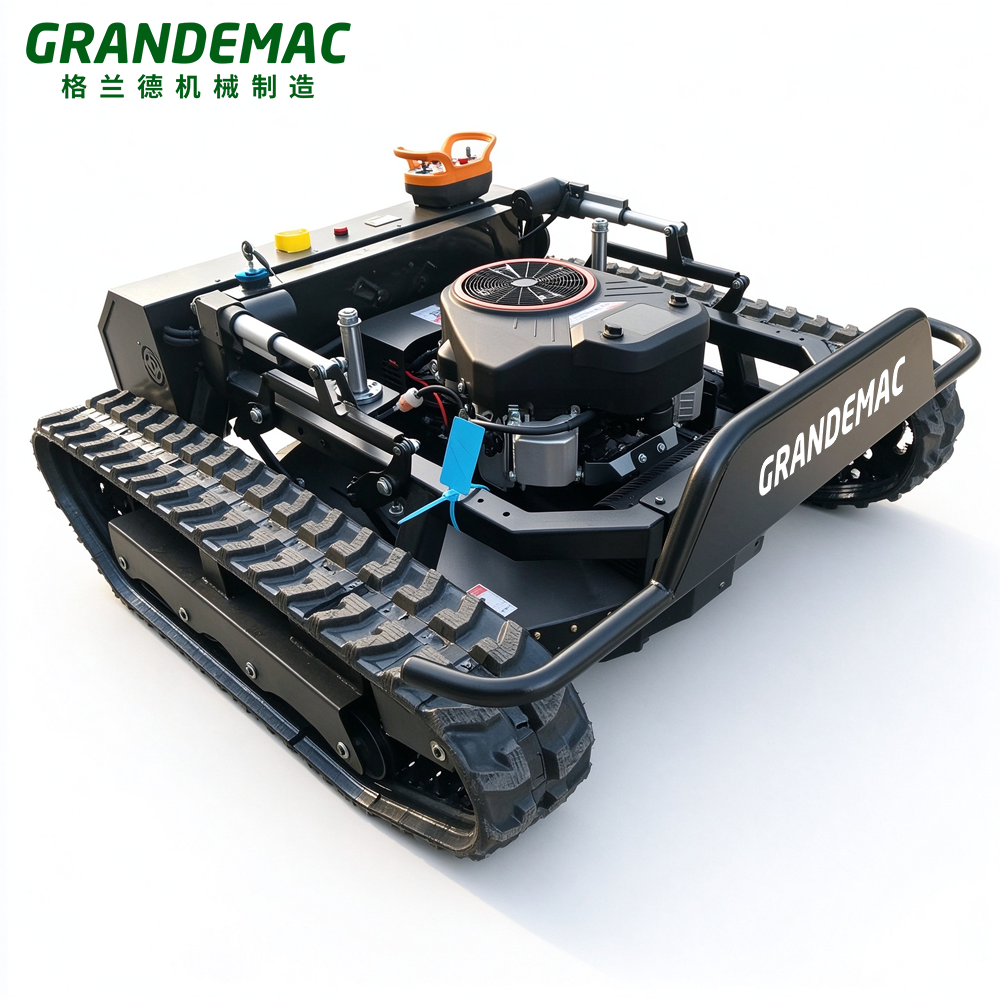

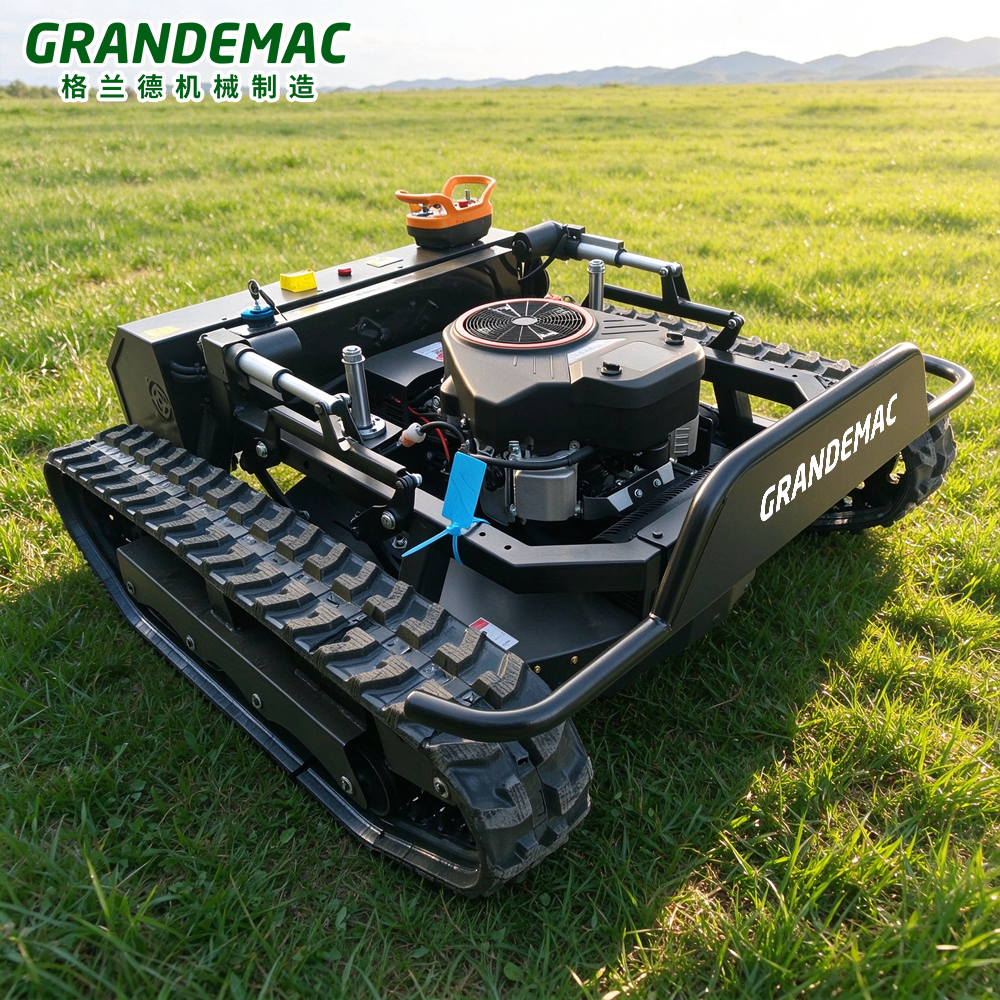

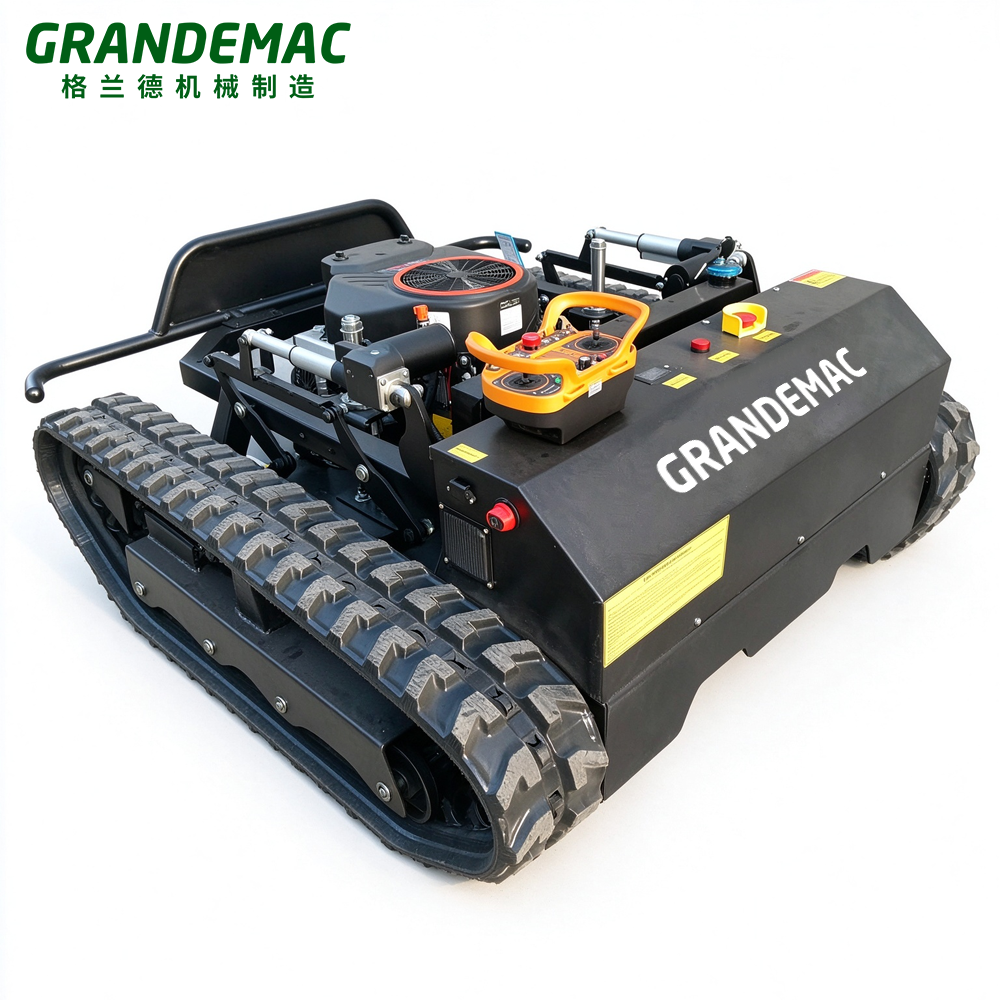

Stop risking falls and injury trimming hillsides, embankments and orchard slopes. Our hybrid tracked remote control mower lets you cut grass from up to 500 meters away. Powerful Loncin engine, heavy-duty rubber tracks and electric height adjustment make tough overgrown vegetation work effortless.
Traditional wheeled mowers cannot handle steep slopes, muddy or uneven ground, and manual slope cutting is extremely dangerous. This all-terrain tracked mower is built for landscapers, farmers, orchard owners, solar farm managers and municipal green teams.

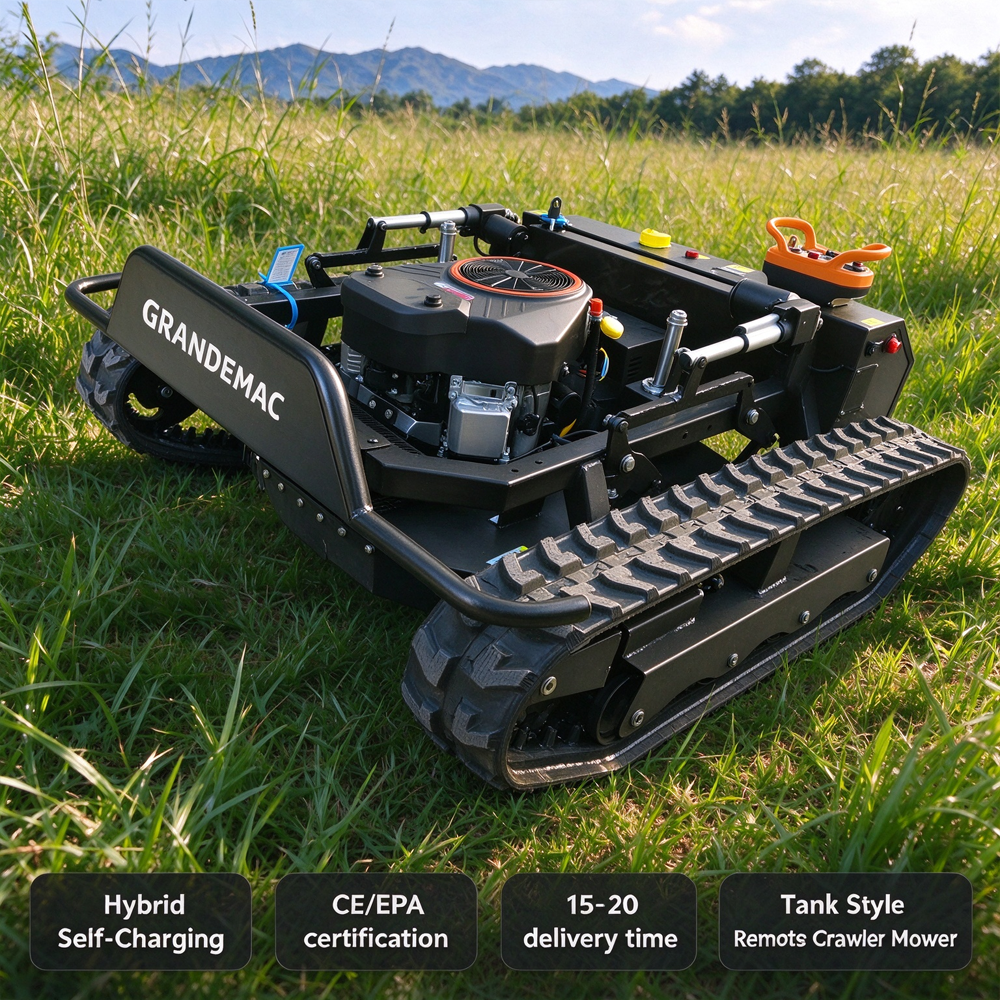

✅ Hybrid Fuel-Electric Power SystemPowered by reliable Loncin 608 four-stroke gasoline engine (22/25/27 HP optional). The built-in 2500W generator continuously charges the 24V battery set. Hybrid design means you get long run time of gas power + convenient electric drive control, no frequent charging trouble.
✅ 60° Maximum Climbing Capacity, Unmatched TractionHeavy-duty widened 41# engineering rubber tracks spread weight evenly, deliver strong grip on slippery, muddy, steep terrain. It safely works on slopes up to 60 degrees where standard lawn mowers tip over.
✅ 500m Long-Range Wireless Remote ControlAdjust forward speed (0–6km/h), switch high/low speed, steer the machine remotely. Stand on safe flat ground while the robot handles risky slope trimming, eliminating falling, flying debris and blade injury hazards.
✅ 1000mm Cutting Width & Electric Height AdjustmentWide 1-meter cutting deck boosts productivity up to 6000㎡ per hour. Adjust cutting height electronically between 1cm to 20cm to suit lawn, thick weeds, brush and orchard undergrowth. No manual tool change for height setting.
✅ Dual Independent Drive TransmissionDual 1000W split transmission boxes enable flexible turning and stable movement. Paired with Chaowei 20.5Ah 24V battery pack and electric start, easy startup and reliable continuous operation.
Orchard weed management
️ Hillside, dam & river embankment clearing
️ Highway and park green belt maintenance
☀️ Solar farm underbrush cutting
Farmland & pasture vegetation trimming
Technical Parameters
| Item | Parameter |
|---|---|
| Cutting Width | 1000mm |
| Cutting Height | 1cm-20cm (electric adjustment) |
| Power Source | Hybrid fuel-electric, dual power generation (manual throttle) |
| Engine Power | 22/25/27 HP, gasoline |
| Engine Brand | Loncin 608 four-stroke |
| Built-in Generator | 2500W |
| Drive Power | 1000W*2 split transmission |
| Drive Track | 41 Widened Engineering Rubber Track |
| Built-in Battery | 2pcs Chaowei 20.5A 24V + 1pc 20.5A starter battery |
| Start Mode | Electric start |
| Max Climbing Angle | 60 degrees |
| Remote Control | 500m distance, high/low speed |
| Travel Speed | 0-6km/h |
| Working Efficiency | ≤6000㎡/h |
| Fuel Tank | 12L |
| Oil Capacity | 1.6L / 2.4L |
| Max Fuel Consumption | 5.2L / 6.8L per hour |
| Overall Dimension | 15501530700mm |
| Net Weight | 340kg |
| Package Size | 16501500870mm |
| Gross Weight | 410kg |
Spec: 1000mm cutting width, Loncin 608 4-stroke engine (22/25/27HP), max climbing angle 60°, 500m remote range
This is professional slope mowing equipment. NOT for children to operate. Never start engine indoors, exhaust gas can cause poisoning. When working on slopes, operator must stay on the safe side at the top of slope, never stand downhill of the machine. Press emergency stop immediately in danger.
Fuel & Oil: Use 92# or higher unleaded gasoline. Check engine oil level by dipstick. Oil capacity:1.6L /2.4L. Do NOT start with insufficient oil. Fuel tank:12L, do not overfill.
Battery: Confirm 2pcs 20.5A 24V Chaowei battery + starter battery well connected, no leakage. Check remote controller battery.
Mechanical parts
Track: 41 widened engineering rubber track. Standard tension: sag 30–50mm. Clear stones and grass stuck in tracks.
Blades: Check blade bolts tight; replace cracked or bent blades.
Fasteners: Check all bolts of engine, cutting deck and gearbox.
Site check: Remove stones, stumps, wire and debris. Do NOT work in heavy rain, strong wind, fog. Avoid extremely muddy ground to prevent rollover.
Turn on main power switch on machine, power on remote controller. A “beep” sound means pairing successful. Max remote distance: 500m, obstacles reduce signal range.
Make sure cutting blade clutch is OFF. Adjust manual throttle to medium-low position.
Electric start: Press start button, each start ≤3–4 seconds. Wait 10 seconds before retry if failed.
After engine starts, idle for 2–3 minutes for warm-up. Adjust throttle properly. The built-in 2500W generator charges 24V battery pack automatically.
Remote controller functions
Left & right joystick: forward, backward, turn left / right
High / low speed switch: travel speed 0–6km/h
Deck lift button: electric cutting height adjustment from 1cm–20cm
Blade clutch switch: turn blades ON / OFF
Red emergency stop button: cut all power immediately
Slope limit: Max climbing 60°. Work along contour line is recommended. Avoid long cross-slope travel. Reduce speed on steep slopes.
Mowing tips: Use low speed for thick weeds, mow back and forth in several passes, avoid overloading. Suitable for orchard, solar farm, embankment.
Hybrid system: Gasoline engine runs to generate electricity for drive motors & control system. Batteries provide peak power. No external charging required when fuel is available.
Signal: Keep machine within line of sight. The machine will auto-stop once signal lost.
Heat protection: After 1 hour heavy work, idle for cooling, clean grass debris on air filter.
Disengage blade clutch, wait blades fully stop
Turn throttle to idle, idle 30s for cooling
Turn off engine, then main power and remote controller
Do NOT refuel when engine is hot.
表格
| Item | Interval | Note |
|---|---|---|
| Engine oil change | 10h for first oil change; every 50h afterwards | Use Loncin 4-stroke engine oil |
| Clean air filter | Every 4–10h | Replace after repeated cleaning |
| Clean deck, blades, tracks | After each use | Do NOT spray high-pressure water on electric box & motors |
| Adjust track tension | Every 20h | Sag 30–50mm, adjust by side bolts |
| Inspect blade bolts | Before every use | Replace damaged blades |
| Gearbox oil inspection | Every 6 months | 1000W*2 split transmission |
| Long time storage | Drain fuel tank, disconnect starter battery, store in dry room |
Fail to start: Low battery / oil protection / blocked fuel line / stop switch locked
Engine runs but no travel: Track jammed / loose track / loose motor plug
Deck height cannot adjust: Obstacle on electric push rod / low voltage
Low power & high fuel consumption: Clogged air filter, carbon deposit on spark plug
Remote control no response: Low remote battery, signal blocked, loose antenna
❌ Touch rotating blades, belts or hot exhaust while running ❌ Stand downhill of the machine on slopes ❌ Cut thick branches and bushes beyond capacity ❌ Service blades without shutting down and cutting power ❌ Refuel gasoline while engine hot
Support OEM & ODM
Factory direct supply, competitive price
CE certification available
One year warranty for core engine parts
Technical support & operation manual provided
Q1: What is the remote range?
A: Up to 500m in open space. Obstacles reduce range. Auto-stop when signal lost.
Q2: Can it climb 60° slope?
A: 60° is no-load max. Recommended ≤45° under mowing load. Mow along contour line.
Q3: Does it need external charging?
A: Self-generating hybrid system, no external charging. 12L fuel tank for continuous work.
Q4: How to adjust cutting height?
A: Electric adjustment via remote, 1–20cm.
Q5: How to choose HP?
A: 22HP for flat land & light grass. 25/27HP for steep slopes & heavy weeds. Q6: What fuel to use? A: 92#+ unleaded gasoline. Use Loncin 4-stroke engine oil.
