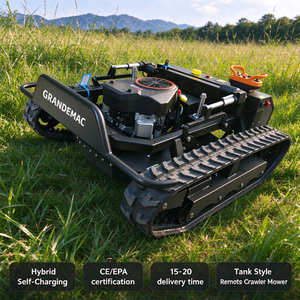

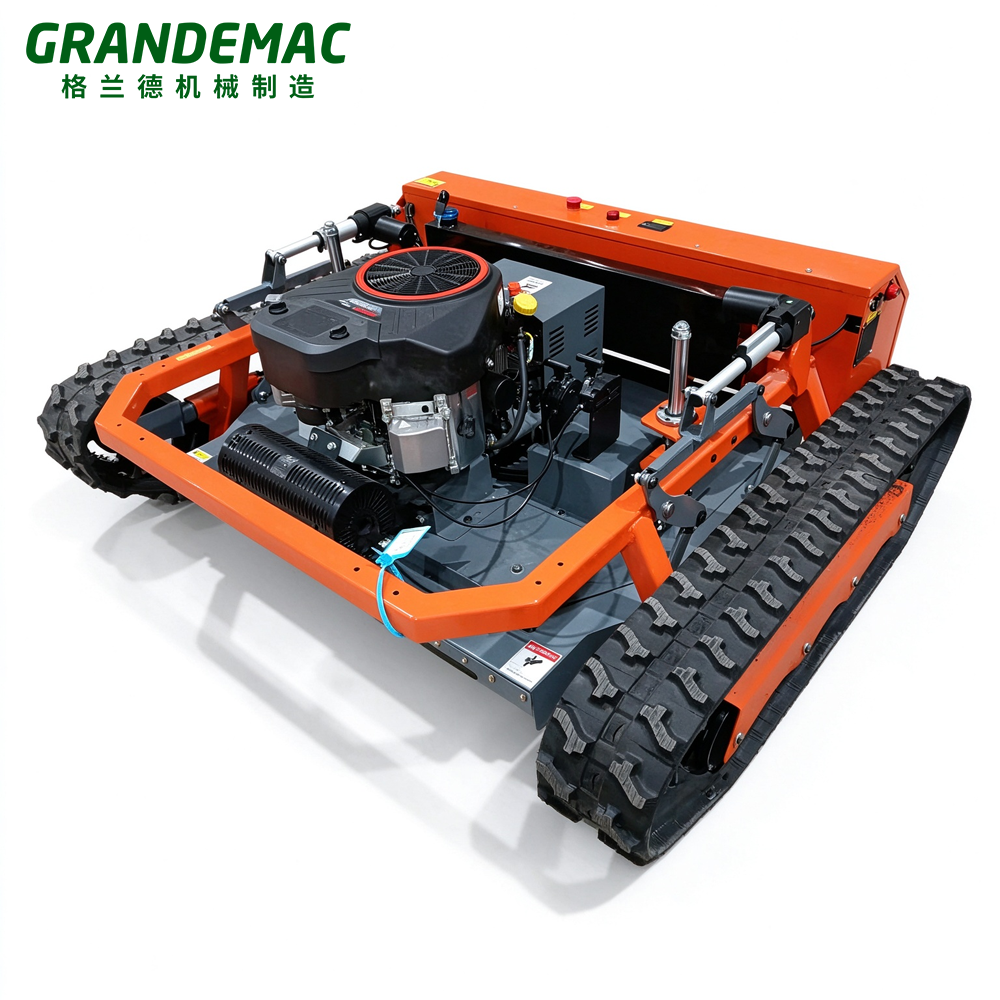

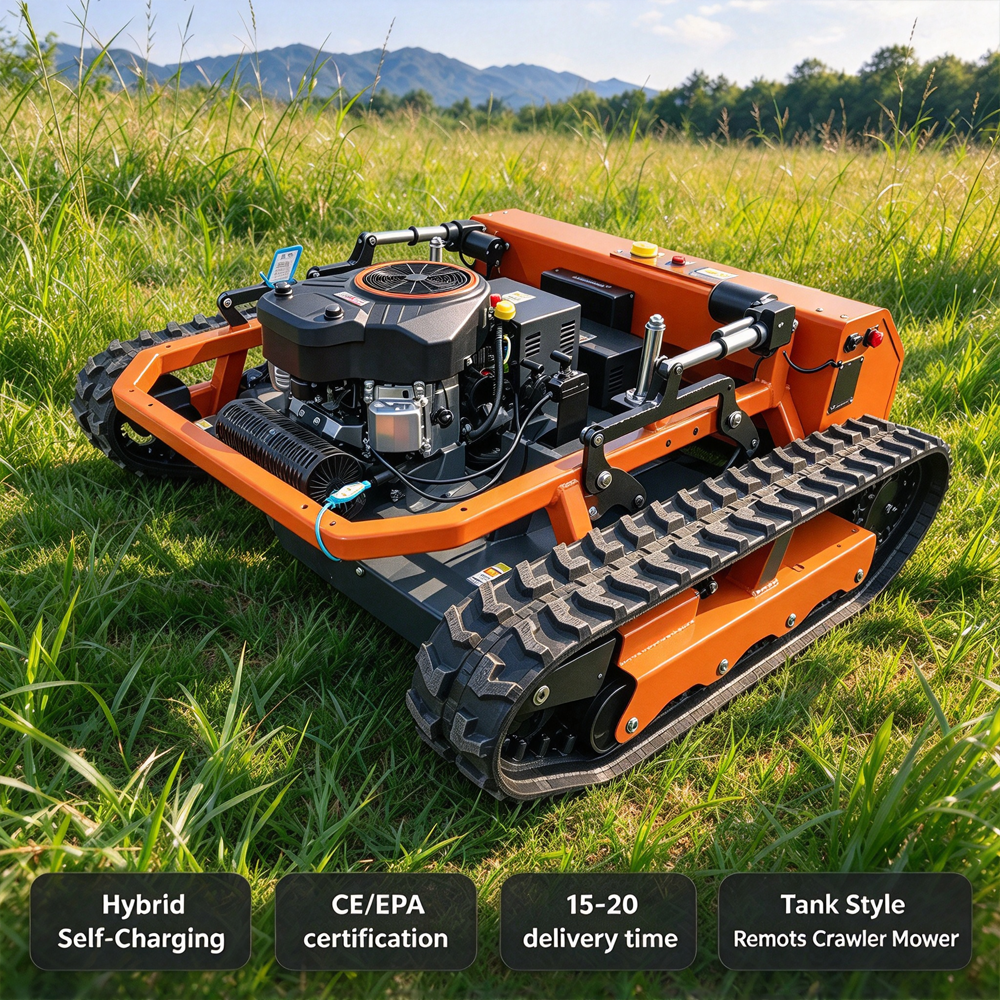

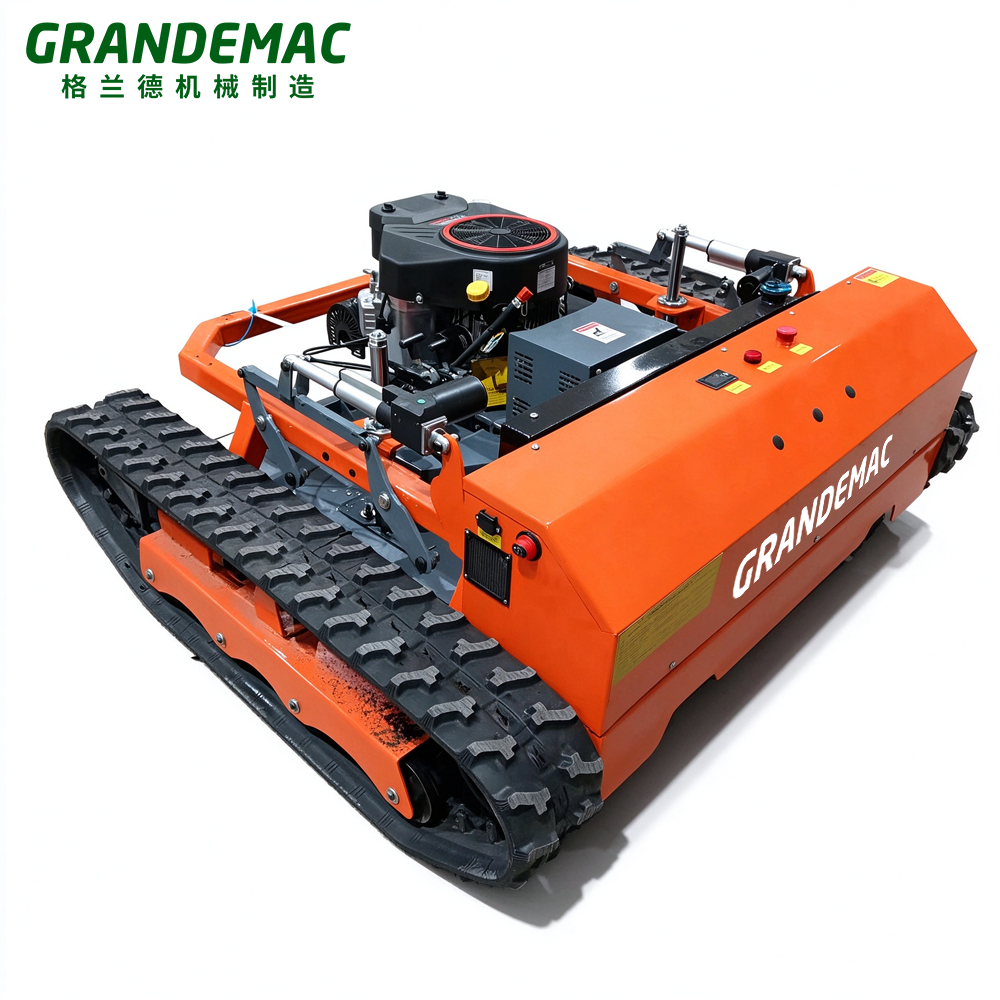

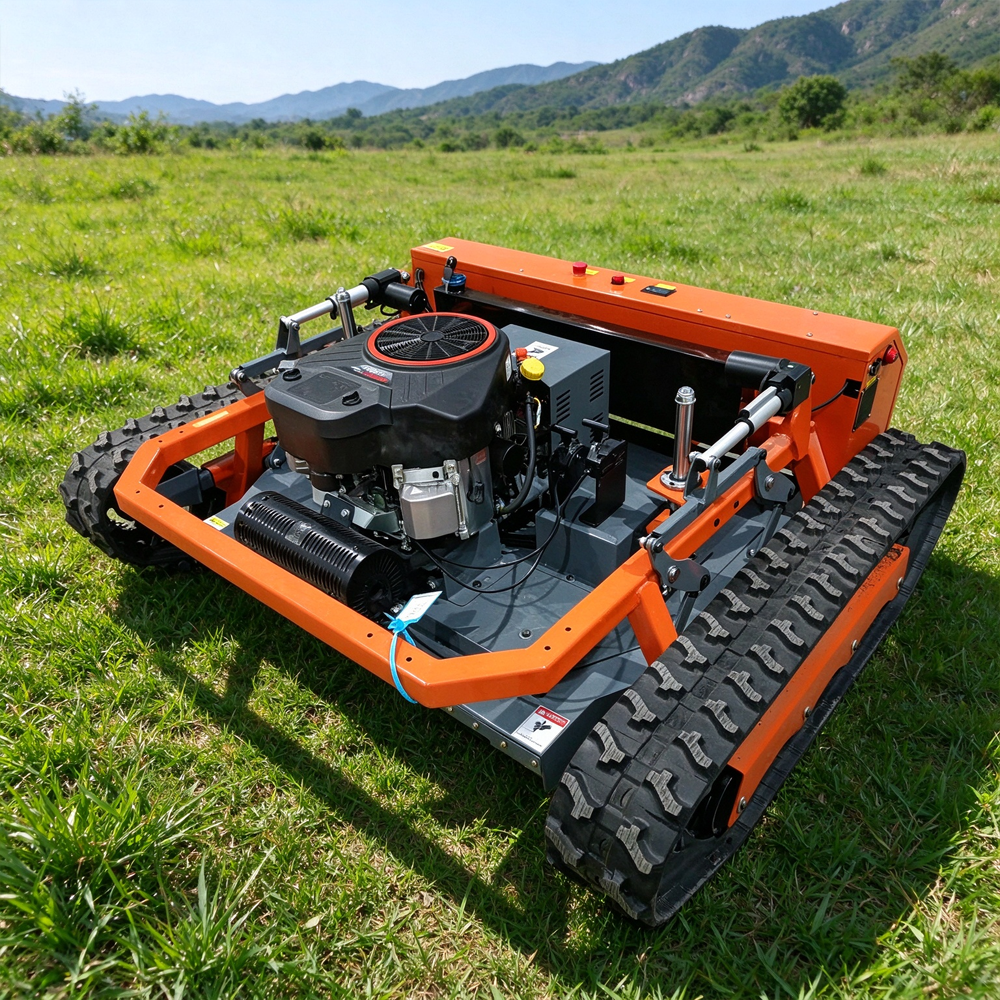

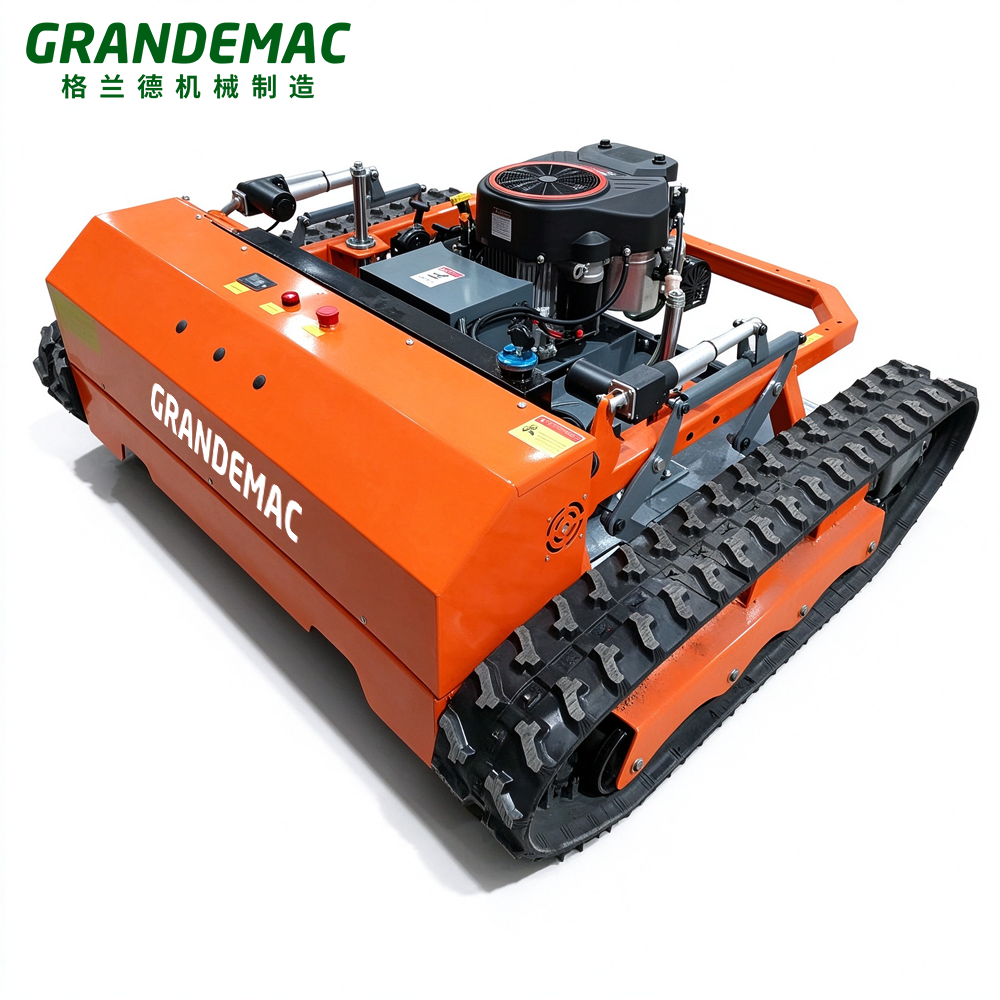

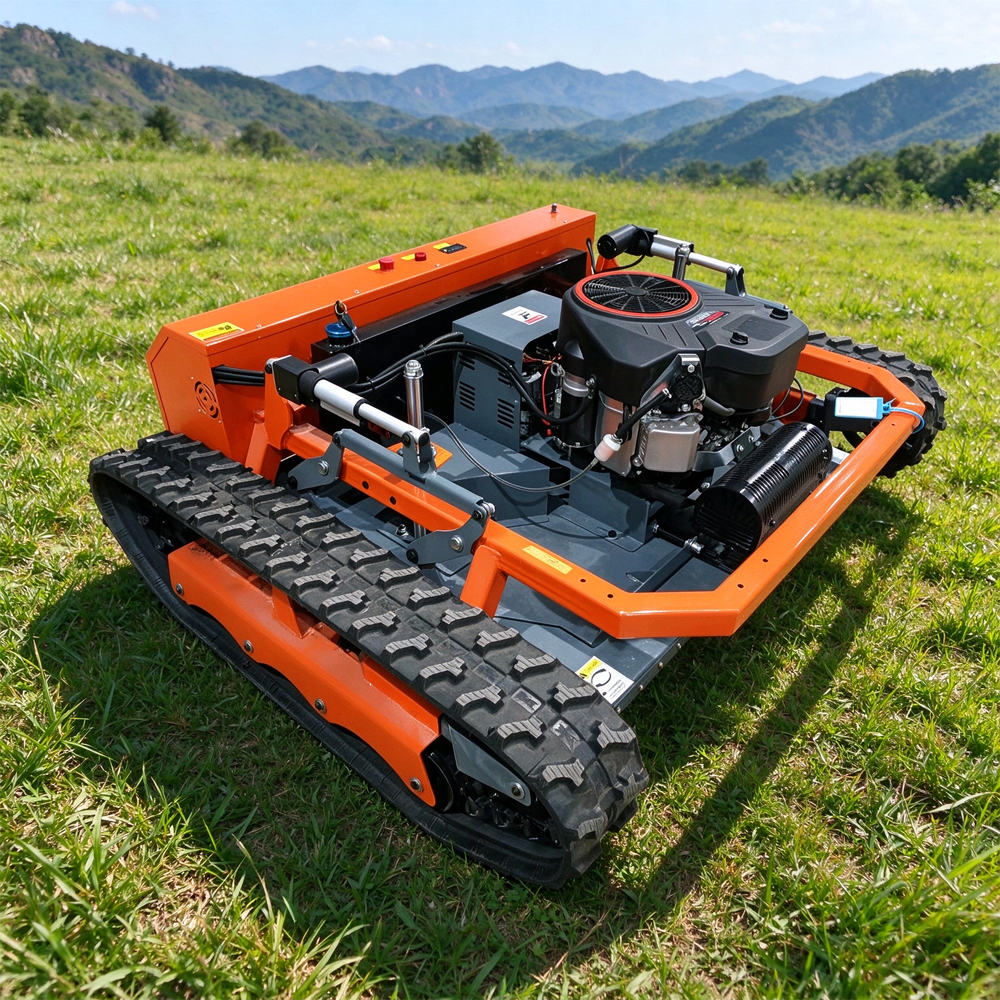

This hybrid gas-electric tracked remote control lawn mower is a heavy-duty all-terrain brush cutter built for steep slopes, orchards, hillsides, riverbanks, farms and complex green belts. Powered by a Loncin 608 four-stroke gasoline engine with dual power generation system, paired with split dual drive motors and widened engineering rubber tracks, it can climb slopes up to 60 degrees safely.
Equipped with a 1200mm double-blade cutting deck, cutting height is electrically adjustable from 1cm to 20cm. Operate remotely from up to 500 meters away, away from steep, slippery and dangerous working areas. The built-in 2500W self-generator continuously supplies power for drive system and electric height adjustment. High working efficiency up to 7200 m² per hour, ideal for commercial landscaping contractors, orchard owners, farm maintenance and municipal greening projects.

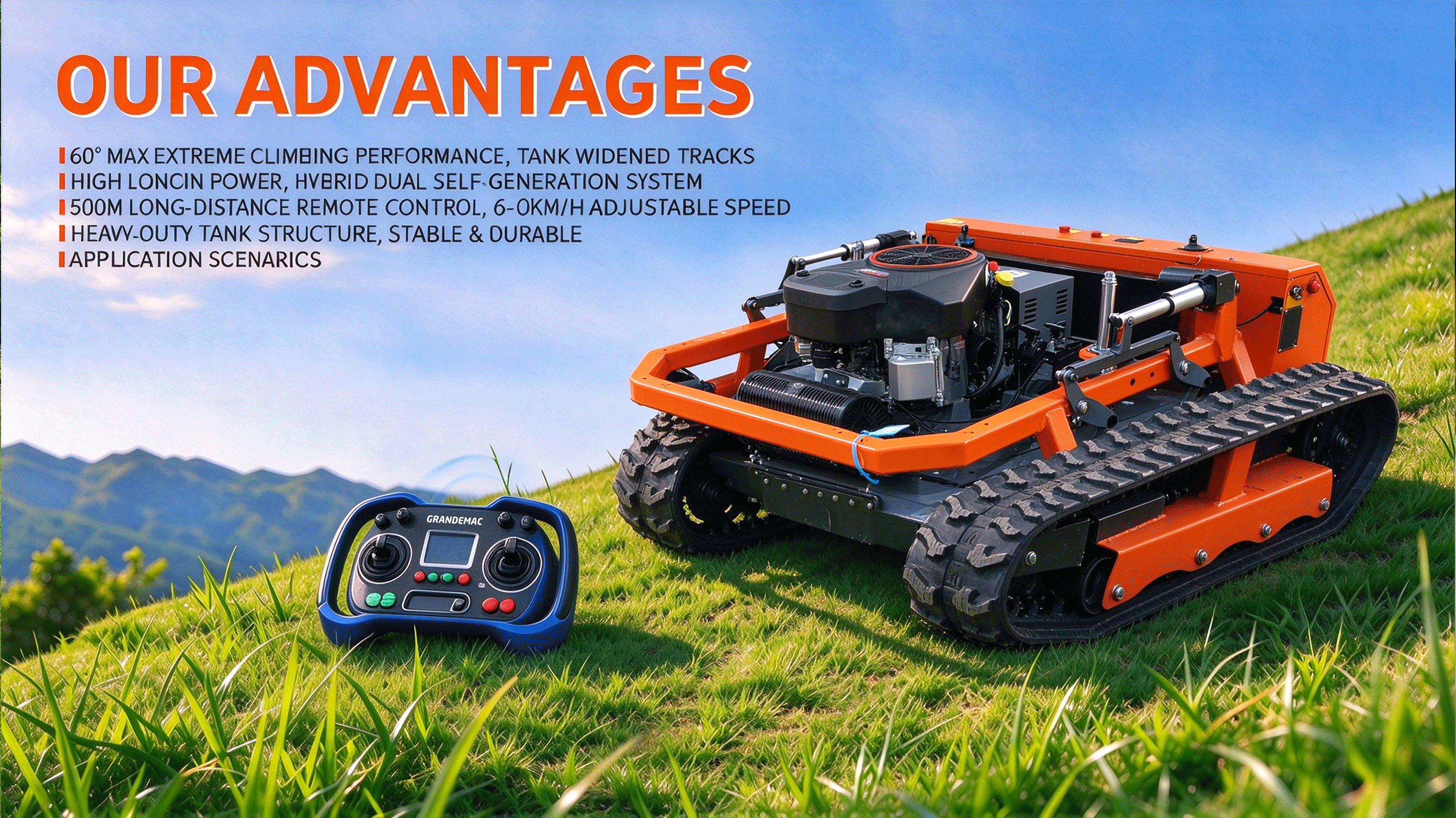

✅ Gas-Electric Hybrid Dual Generation SystemLoncin 608 four-stroke gasoline engine, optional 22/25/27 HP. Built-in 2500W generator, no frequent battery charging trouble, stable continuous operation.
✅ 1200mm Double Blade Cutting Deck, Electric Height AdjustmentCutting width 1200mm. Cutting height adjustable electrically between 1–20 cm, quick switch for different grass conditions. High mowing efficiency up to 7200 m²/h.
✅ 41 Widened Engineering Rubber Tracks, 60° Max ClimbingWide anti-slip crawler design, low center of gravity, excellent traction. Safely work on steep slopes, muddy ground, uneven hillsides where walk-behind mowers cannot reach.

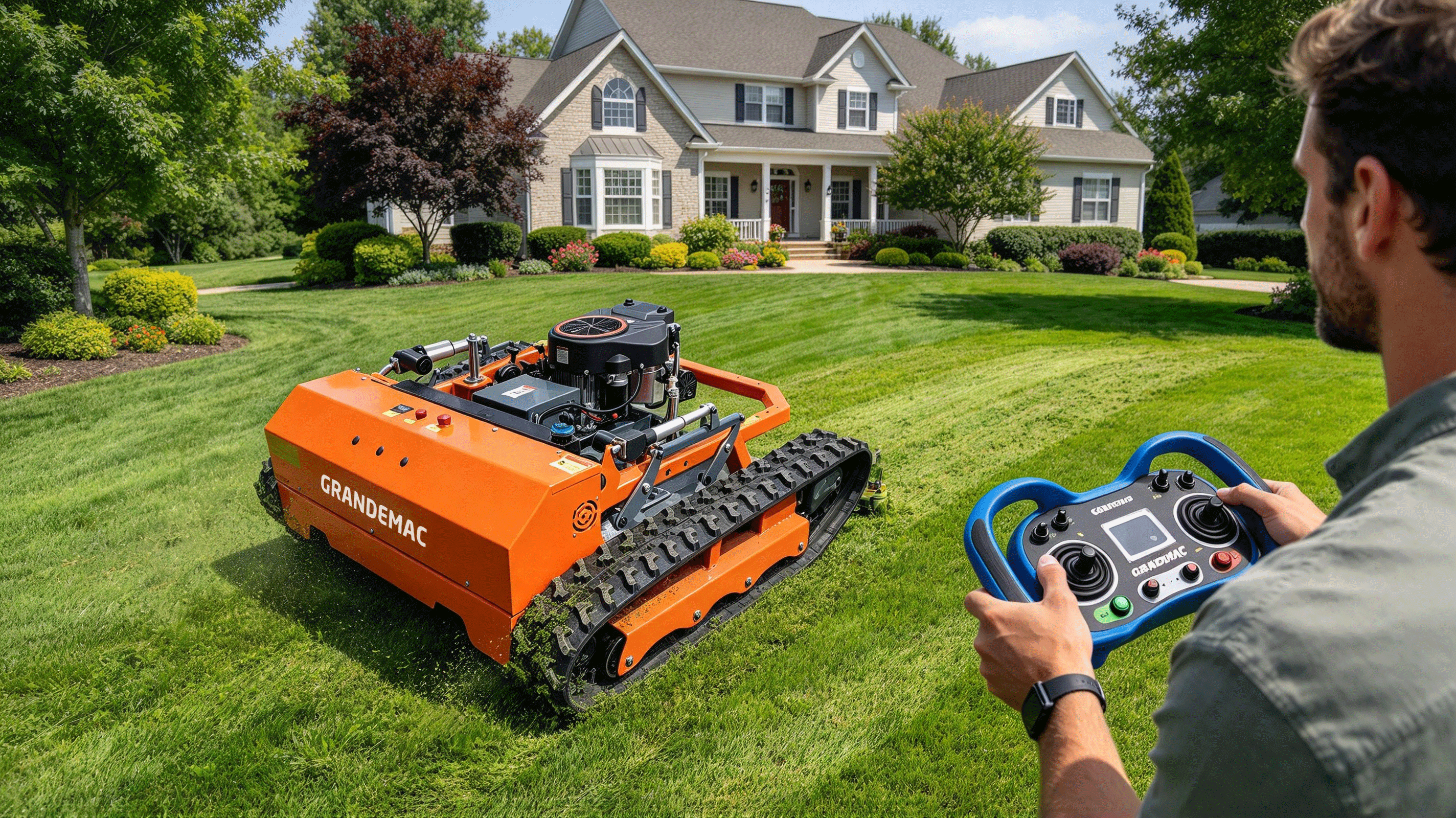

✅ 500 Meters Long-Distance Remote ControlWireless remote control with high/low speed adjustment. Keep operators far from dangerous slopes, thorns and flying debris; greatly reduce safety risks.
✅ Split Dual Drive Power SystemDual 1000W split gearbox drive, flexible turning, strong power output, stable performance on rugged terrain.
✅ Complete Power Matching PackageComes with 2 pcs 20.5A 24V drive batteries plus 1 starter battery, electric start for easy ignition.
✅ Heavy-duty & Low MaintenanceRobust welded frame structure, reliable power assembly. Widely used for orchards, vineyards, hillside green belts, river slope vegetation management and farmland weeding.
✅ Hillside & steep embankment：Mow steep slopes, river banks, highway and railway side slopes ✅ Orchard & vineyard：Fruit orchards, vineyards, tea plantations, forest farms ✅ Municipal greening：Park green belts, scenic zones, reservoir protective slopes ✅ Farm & pasture：Pasture weeding, farmland boundary vegetation trimming ✅ Complex rugged terrain：Uneven wasteland, rocky land, swampy soft ground where manual & walk-behind mowers are hard to work
Technical Parameters
| Item | Specification |
|---|---|
| Cutting Width | 1200mm (Double Blades) |
| Cutting Height | 1cm–20cm (Electric Adjustment) |
| Power Type | Hybrid Fuel-Electric, Manual Throttle, Dual Power Generation |
| Engine Power | 22 / 25 / 27 HP, Gasoline |
| Engine Brand | Loncin 608 Four-Stroke |
| Built-in Generator | 2500W |
| Drive Power | 1000W * 2 Split Transmission Gearbox |
| Drive Track | 41 Widened Engineering Rubber Track |
| Built-in Battery | 2 pcs Chaowei 20.5A 24V Battery + 1 pc 20.5A Starter Battery |
| Starting Method | Electric Start |
| Max Climbing Angle | 60 Degrees |
| Remote Control Range | 500m, High & Low Speed Control |
| Travel Speed | 0–6 km/h |
| Working Efficiency | ≤7200 m²/h |
| Fuel Tank Capacity | 12L |
| Engine Oil Capacity | 1.6L / 2.4L |
| Max Fuel Consumption | 5.2L / 6.8L per hour |
| Overall Dimension | 16501730700 mm |
| Net Weight | 370 kg |
| Package Size | 17001820880 mm |
| Gross Weight (With Package) | 470 kg |
Using GuideCheck fuel level, engine oil level and battery connection before startup.
Inspect rubber tracks, blades and transmission parts for damage or loose fasteners.
Confirm the remote controller battery is fully charged and signal connects normally.
Keep the working area clear of stones, branches, wires and obstacles.
Turn on the remote control power first, then turn on the machine main switch.
Press the electric start button to start the Loncin four-stroke engine.
Let the engine idle for 2–3 minutes for warm-up.
Adjust cutting height electrically to your target height (1–20cm).
Test forward, backward, turning and high/low speed function on flat ground before slope work.
Keep stable speed; avoid sharp turning at high speed especially on slopes.
Work along the contour line on steep slopes, do not operate vertically up and down extreme slopes.
Max climbing angle: 60°, do NOT exceed the limit.
If grass is too thick, reduce travel speed or make repeated passes.
Stop immediately if abnormal vibration, strange noise or loss of signal occurs.
Move the machine to flat ground, idle the engine for 1 minute.
Cut off the throttle and shut down the engine.
Turn off machine power and remote controller power.
Clean grass debris on tracks, blade deck and radiator after each use.
Check blade sharpness, track tension and battery status regularly.
Store in dry, ventilated place; drain fuel if long-term storage.
Operator must stay outside the slope danger zone within 500m remote range.
Do not work near people, livestock or buildings when blades are rotating.
Wear protective glasses and ear protection when operating.
Never touch rotating blades.
Do not use in rainy, wet and thunderstorm weather.
Q1: What is the maximum slope this crawler mower can handle?
A1: Max climbing capacity is 60 degrees. We suggest operating along the slope contour for better safety. Do not exceed the rated angle.
Q2: How far can the remote control reach?
A2: Standard remote control distance is 500 meters in open areas. Obstacles like thick trees will shorten the signal range.
Q3: Can I adjust the grass cutting height?
A3: Yes. Cutting height is electrically adjustable from 1 cm to 20 cm.
Q4: What engine is equipped on this machine?
A4: Loncin 608 four-stroke gasoline engine, optional 22HP / 25HP / 27HP. It adopts hybrid fuel-electric dual generation system with built-in 2500W generator.
Q5: Is it suitable for orchard, vineyard and river bank slope?
A5: Absolutely. It is widely used for hillside, orchard, farm, green belt, river embankment and complex terrain where walk-behind mowers cannot work safely.
Q6: What is the working efficiency?
A6: Up to 7200 m² per hour under ideal grass and terrain condition. Actual efficiency depends on grass thickness and land condition.
