FM SERIES
GRANDEMAC
| Quantity: | |
|---|---|
Key Features
3-Blade Cutting System
Equipped with three high-speed blades to ensure efficient cutting and a smooth, uniform finish.
Floating Wheel Design
Multiple front and rear caster wheels allow the mower to follow ground contours, maintaining consistent cutting height and protecting the turf.
Adjustable Cutting Height
Cutting height can be easily adjusted by the support wheels to meet different lawn maintenance requirements.
Heavy-Duty Steel Deck
Strong and durable steel construction provides long service life and reliable performance in continuous operation.
540 RPM PTO Driven
Standard 540 r/min PTO input ensures stable power transmission and easy compatibility with tractors.
3-Point Hitch System
Compatible with standard tractor three-point linkage for quick mounting and convenient operation.

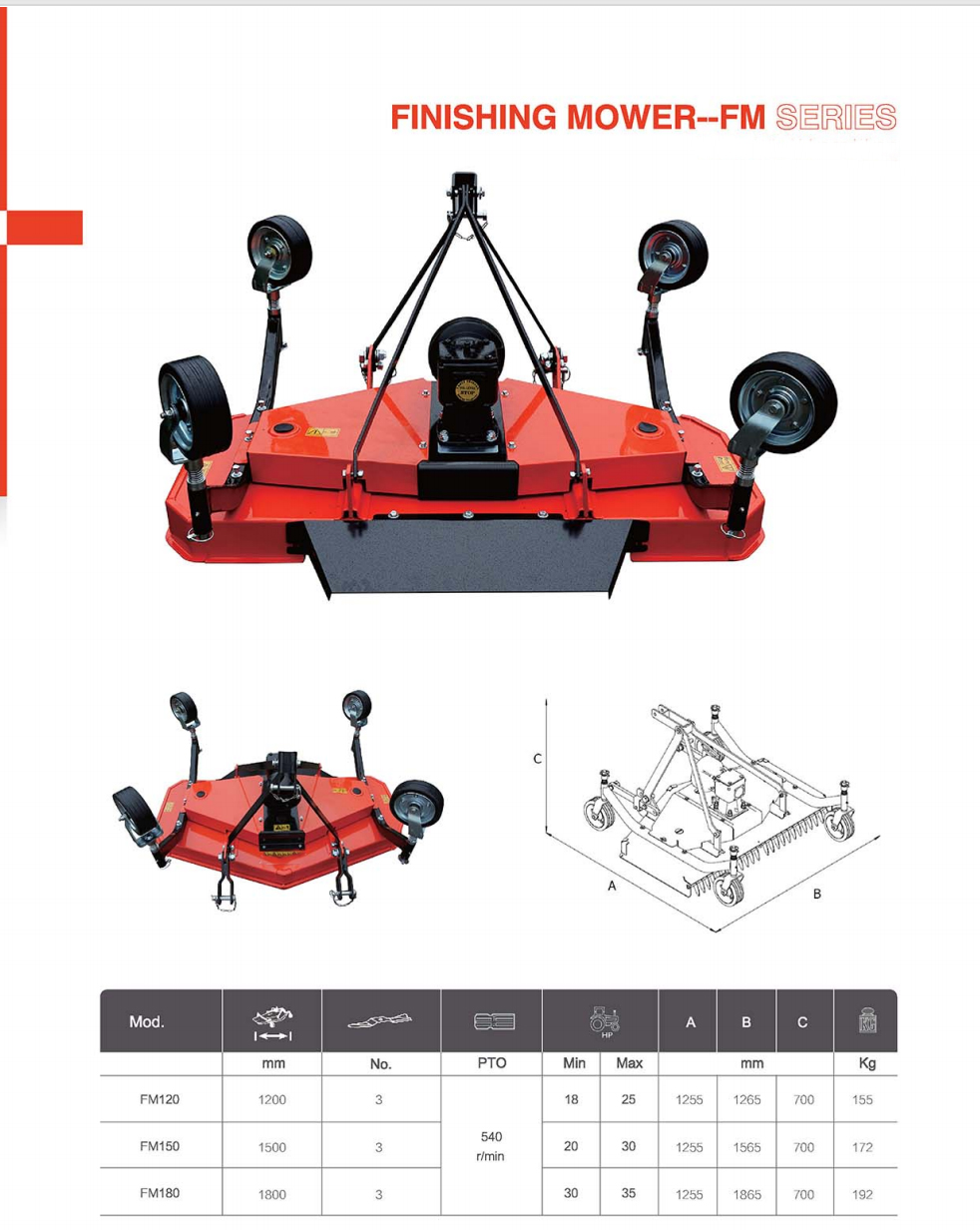

Technical Parameters
| Mod. | Cutting width | Blades | PTO | Tractor | Width | Length | Height | weight | |
| mm | No. | Min | Max | mm | kg | ||||
| FM120 | 1200 | 3 | 540r/min | 18 | 25 | 1255 | 1265 | 700 | 155 |
| FM150 | 1500 | 3 | 20 | 30 | 1255 | 1565 | 700 | 172 | |
| FM180 | 1800 | 3 | 30 | 35 | 1255 | 1865 | 700 | 192 | |
Product Uses
Main application scenarios：
Lawn and turf maintenance
Parks and public green areas
Golf courses
Orchards and farms
Residential and commercial landscaping
Smooth and even cutting performance
Easy operation and low maintenance
Suitable for compact and medium-size tractors
Ideal solution for professional lawn finishing
CE certified, meeting EU machinery safety standards
The 3-blade cutting system ensures fine, consistent grass cutting, leaving a clean and attractive lawn appearance comparable to dedicated turf equipment.
Equipped with multiple floating caster wheels, the mower automatically adapts to uneven terrain, preventing scalping and protecting the turf surface.
A reinforced steel deck and robust drivetrain allow the FM Series to withstand long working hours and demanding outdoor environments.
Standard 3-point hitch and 540 RPM PTO make installation simple and compatible with most compact and utility tractors.
Different working widths
Reinforced blades for heavy grass
Customized color and branding
OEM / ODM available
Looking for a reliable finishing mower for your tractor?
Contact us now for pricing, customization options, and delivery details.
