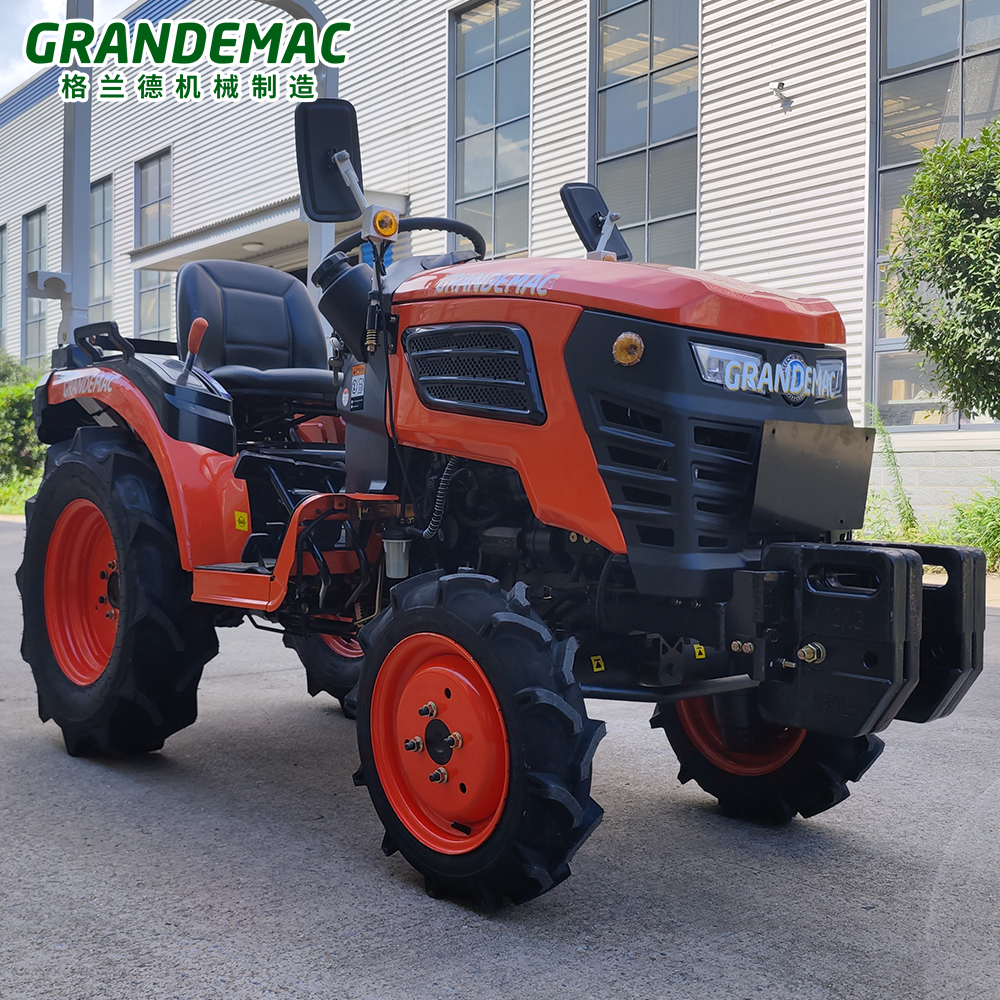

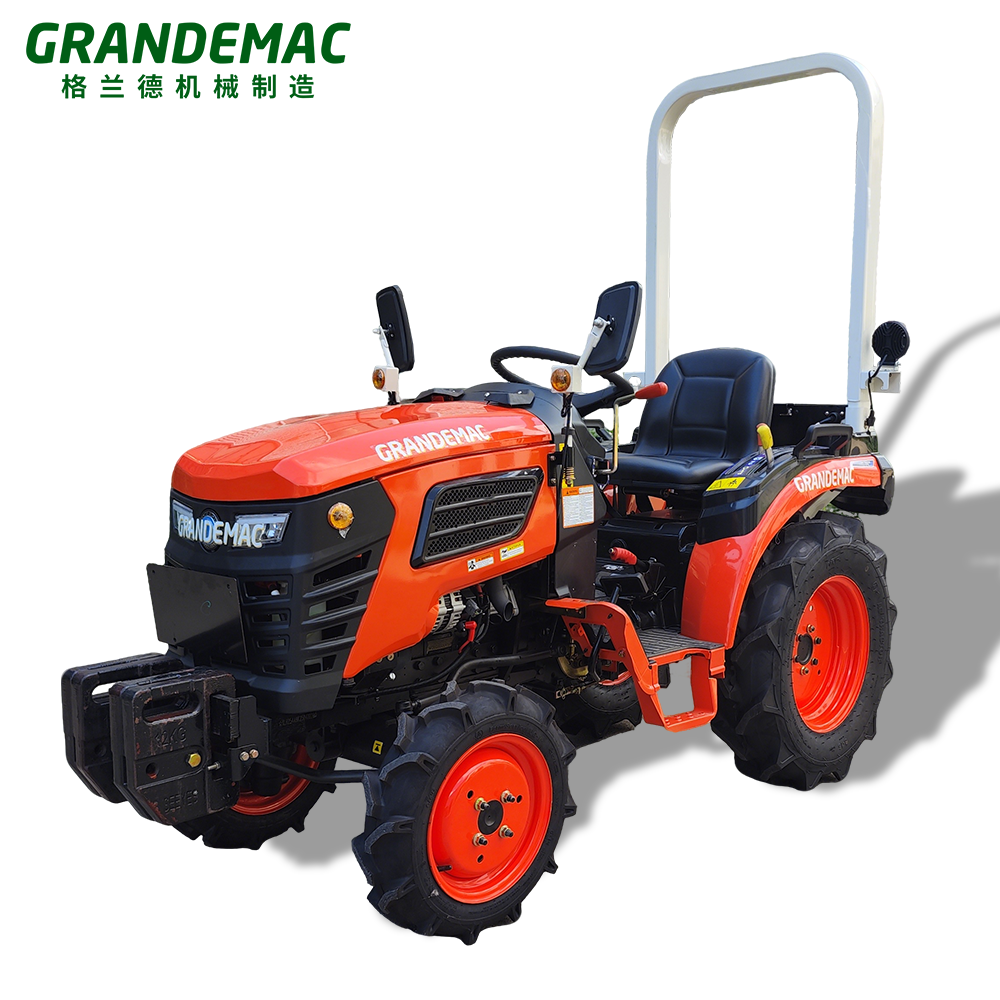

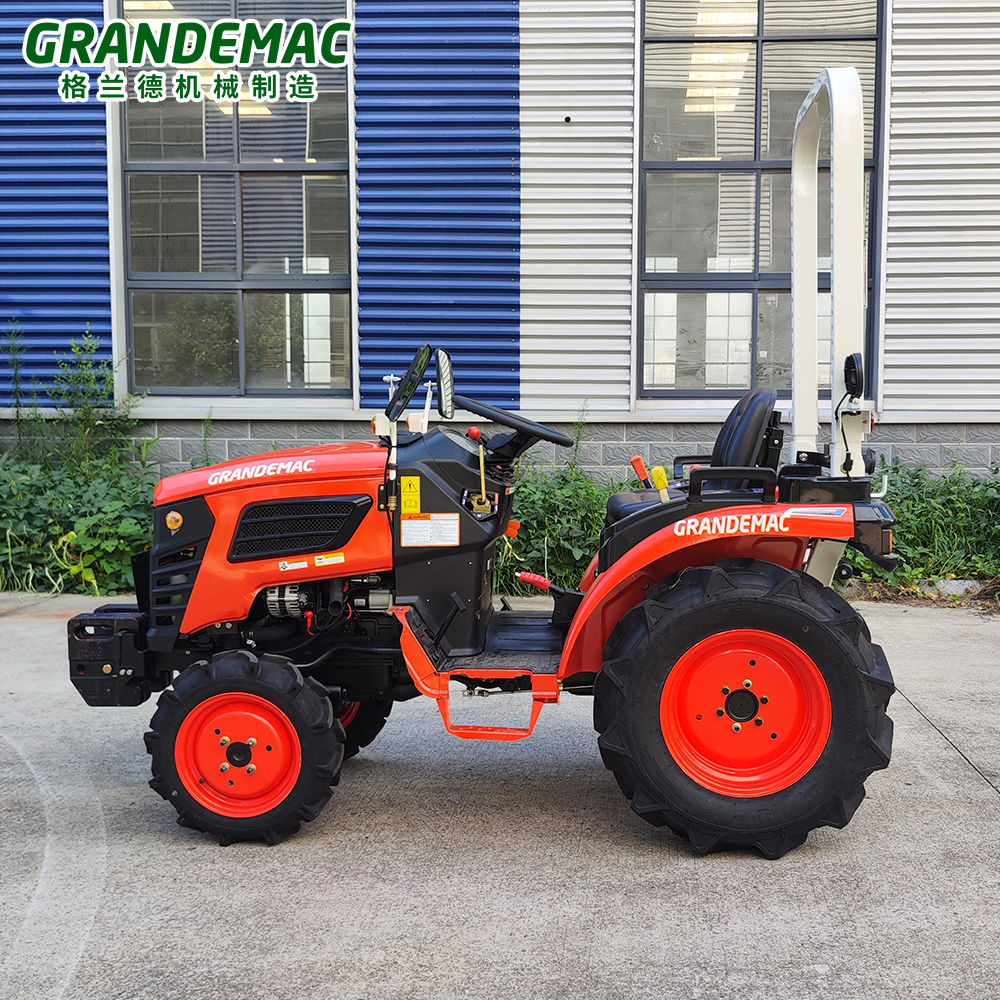

Product Introduction
Our 20-50 horsepower small four-wheel tractors are ideal power machinery for fruit and forest agriculture, featuring compact structure and flexible operation. They are available in three-cylinder and four-cylinder models with six and nine gear options, and can be equipped with counterweights, multi-way valves, and sunshades. They are packaged and transported in iron frames.
These tractors typically adopt a four-wheel drive design, with a wheelbase ranging from 1270-1700mm and adjustable track width (front wheels 900-1200mm, rear wheels 900-1200mm). The minimum ground clearance is over 200mm, making them easily adaptable to inter-row operations in orchards. They are mainly equipped with rotary tillers, trenchers, sprayers, and other agricultural tools to complete tasks such as soil loosening and weeding, trenching and fertilizing, and spraying for pest control.
Product Advantage
Compared to large tractors or micro-tillers, small four-wheel tractors with 20-50 horsepower have unique advantages in fruit and forest environments:
●Size adaptability:
The machine body width is usually around 1.3 meters, which can adapt to most orchard row spacings
The low-profile design (approximately 2 meters in height) is suitable for greenhouse environments and low-growing fruit trees
●Power performance:
Sufficient power to complete common tasks in orchards (such as ditching, rotary tilling, etc.)
The gearbox has a high reduction ratio and ample low-speed torque, making it suitable for heavy-duty operations
●Operational flexibility:
Short wheelbase, small turning radius
Hydraulic steering, effortless operation
Adjustable speed to accommodate different operational needs
●Economic practicality:
The acquisition cost is lower than that of large tractors
Low fuel consumption and moderate maintenance costs
It has strong versatility and can be matched with various agricultural tools
●Terrain adaptability:
The four-wheel drive model is suitable for sloping orchards
Some models can switch to track mode to adapt to wet and soft ground
Technical Parameters
| Model | Parameters (standard configuration) |
| TA204-A6（6 gears）3-cylinder engine | Specification: 2500*970*1807mm Ground clearance: 285mm Minimum operating mass: 684kg Supporting engine: XY377 Rated power: 14.7 kW Emission standard: EURO 5 Front wheel: 5-12; with inner tube, steel hub, and dry land wheel; wheelbase 770 (standard) / 960-1200 (adjustable) mm Rear wheel: 8-16; tubeless, steel rim, dry land; wheelbase 770 (standard) / 960-1200 (adjustable) mm Wheelbase: 1270mm Turning radius: 1200/1700mm Function: hydraulic lifting; double-speed turning; forward PTO output; three-point standard suspension (Category 1N, standard GB/T1593-2015) Vehicle speed: high speed, low speed; reverse, forward 1, forward 2, forward 3 PTO shaft speed: forward 1 is 550r/min; forward 2 is 967r/min |
| TA204-A9（9 gears）3-cylinder engine | Specification: 2550*970*1807mm Ground clearance: 285mm Minimum operating mass: 684kg Supporting engine: XY377 Rated power: 14.7 kW Emission standard: EURO 5 Front wheel: 5-12; with inner tube, steel hub, dry land wheel; wheelbase 770 (standard) / 960-1200 (adjustable) mm Rear wheel: 8-16; tubeless, steel rim, dry land; wheelbase 770 (standard) / 960-1200 (adjustable) mm Wheelbase: 1320mm Turning radius: 1200/1700mm Function: hydraulic lifting; double-speed turning; forward PTO output; three-point standard suspension (Category 1N, standard GB/T1593-2015) Vehicle speed: high speed, medium speed, low speed; reverse, forward 1, forward 2, forward 3 PTO shaft speed: forward 1 is 550r/min; forward 2 is 967r/min |
| TA254-B6（6 gears）4-cylinder engine | Specification: 2585*970*1807mm Ground clearance: 285mm Minimum operating mass: 724kg Supporting engine: XY477 Rated power: 18.5 kW Emission standard: EURO 5 Front wheel: 5-12; with inner tube, steel hub, and dry land wheel; wheelbase 770 (standard) / 960-1200 (adjustable) mm Rear wheel: 8-16; tubeless, steel hub, dry land; wheelbase 770 (standard) / 960-1200 (adjustable) mm Wheelbase: 1355mm Turning radius: 1700mm Function: hydraulic lifting; forward PTO output; three-point standard suspension (Type 1N, standard GB/T1593-2015) Vehicle speed: high speed, low speed; reverse, forward 1, forward 2, forward 3 PTO shaft speed: forward 1 is 550r/min; forward 2 is 967r/min |
| TA254-B9（9 gears）4-cylinder engine | Specification: 2635*970*1807mm Ground clearance: 285mm Minimum operating mass: 724kg Supporting engine: XY477 Rated power: 18.5 kW Emission standard: EURO 5 Front wheel: 5-12; with inner tube, steel hub, and dry land wheel; wheelbase 770 (standard) / 960-1200 (adjustable) mm Rear wheel: 8-16; tubeless, steel rim, dry land; wheelbase 770 (standard) / 960-1200 (adjustable) mm Wheelbase: 1405mm Turning radius: 1700mm Function: hydraulic lifting; forward PTO output; three-point standard suspension (Type 1N, standard GB/T1593-2015) Vehicle speed: high speed, medium speed, low speed; reverse, forward 1, forward 2, forward 3 PTO shaft speed: forward 1 is 550r/min; forward 2 is 967r/min |
Product Operate Guide
•Basic operation skills
Start:
Ensure the gear is in neutral, gradually release the clutch, and lightly step on the accelerator
Starting uphill requires coordination between the clutch, accelerator, and handbrake
Gear shifting:
When plowing, choose the low gear; when driving without a load, choose the high gear
Ensure the clutch is fully disengaged when shifting gears
Turn:
Avoid sharp turns in the orchard
Single-side braking steering is prohibited during high-speed driving. 16
Reverse:
Observe the surroundings and operate slowly
When assembling agricultural tools, pay special attention to the space behind
•Key points of maintenance:
1.Daily inspection:
Oil level (diesel, engine oil, hydraulic oil)
Water level (cooling water)
Tire Pressure
The fastening condition of each connecting part
2.Regular maintenance:
Every 50 hours: clean the diesel tank filter screen and air filter, and replace the engine oil in the filter oil pan
Every 100 hours: clean the air filter and diesel filter, check and adjust the valve clearance
Every 200 hours: clean the oil pan and replace the engine oil; clean the engine oil filter; replace the diesel filter element
3.Winter maintenance:
When the temperature is below 0℃, the cooling water should be drained completely after operation (in the absence of antifreeze)
Do not release water when the water temperature is above 70℃
Product usage scenarios
Small four-wheel tractors with 20-50 horsepower have broad application value in fruit and forest agriculture, mainly reflected in the following aspects:
Orchard management tasks:
Soil loosening and weeding: Equipped with a rotary tiller for soil loosening and weeding between rows in the orchard, improving efficiency
Ditching and fertilizing: A trencher with offset can be used to dig trenches under trees without damaging the roots of the fruit trees
Pesticide spraying for prevention and control: Connect spraying equipment for pest and disease prevention
Transportation operation:
Fruit harvesting and transportation
Transportation of fertilizers and agricultural resources
Orchard waste removal
Work in special environment:
Operation in greenhouse: The low-profile design is suitable for operation in greenhouses with limited height
Mountainous and hilly operations: Four-wheel drive models are suitable for sloping environments
Dual-purpose for water and land: Some models can switch between track and wheel modes to adapt to different terrains
Supporting agricultural tool operation:
rotary tillage
plough fields
seeding
Film covering
Branch crushing, etc
1. who are we?
We are based in Jiangsu, China, start from 2019, sell to Africa(60.00%), South America(30.00%), Domestic Market(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
3. What can you buy from us?
Kubota Rice Combine Harvester, Kubota Tractor, Rotary Cultivator, World Rice Combine Harvester, Rice Transplanters.
4. What's your Payment terms?
30% payment in advance by TT, 70% balance before delivery.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery；
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, Western Union, Cash;
Language Spoken: English, Chinese, Spanish

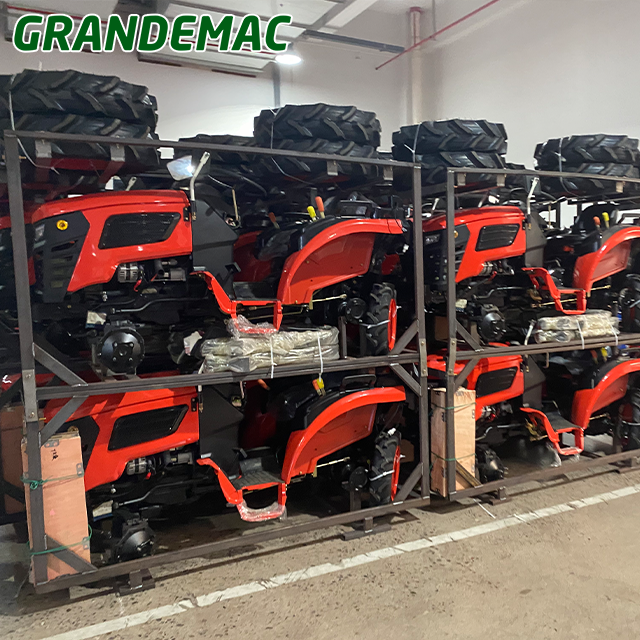

Packing and Delivery
