B4040
GRANDEMAC
Availability: | |
---|---|
Quantity: | |
Product Introduction

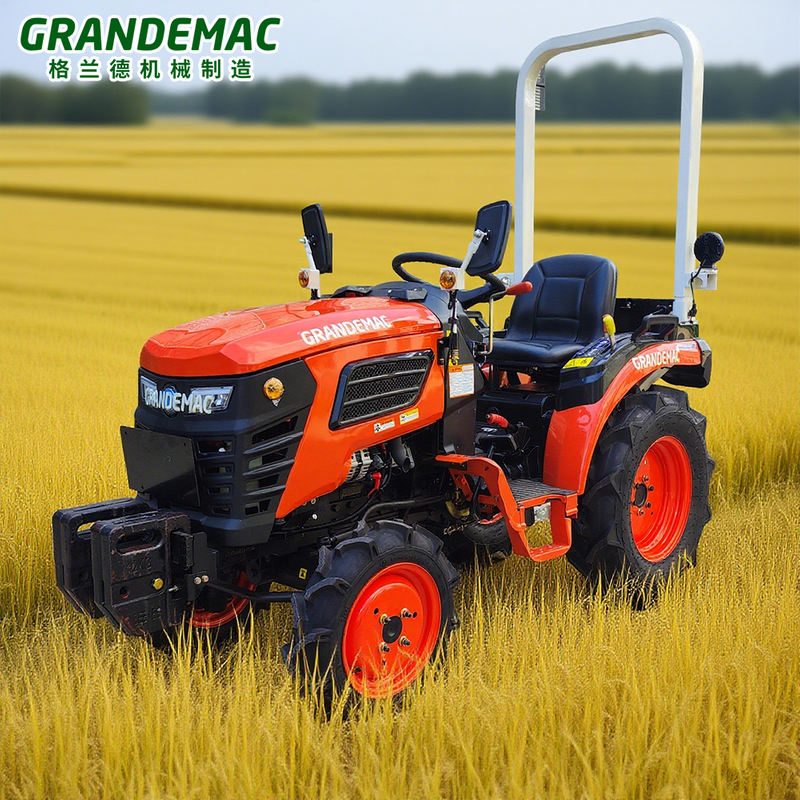

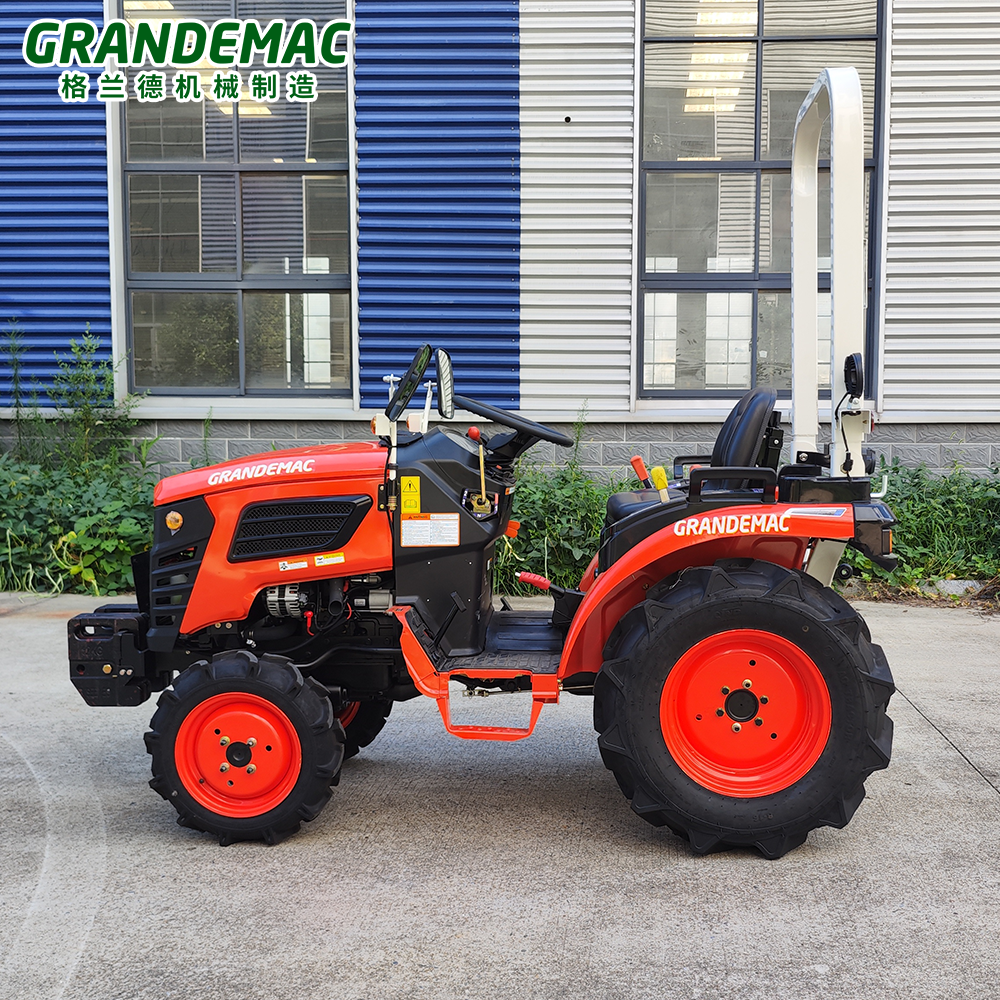

The 40 horsepower orchard tractor is a small and medium-sized specialized orchard machine that balances power and flexibility, designed specifically for narrow environments such as orchards, vineyards, tea gardens, citrus orchards, and greenhouses
Product Advantage
●Strong flexibility:
●Moderate power, suitable for medium-sized orchards:
more efficient than 30 horsepower, but still economical and fuel-efficient.
●Strong passability:
The short design does not harm the branches and allows for flexible movement between tree rows.
●One machine for multiple purposes:
It can be used to complete agricultural tasks throughout the year, saving time and effort.
●Reliable and durable:
simple structure, easy maintenance, and easy procurement of spare parts.
●High cost-effectiveness:
moderate investment.
Technical Parameters
model | B4040 (9th gear) |
Specifications: | 2760*1415*2320mm |
Ground clearance: | 310mm |
Quality: | 684kg |
Supporting engine: | XY477 |
Rated power | 29.6kw |
Emission standards: | Phase Four |
Front wheels: | 7-12; There are inner tubes, steel hubs, and dry wheels; Track width 1000mm |
Rear wheels: | 12.4-16; Tubeless, steel hub, dry wheel; Track width 1065mm |
wheelbase: | 1666mm |
Turning radius: | 2500mm |
Function: | Two/four-wheel drive conversion, hydraulic lifting, PTO output (six key), three-point standard suspension (Class 1N, standard GB/T 1593-2015) |
speed: | High speed, medium speed, low speed; Backward, Forward 1, Forward 2, Forward 3 |
PTO shaft speed: | Output at 750r/min afterwards |
optional | Multi way valve+USD120, without rear counterweight, sunshade+USD135 |
Product Operate Guide
1、 Pre homework inspection
Fuel and oil: Check if there is sufficient diesel and if the oil level is within the normal range.
Cooling system: Check the water level in the water tank to prevent engine overheating.
Hydraulic system: The hydraulic oil is sufficient and there is no oil leakage.
Tires and walking devices: Check tire pressure to ensure there is no damage or looseness.
Hanging agricultural tools: three-point suspension, firmly connected power output shaft (PTO), and complete safety pins.
2、 Startup and Homework
Engine start
Place the gear lever in neutral, press the clutch, and turn the key to start.
Run at idle for 2-3 minutes, wait for the engine temperature to stabilize before starting work.
Driving and gear shifting
Orchard operations generally use low-speed gear, and high-speed gear can be engaged during transportation.
Reduce speed when turning to avoid crushing the roots of fruit trees.
Hydraulic and PTO operation
Operate the hydraulic handle to lift and lower agricultural tools as needed.
Before using the PTO, reduce the speed first and then close the PTO switch to ensure smooth operation of the agricultural machinery.
Key points of the assignment
Keep moving forward at a constant speed and avoid sudden braking or sharp turns.
Pay attention to the height and width of the orchard planting area to avoid damaging the branches and leaves.
When working under high load for a long time, pay attention to observing the engine temperature gauge.
Product usage scenarios
1.Vineyard: equipped with a spray, the medicine is applied evenly to protect the fruit.
2.Citrus orchard/apple orchard: equipped with trenching fertilizer applicator to improve fertilization efficiency.
3.Tea garden: suitable for weeding and transporting tea leaves.
4.Vegetable greenhouse: equipped with rotary tiller, easy to loosen soil.
Supporting agricultural tool operation:

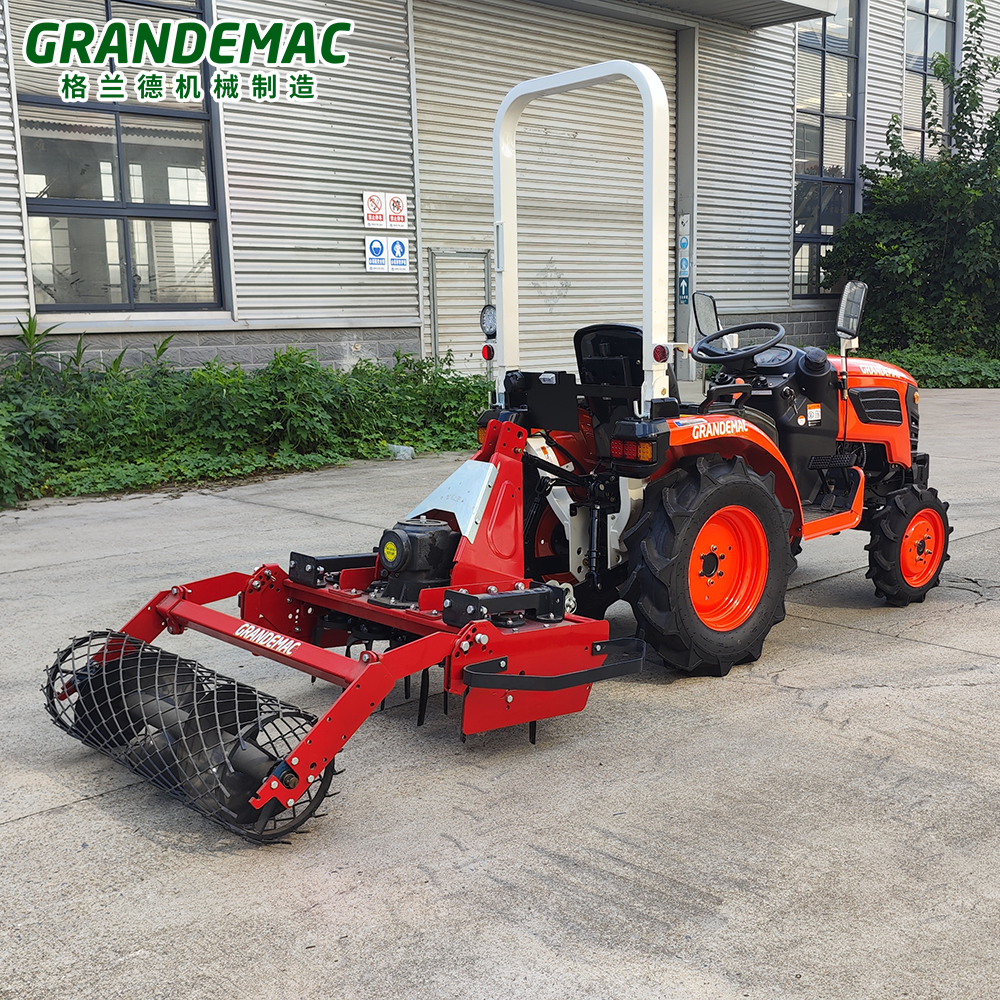

Orchard management: rotary tiller, lawn mower, grass returning machine, orchard spraying machine, trenching and fertilizing machine
Land consolidation: small plows, soil cultivators, and deep loosening machines
Transportation purpose: Supporting agricultural trailers, transporting fruits, agricultural materials, fertilizers
Greenhouse operation: Due to the low height of the machine, it is possible to enter the greenhouse for soil loosening and weeding
1. who are we?
We are based in Jiangsu, China, start from 2019, sell to Africa(60.00%), South America(30.00%), Domestic Market(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
3. What can you buy from us?
Kubota Rice Combine Harvester, Kubota Tractor, Rotary Cultivator, World Rice Combine Harvester, Rice Transplanters.
4. What's your Payment terms?
30% payment in advance by TT, 70% balance before delivery.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery;
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, Western Union, Cash;
Language Spoken: English, Chinese, Spanish
Packing and Delivery
