B5050
GRANDEMAC
| Quantity: | |
|---|---|
Product Introduction

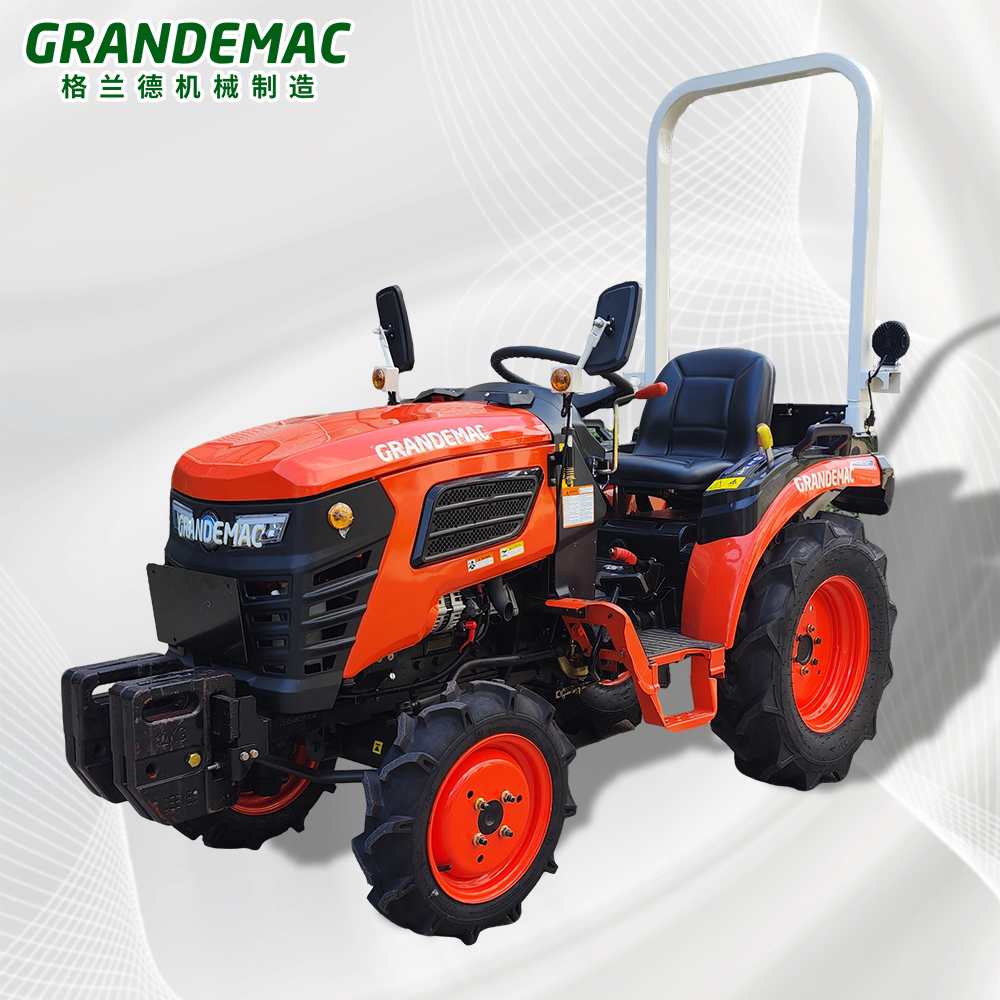

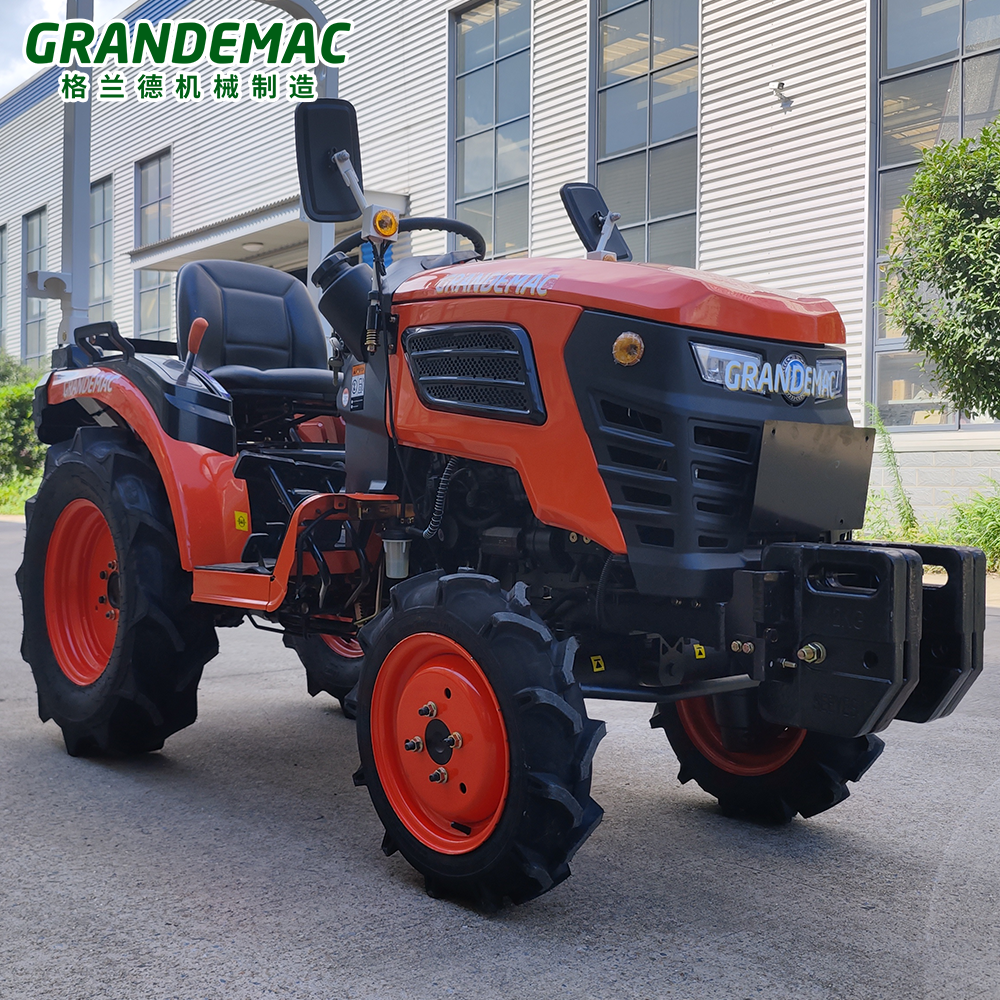

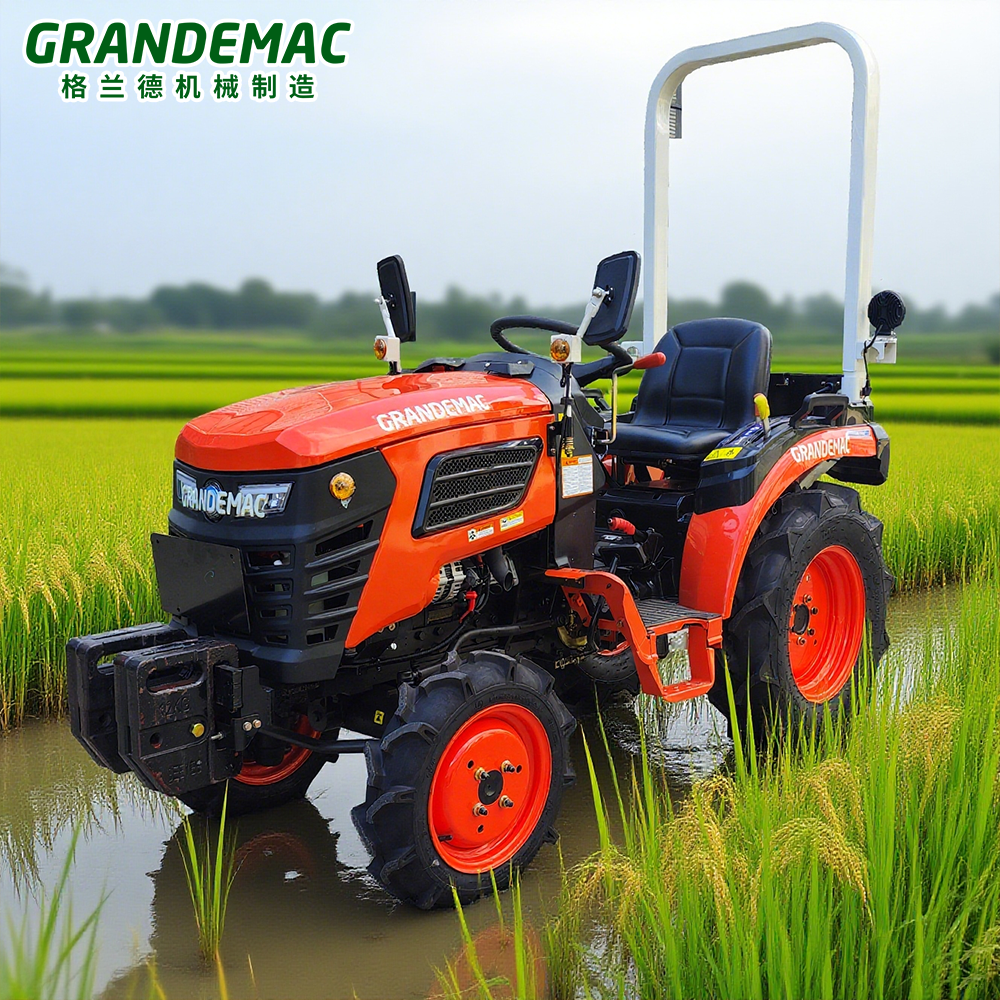

A 50 horsepower small tractor has stronger power and more comprehensive functions, suitable for medium-sized farms and cooperatives, and is an efficient agricultural machinery that balances field and orchard operations.
Product Advantage
●More powerful and efficient:
more suitable for medium-sized farmland and heavy load operations than 30/40 horsepower models.
●Wide adaptability:
It can be used for transportation in fields, orchards, vegetable bases, and livestock farms.
●Economical and durable:
stable structure, reasonable fuel consumption, about 3-4 liters of diesel per hour.
●Multi purpose:
It can be used for agricultural operations and also as a transportation tool, with multiple functions per machine.
High cost-effectiveness:
The general price ranges from 50000 to 90000 RMB (depending on the brand and configuration).
Technical Parameters
| model | B5050 4-cylinder engine |
| Specifications: | 2920*1337*2010mm |
| Ground clearance: | 330mm |
| Quality: | 684kg |
| Supporting engine: | XY484 |
| Rated power | 36.8kw |
| Emission standards: | Phase Four |
| Front wheels: | 7-16； There are inner tubes, steel hubs, and dry wheels; Track width 1020mm |
| Rear wheels: | 11.2-24； Tubeless, steel hub, dry wheel; Track width 1060mm |
| wheelbase: | 1610mm |
| Turning radius: | 2500mm |
| Function: | Two/four-wheel drive conversion, all cast iron reinforced chassis, hydraulic lifting, PTO rear output, three-point standard suspension (Class 1N, standard GB/T 1593-2015) |
| speed: | Backward 1, Backward 2, Backward 3, Backward 4, Forward 1, Forward 2, Forward 3, Forward 4 |
| PTO shaft speed: | 680/890r/min |
| optional | Multi way valve+USD120, without rear counterweight, sunshade+USD135 |
Product Operate Guide
1、 Start the process
Check the oil-water pressure → 2 Neutral start → 3 Idle preheating for 3 minutes
2、 Homework operation
Start: Step on the clutch pedal to the bottom → Shift into first gear → Slowly release the clutch fuel door
Shift: must stop and switch to reverse/four-wheel drive mode
PTO control: Get 20cm off the ground before engaging the power output shaft
3、 Precautions
Slope operation: downshift in advance when going uphill, and neutral gear is strictly prohibited when going downhill
Hydraulic system: Check the sealing every 50 hours
Shutdown steps: Unload load → Idle cooling → Turn off the engine
Product usage scenarios
1.Field growers: used for sowing, rotary tillage, fertilizing, and harvesting wheat, corn, rice, and other crops.
2.Medium to large orchards: digging trenches for fertilization, spraying pesticides, weeding, and transporting fruits.
3.Cooperative/Family Farm: As the main model, it undertakes the main agricultural work throughout the year.
4.Livestock farmers: transport feed, clean up livestock waste
Supporting agricultural tool operation:
Land preparation: rotary tiller, plow, deep loosening machine, trencher
Field management: mower, fertilizer applicator, spray, grass chopper
Sowing and harvesting: small seeders, potato harvesters, straw crushers
Transportation operation: Supporting trailer transportation of agricultural materials and products
1. who are we?
We are based in Jiangsu, China, start from 2019, sell to Africa(60.00%), South America(30.00%), Domestic Market(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
3. What can you buy from us?
Kubota Rice Combine Harvester, Kubota Tractor, Rotary Cultivator, World Rice Combine Harvester, Rice Transplanters.
4. What's your Payment terms?
30% payment in advance by TT, 70% balance before delivery.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery；
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, Western Union, Cash;
Language Spoken: English, Chinese, Spanish
Packing and Delivery
